Dell 3115CN - No Dial Tone

1‑122
Chapter 1 Troubleshooting
Version 2 2007.05.22
FIP-1. 35 Restart Printer 133-232/134-211/134-212/Busy 033-752/
Communication 033-753/033-754/033-755/033-756/033-757/033-758/033-759/
033-760/033-761/034-742/035-706/Codec Error 033-769/033-772/
No Dial Tone 035-749
Regarding a fax error, a communication test is available between the customer and
Dell, thereby allowing you to analyze the trouble.
The communication test can be performed from the customer to the Dell site for
transmission errors, and from the Dell site to the customer for reception errors.
Possible causative parts: PWBA HYUI (PL13.4.1)

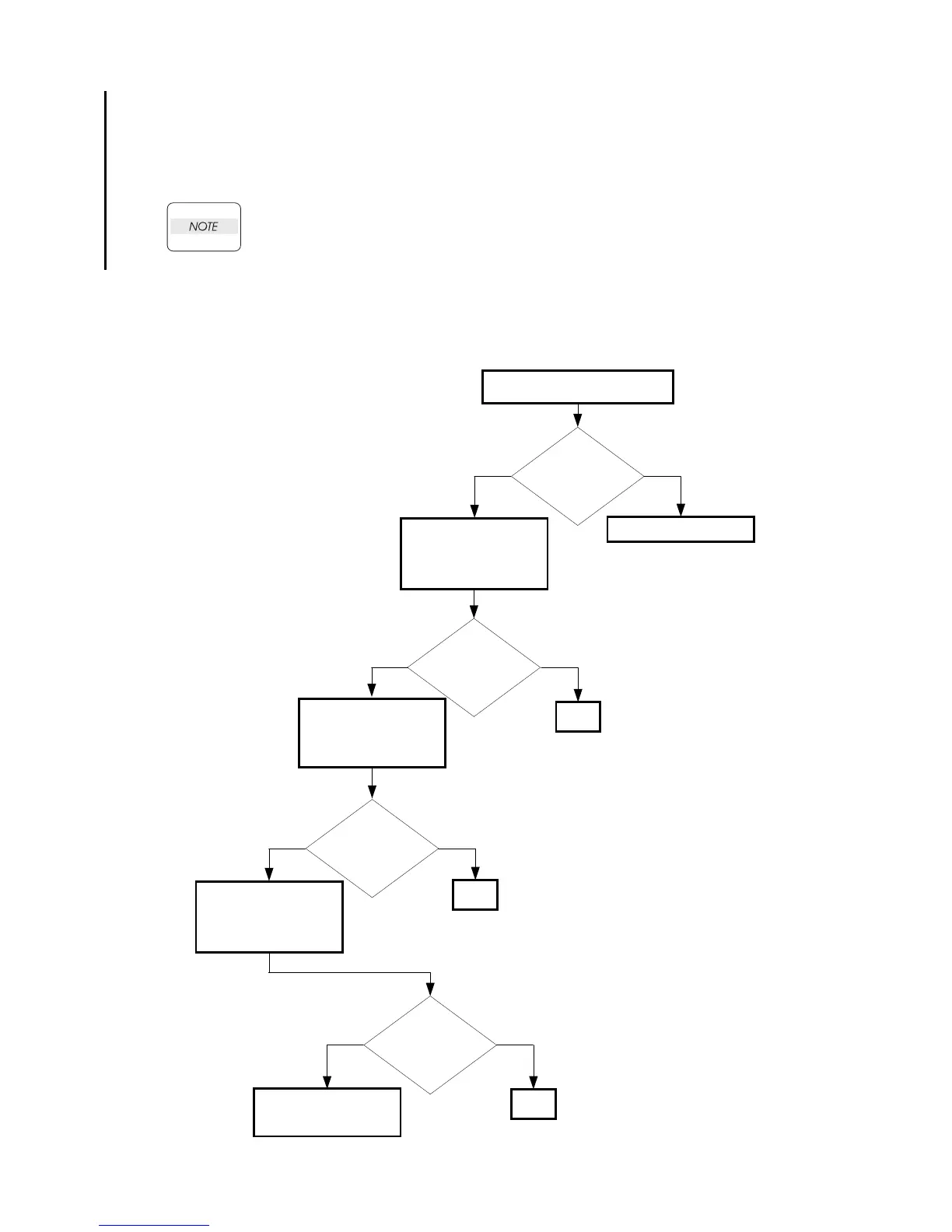

Checking the telephone
line connection
Reseat the telephone line
connector on the PWBA
HYUI.
Does the error still
occur when faxing?
NoYes
Checking the PWBA FAX
installation
Reseat the PWBA FAX on
the PWBA HYUI.
Does the error still
occur when faxing?
NoYes
END
Checking the PWBA HYUI
installation
Reseat the PWBA HYUI.
(Removal64/Replacement
58)
END
Checking the dial data
Check the dial data
Is the dial data
correct?
NoYes
Set the dial data.
Does the error still
occur when faxing?
NoYes
END
Replace the PWBA HYUI.
(Removal64/Replacement
58)
