4.6.4 Grid2

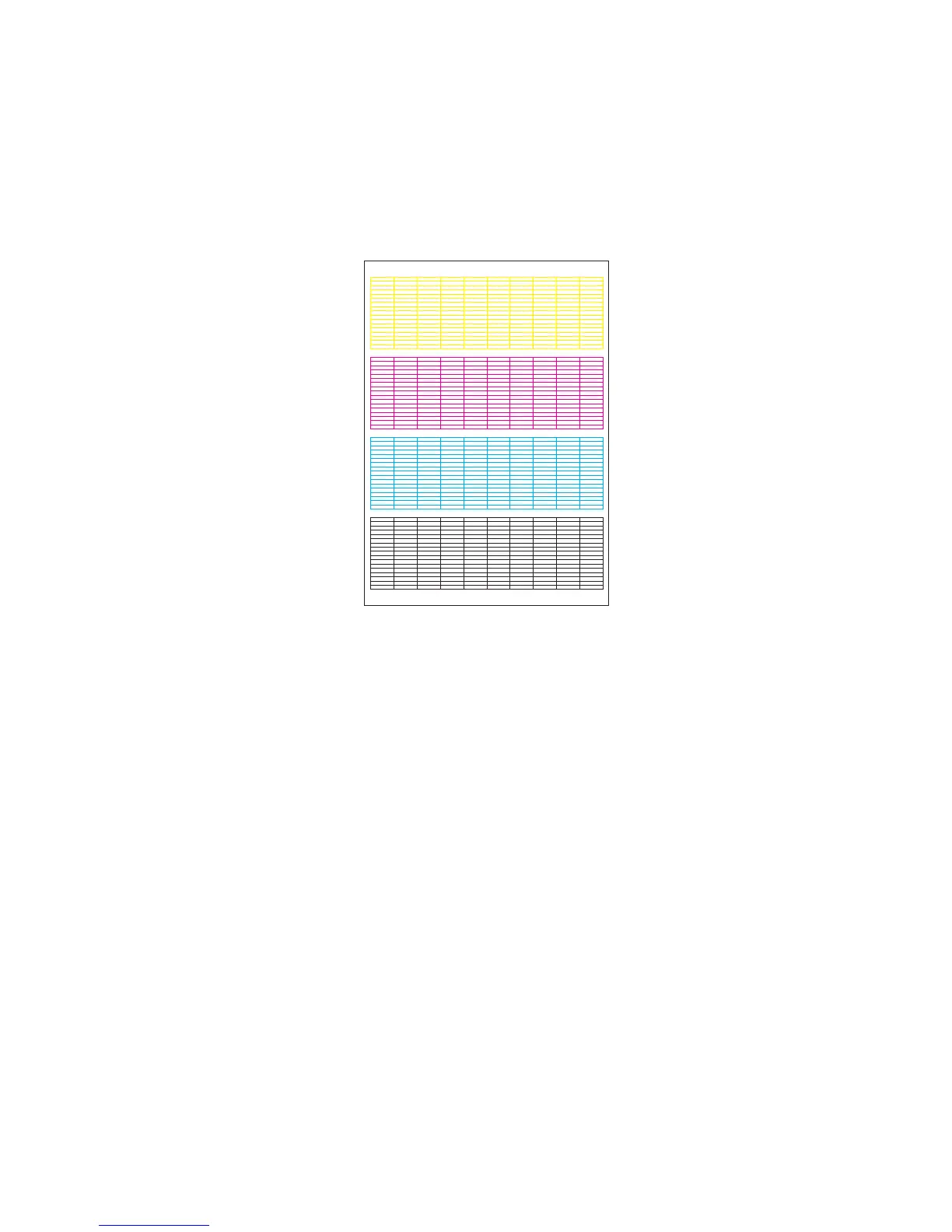

Prints the ESS built-in grid pattern.
When the PQ problem occurred, this test enables to identify the problem as printer-related or oth-
erwise.
Compare the sample chart with the print.
Check result: NG (Check the printing process and PWBA ESS-related.) OK (Check the network,
cable, PC and so on.)
