Dell 3115CN - Adf Separator Spring (Pl13.8.6)

3 - 177
Chapter 3 Removal and Replacement Procedures (RRPs)
Version 1 2006.11.28
Replacement 48 ADF FEED ROLLER (PL13.8.3), ADF SEPARATOR PAD (PL13.8.5),
ADF SEPARATOR SPRING (PL13.8.6)

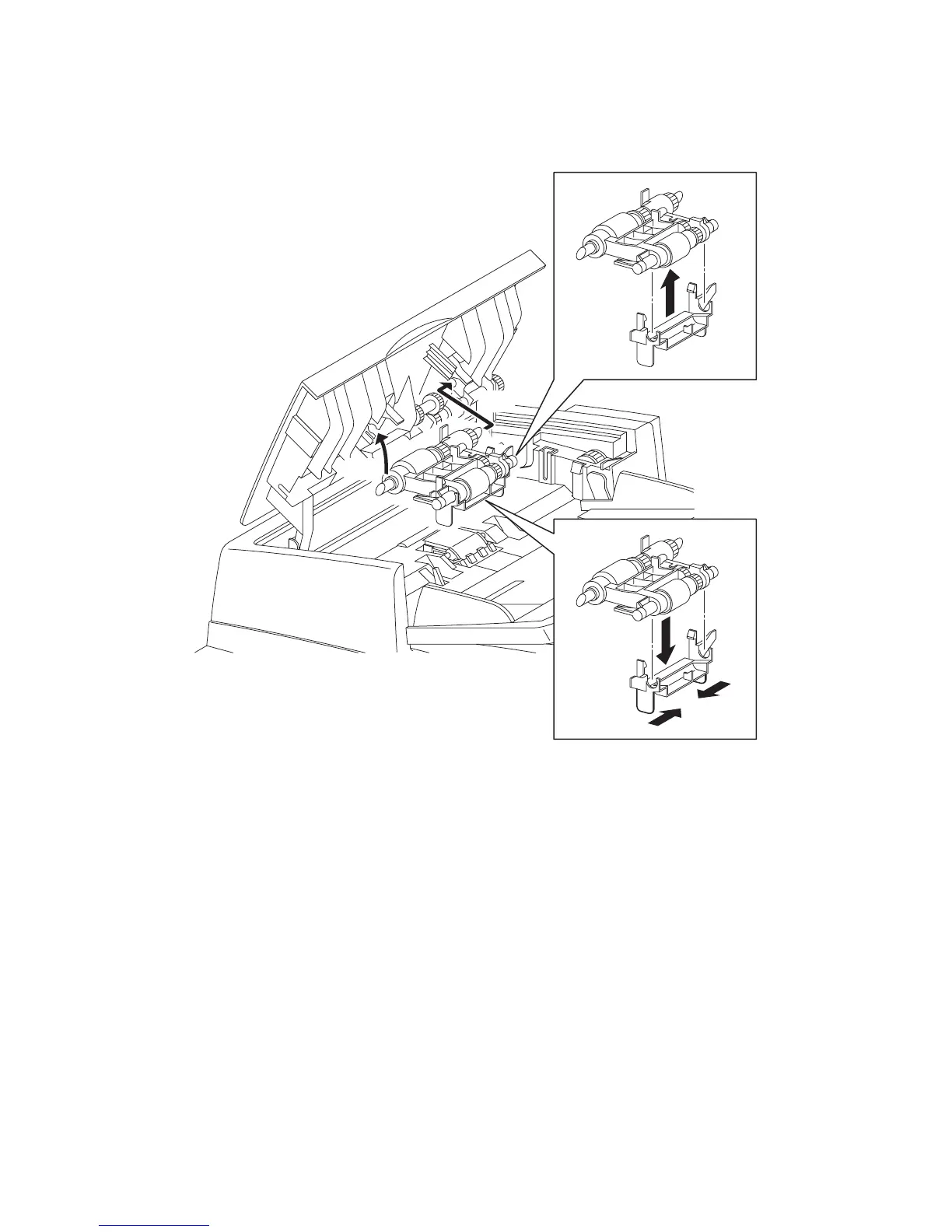

3) Replace the ADF FEED ROLLER HOLDER (PL13.8.4) to the ADF FEED ROLLER.
4) Insert the rear side shaft of the ADF FEED ROLLER into the bearing of the ADF ASSY, and
then insert the front side shaft of the ADF FEED ROLLER into the bearing of the ADF ASSY.
5) Remove the ADF FEED ROLLER HOLDER from the ADF FEED ROLLER by pinching the
front and rear side tabs of the ADF FEED ROLLER HOLDER
6) Close the cover of the ADF ASSY.
Gnb03189KA
4)-1
5)-1
5)-1
5)-2
4)-2
3)
