Dell 3115CN - Removal 72 ADF SCANNER ASSY (PL13.8.1)

3 - 104
Chapter 3 Removal and Replacement Procedures (RRPs)
Version 1 2006.11.28
Removal 72 ADF SCANNER ASSY (PL13.8.1)

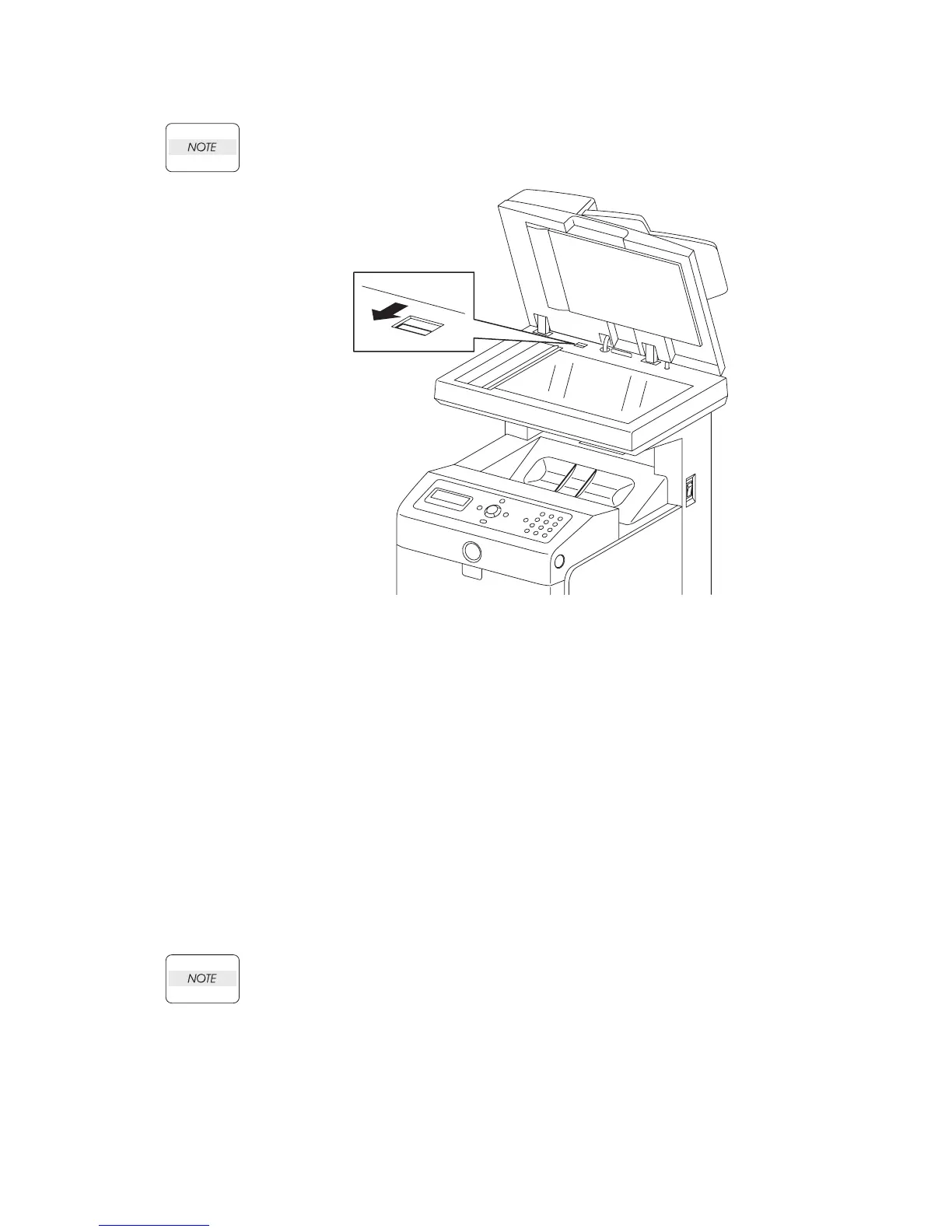

Before removing the ADF SCANNER (PL13.8.1), open the ADF ASSY (PL13.8.2) and
move the carriage locking lever frontward to the locking position.
Steps 1 through 13 are for reference. Before removing this component, check that Steps 1 through 13
have been performed.
1) Open the FRONT COVER (PL13.2.1).
2) Remove the FUSER.(Removal 8)
3) Remove the REAR COVER. (Removal 49)
4) Remove the COVER BOTTOM. (Removal 50)
5) Remove the COVER POLE IN R.(Removal 51)
6) Remove the COVER POLE R.(Removal 52)
7) Remove the RIGHT COVER. (Removal 54)
8) Remove the COVER POLE IN L. (Removal 57)
9) Remove the COVER POLE L. (Removal 58)
10) Remove the LEFT COVER. (Removal 59)
11) Remove the TOP COVER. (Removal 68)
12) Remove the BOX ASSY PRT AIO. (Removal 60)
When performing the step described below, it is not necessary to remove the connector
and harness of the FAN.
13) Remove the FAN. (Removal 71)
Gnb03228KA
