Chapter 3 Removal and Replacement Procedures (RRPs)
Version 2 2007.03.20
Replacement 61 ELECTRONIC SUB-SYSTEM CONTROL BOARD (PL13.4.20)

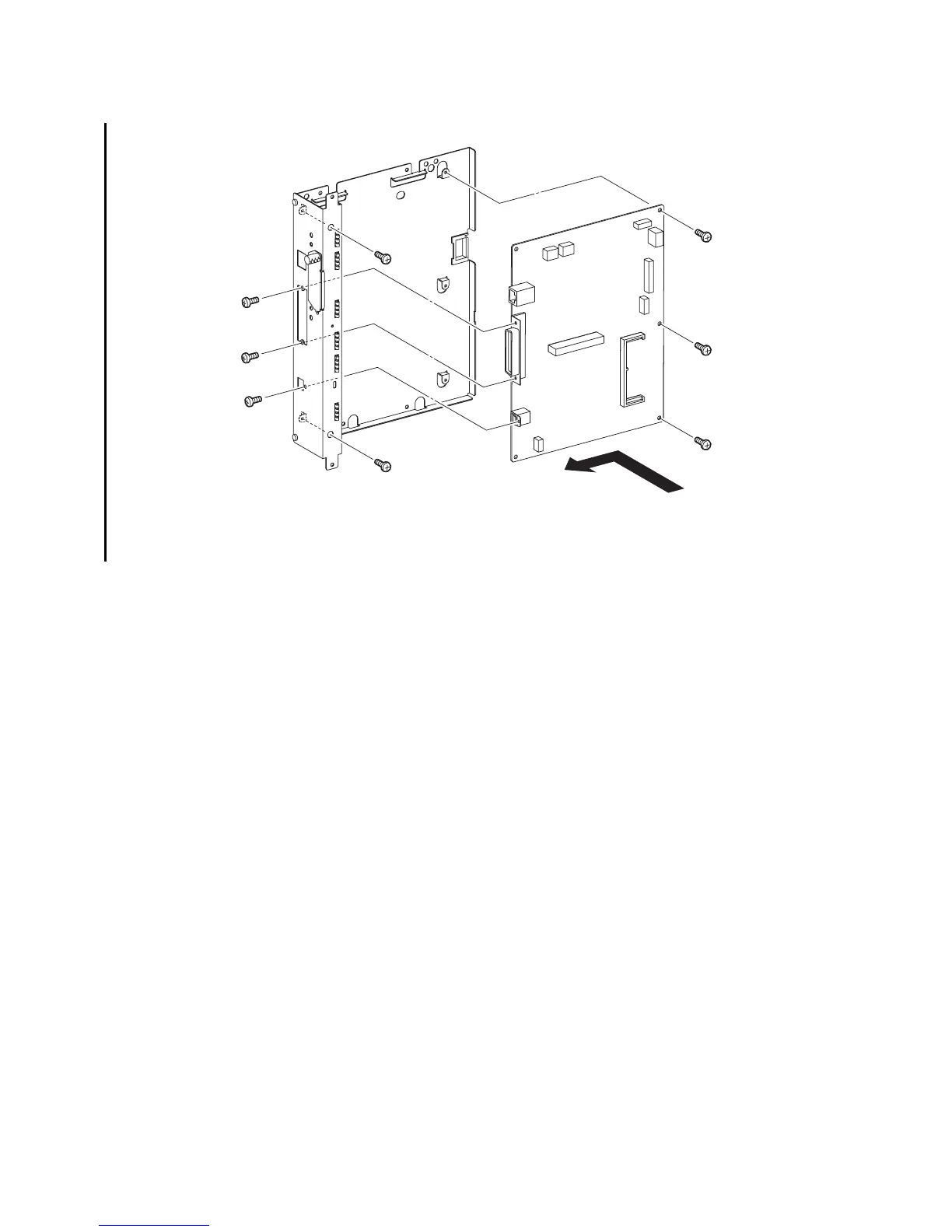

4) Replace the ELECTRONIC SUB-SYSTEM CONTROL BOARD to the BOX ASSY PRT AIO.
5) Secure the ELECTRONIC SUB-SYSTEM CONTROL BOARD to the BOX ASSY PRT AIO
using the five screws (silver, 6mm).
6) Secure the connector section of the ELECTRONIC SUB-SYSTEM CONTROL BOARD to the
BOX ASSY PRT AIO using the three screws (silver, 6mm).
Go to the next replacement step:
Replacement 62 BOX ASSY PRT AIO (PL13.4.13)
Gnb03206KB
6)
6)
6)
5)
5)
5)
5)
5)
4)
