Dell 3115CN - Removal 53 POWER SWITCH (PL13.5.4)

3 - 77
Chapter 3 Removal and Replacement Procedures (RRPs)
Version 1 2006.11.28
Removal 53 POWER SWITCH (PL13.5.4)
Steps 1 through 4 are for reference. Before removing this component, check that Steps 1 through 4
have been performed.
1) Remove the REAR COVER. (Removal 49)
2) Remove the COVER BOTTOM. (Removal 50)
3) Remove the COVER POLE IN R. (Removal 51)
4) Remove the COVER POLE R. (Removal 52)

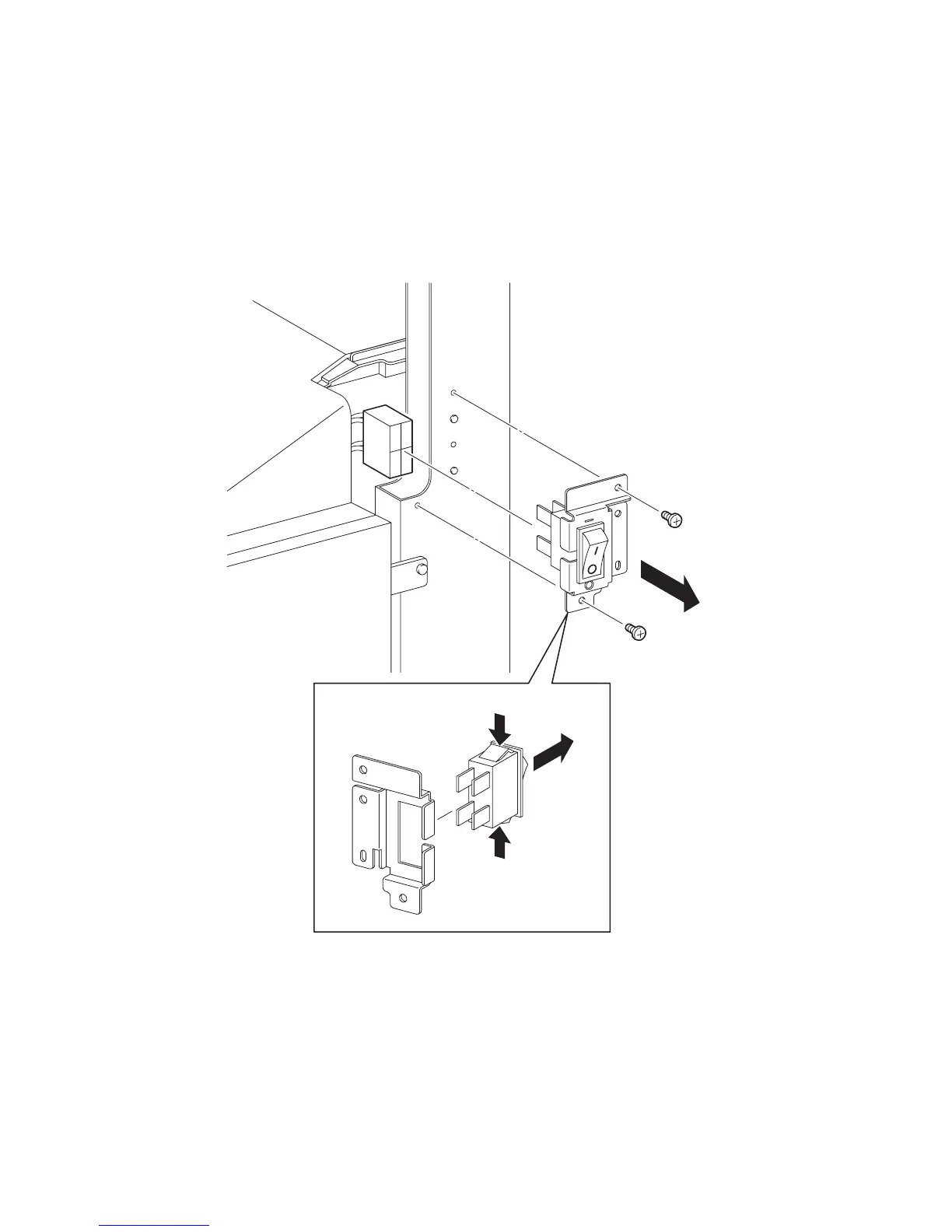

5) Disengage the connector (P/J481) of the POWER SWITCH (PL13.5.4).
6) Remove the two screws (silver, 6mm) that fix the BRACKET MAIN SW (PL13.5.5) to the
printer.
7) Remove the BRACKET MAIN SW from the printer together with the POWER SWITCH.
8) Remove the POWER SWITCH from the BRACKET MAIN SW by releasing the hooks on the
POWER SWITCH.
Gnb03158KA
5)
6)
7)
8)-1
8)-1
8)-2
6)
