Chapter 3 Removal and Replacement Procedures (RRPs)
Version 1 2006.11.28
Removal 70 INTERLOCK SWITCH (PL13.5.3)
Steps 1 through 13 are for reference. Before removing this component, check that Steps 1 through 13
have been performed.
1) Open the FRONT COVER (PL13.2.1).
2) Remove the FUSER.(Removal 8)
3) Remove the REAR COVER. (Removal 49)
4) Remove the COVER BOTTOM. (Removal 50)
5) Remove the COVER POLE IN R.(Removal 51)
6) Remove the COVER POLE R.(Removal 52)
7) Remove the RIGHT COVER. (Removal 54)
8) Remove the COVER POLE IN L. (Removal 57)
9) Remove the COVER POLE L. (Removal 58)
10) Remove the LEFT COVER. (Removal 59)
11) Remove the TOP COVER. (Removal 68)
12) Remove the BOX ASSY PRT AIO. (Removal 60)
13) Remove the BOX ASSY FAX AIO. (Removal 62)
14) Disengage the connector (P/J44) of the INTERLOCK SWITCH (PL13.5.3) from the LOW
VOLTAGE POWER SUPPLY (PL13.5.14).
15) Release the harness of the INTERLOCK SWITCH from the one clamp and pull it out of the
hole on the printer.
16) Remove the harness of the INTERLOCK SWITCH from the DUCT DRV MAIN.
17) Remove the one screw (silver, tap, 16mm) that fixes the INTERLOCK SWITCH to the printer.
18) Remove the INTERLOCK SWITCH.

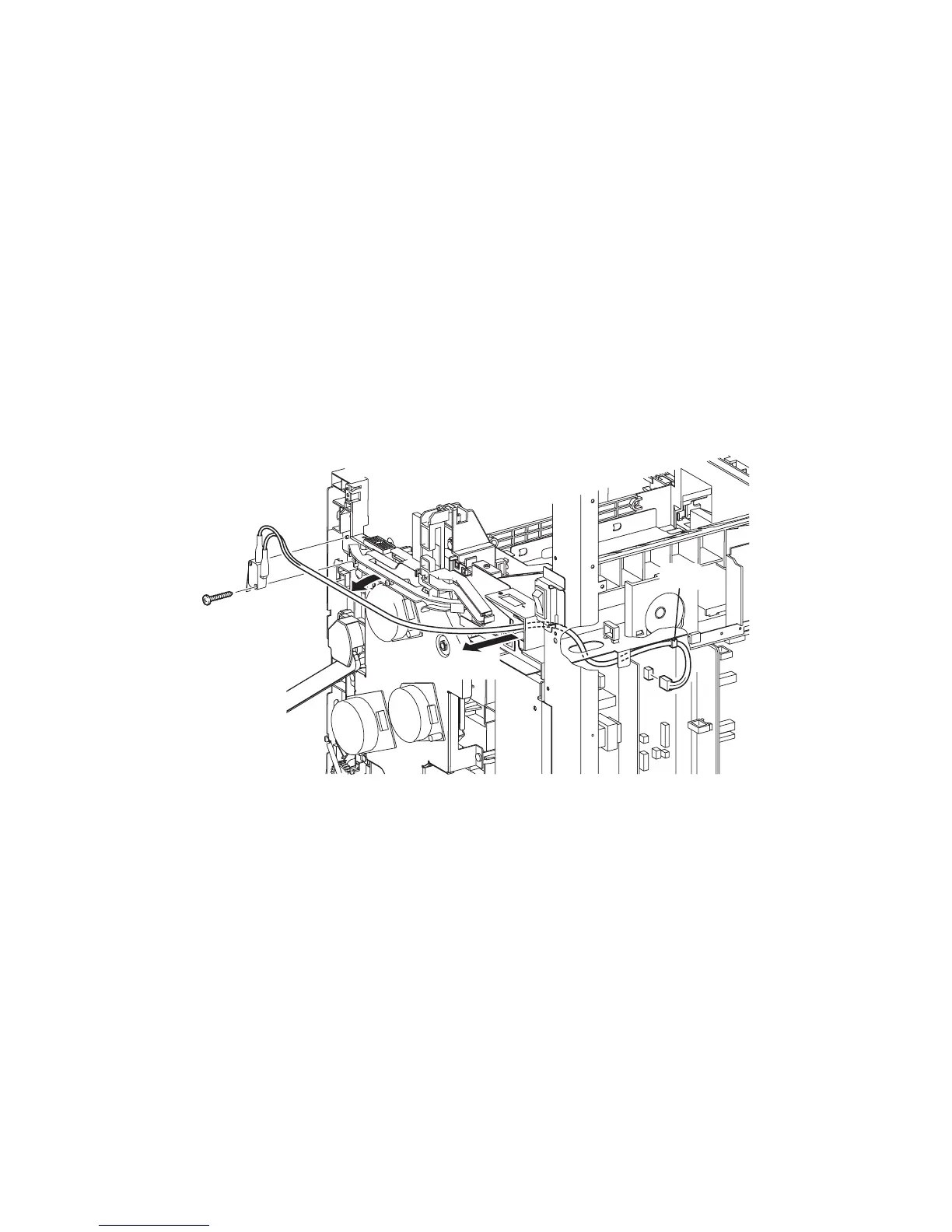

Gnb03179KA
14)
15)-1
15)-2
16)
17)
18)
To Next Page
