Dell 3115CN - Removal 7 DUPLEX GATE (PL6.1.13)

3 - 15
Chapter 3 Removal and Replacement Procedures (RRPs)
Version 1 2006.11.28
Removal 7 DUPLEX GATE (PL6.1.13)
The FUSER part is very hot. Take added care not to get burned when performing the ser-
vice operation.
1) Open the FRONT COVER (PL13.2.1).

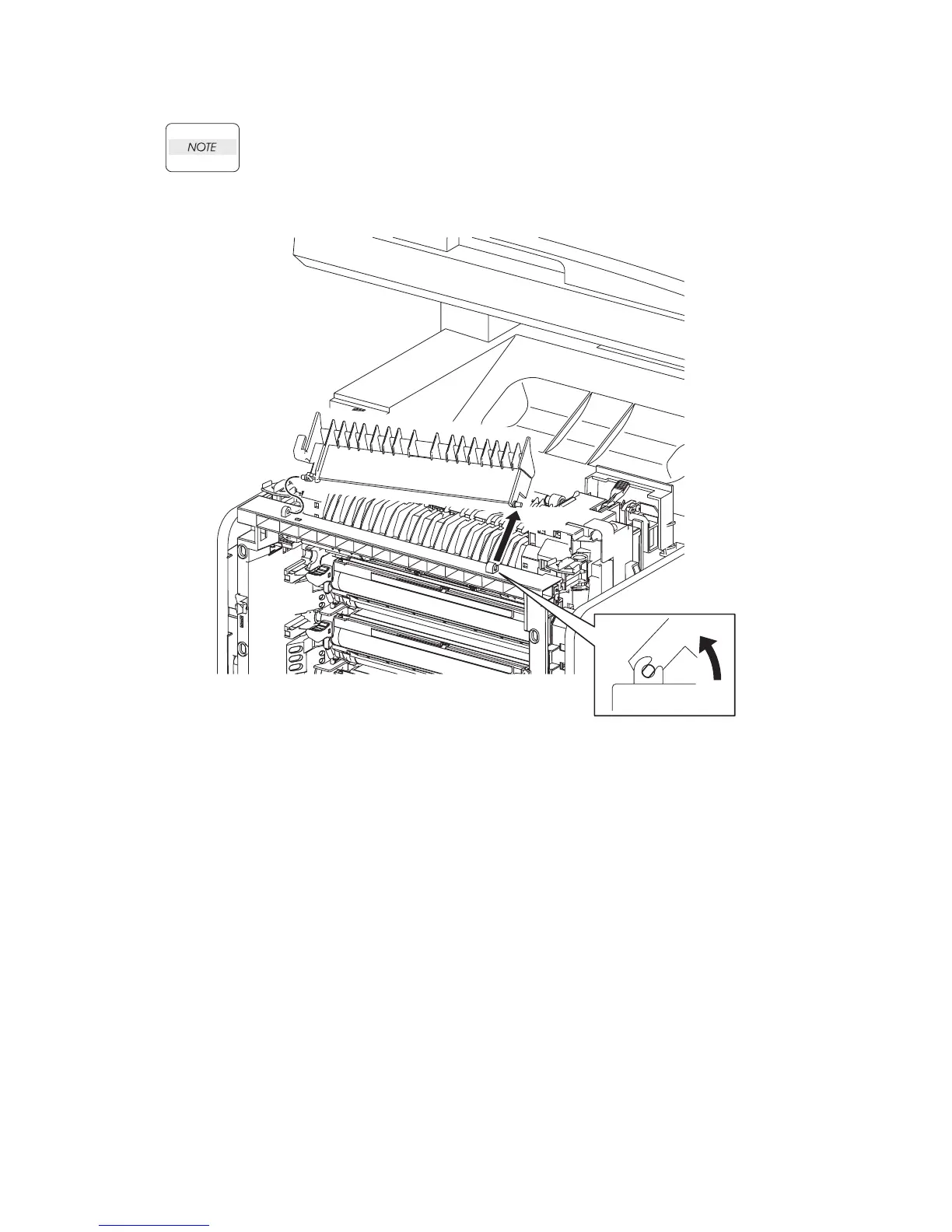

2) Open the DUPLEX GATE (PL6.1.13) to about 45 degrees so that the flat faces of the right side
pivot of the DUPLEX GATE comes parallel with the U-shaped notch. Pull out the right side
pivot of the DUPLEX GATE from the U-shaped notch diagonally backward.
3) Pull out the left side pivot of the DUPLEX GATE from the hole on the printer.
Gnb03010KA
2)-1
2)-2
3)
