Dell 3115CN - Removal 69 SPEAKER ASSY (PL13.5.6)

3 - 100
Chapter 3 Removal and Replacement Procedures (RRPs)
Version 1 2006.11.28
Removal 69 SPEAKER ASSY (PL13.5.6)
Steps 1 through 12 are for reference. Before removing this component, check that Steps 1 through 12
have been performed.
1) Open the FRONT COVER (PL13.2.1).
2) Remove the FUSER.(Removal 8)
3) Remove the REAR COVER. (Removal 49)
4) Remove the COVER BOTTOM. (Removal 50)
5) Remove the COVER POLE IN R.(Removal 51)
6) Remove the COVER POLE R.(Removal 52)
7) Remove the RIGHT COVER. (Removal 54)
8) Remove the COVER POLE IN L. (Removal 57)
9) Remove the COVER POLE L. (Removal 58)
10) Remove the LEFT COVER. (Removal 59)
11) Remove the TOP COVER. (Removal 68)
12) Remove the BOX ASSY PRT AIO. (Removal 60)

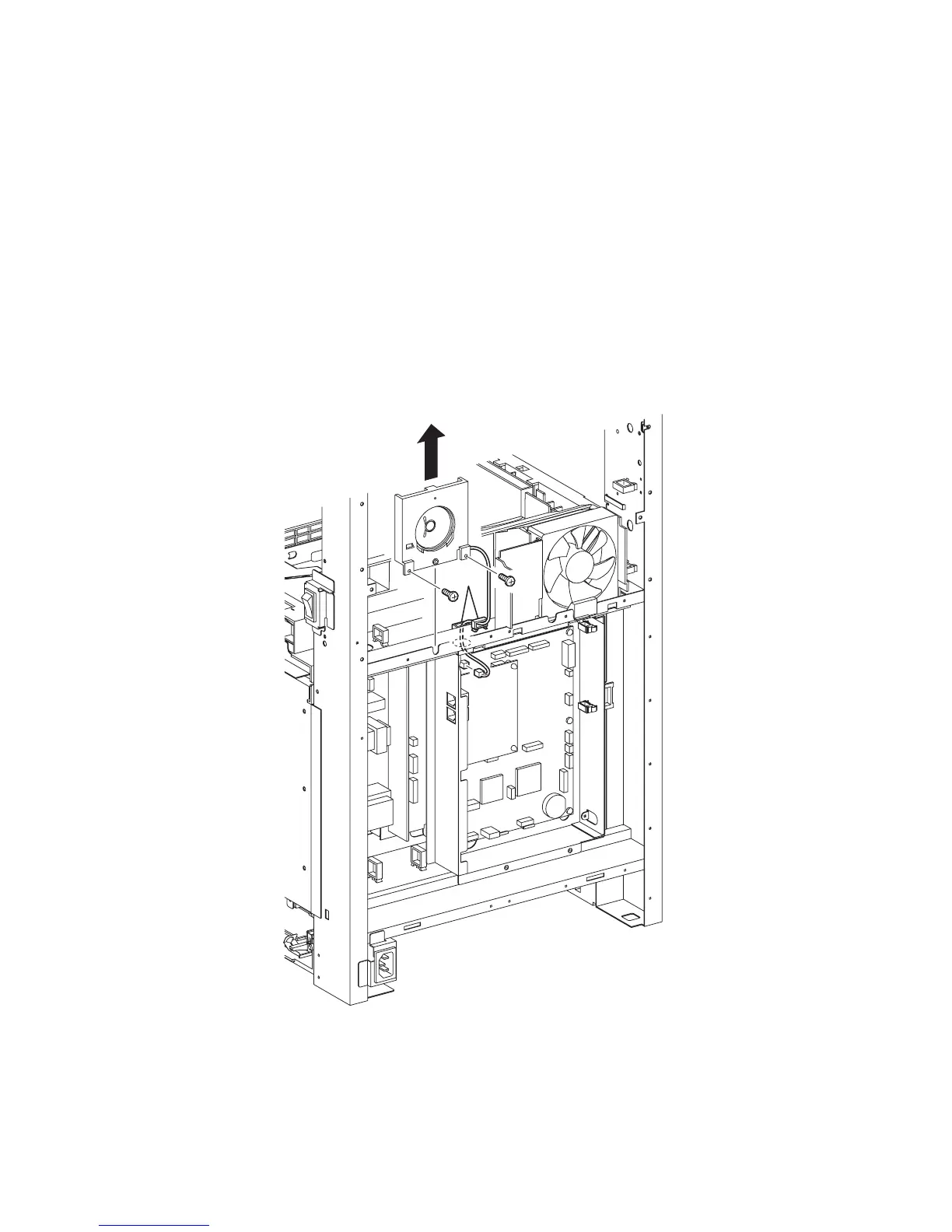

13) Disengage the connector (P/J52) of the SPEAKER ASSY (PL13.5.6) from the PWBA HYUI
(PL.13.4.1).
14) Release the harness of the SPEAKER ASSY from the two clamps and pull them out of the hole
on the printer.
15) Remove the two screws (silver, 6mm) that fix the SPEAKER ASSY to the printer.
16) Remove the SPEAKER ASSY from the printer by sliding it upward.
Gnb03178KA
13)
14)
15)
16)
15)
