Dell 3115CN - Removal 63 PWBA FAX (PL13.4.3)

3 - 93
Chapter 3 Removal and Replacement Procedures (RRPs)
Version 1 2006.11.28
Removal 63 PWBA FAX (PL13.4.3)
Steps 1 through 5 are for reference. Before removing this component, check that Steps 1 through 5
have been performed.
1) Remove the REAR COVER. (Removal 49)
2) Remove the COVER BOTTOM. (Removal 50)
3) Remove the COVER POLE IN L. (Removal 57)
4) Remove the COVER POLE L. (Removal 58)
5) Remove the BOX ASSY PRT AIO. (Removal 60)

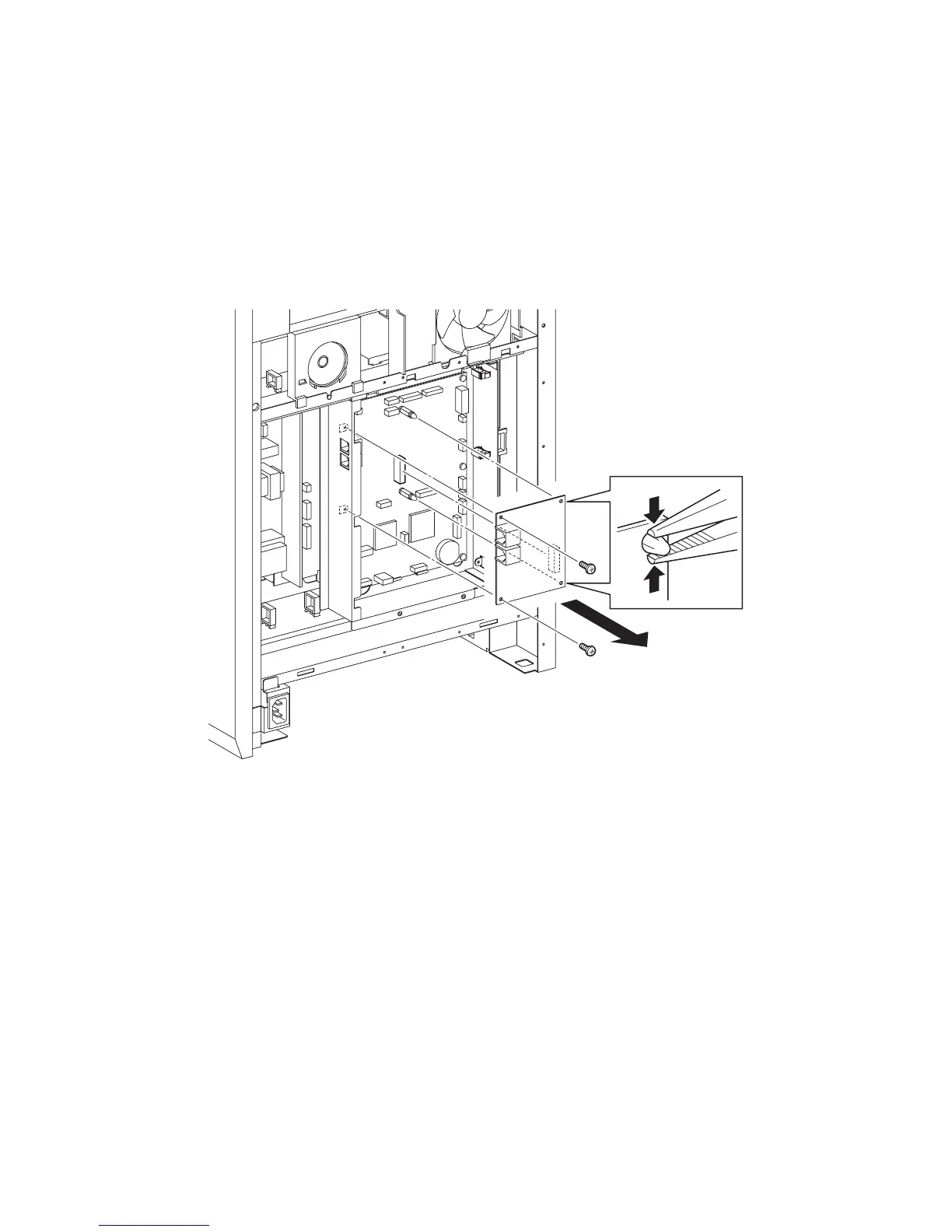

6) Remove the two screws (silver, 6mm) that fix the PWBA FAX (PL13.4.3) to the BOX ASSY
FAX AIO (PL13.4.4).
7) Remove the PWBA FAX from the PWBA HYUI (PL.13.4.1) by releasing the hooks on the
SUPPORT FAXs (PL13.4.2).
Gnb03172KA
6)
6)
7)-1
7)-2
