Dell 3115CN - Gear Layout

6 – 28
Chapter 6 Principle of Operation (Scanner)
Version 1 2006.11.21

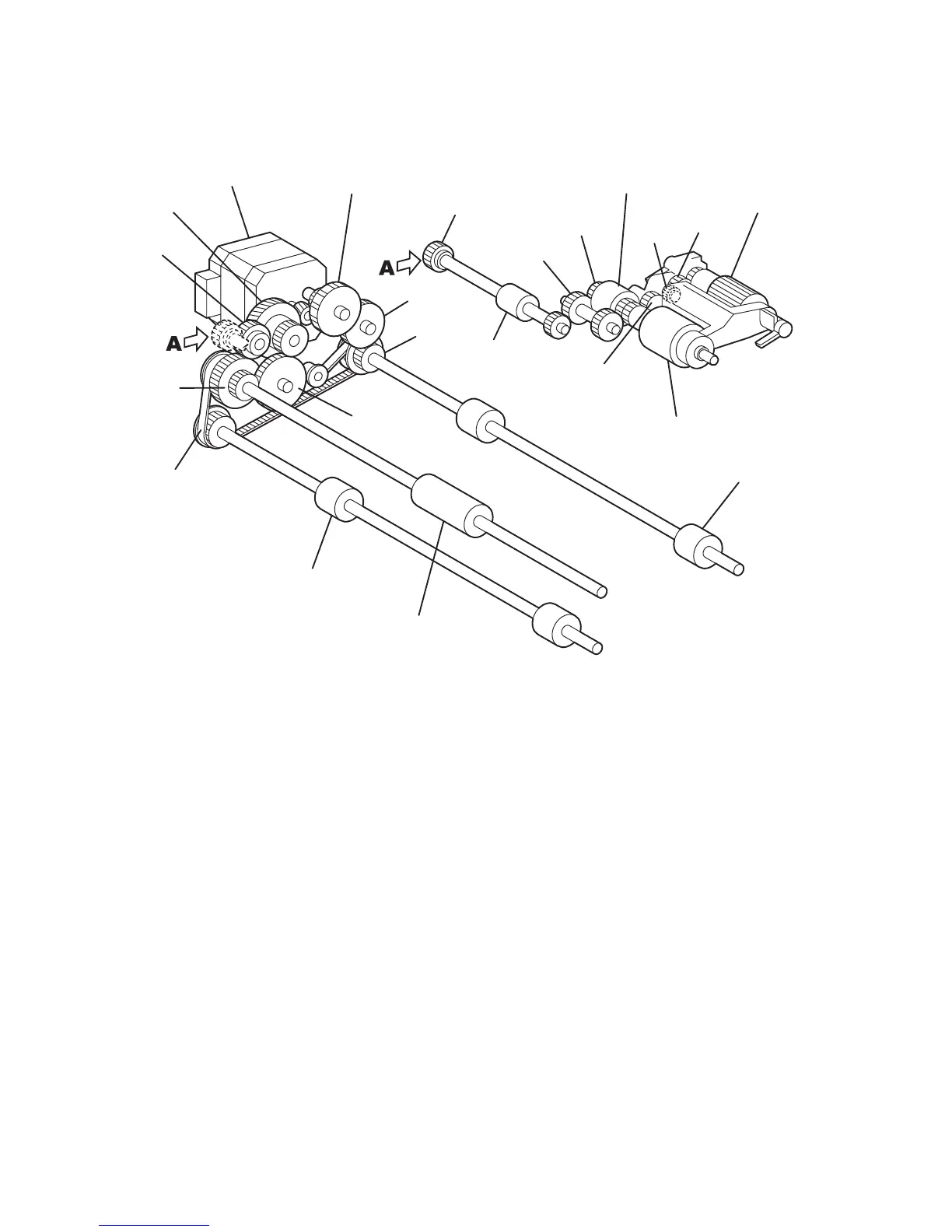

11.2 Gear Layout
Gnb06008KA
Regi Roll
Exit Roll
Nudger Roll
(ADF Feed Roller)
ADF Motor
Gear D
Gear A
Gear C
Gear B
Gear F
Gear E
Gear G
Oneway
Clutch
Gear J
Gear H
Gear I
Gear L
Gear K
Friction ClutchJam Clear Rotor
Belt
Feed Roll (ADF Feed Roller)
Takeaway Roll
