Dell 3115CN - Replacement 43 TRAY REAR COVER (PL13.1.7)

3 - 170
Chapter 3 Removal and Replacement Procedures (RRPs)
Version 1 2006.11.28

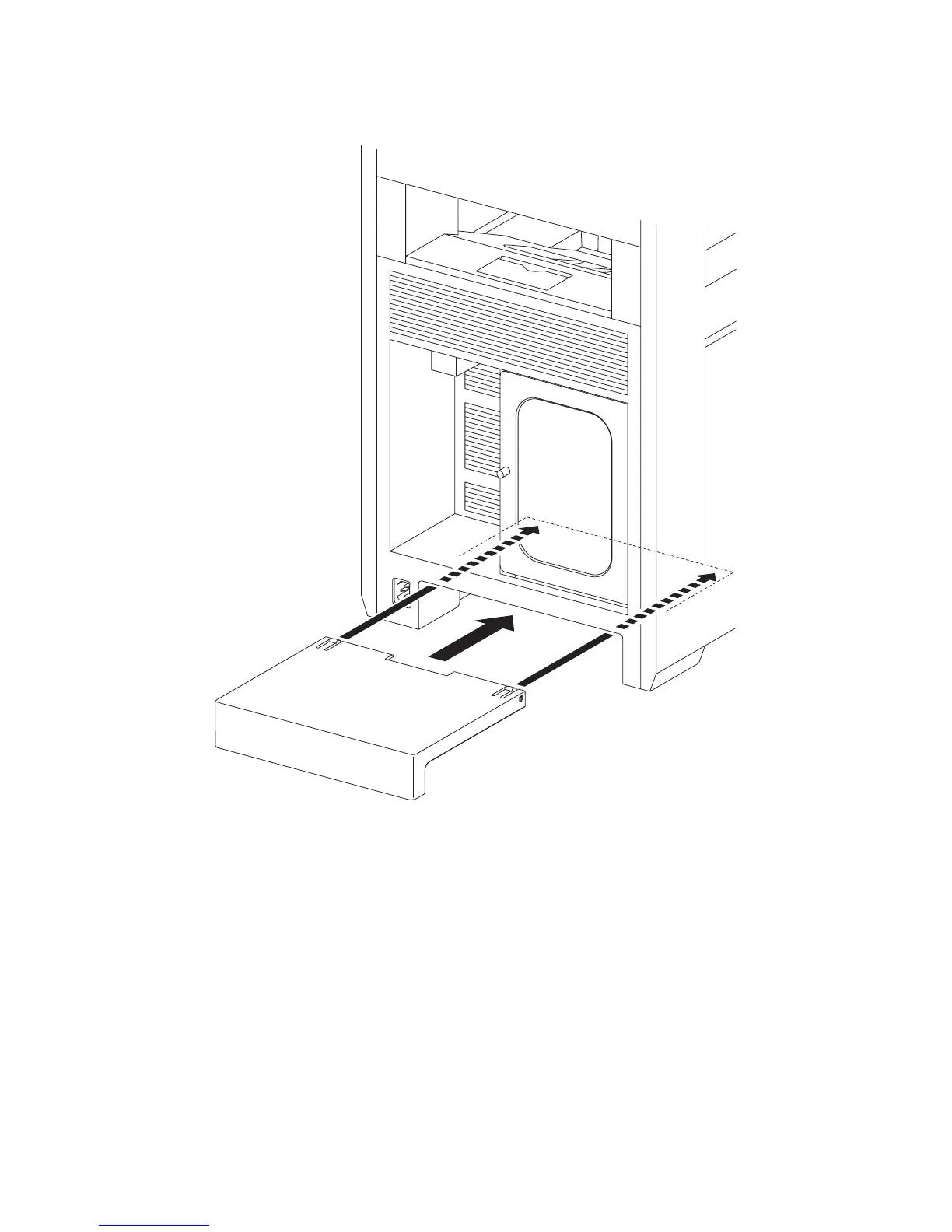

Replacement 43 TRAY REAR COVER (PL13.1.7)
1) Insert the TRAY REAR COVER into the printer.
2) Secure by locking the two front hooks on TRAY REAR COVER to the printer.
Gnb03064KA
2)
2)
1)
