Dell 3115CN - Replacement 5 FEED ROLLER (PL3.2.53)

3 - 117
Chapter 3 Removal and Replacement Procedures (RRPs)
Version 1 2006.11.28
Replacement 5 FEED ROLLER (PL3.2.53)

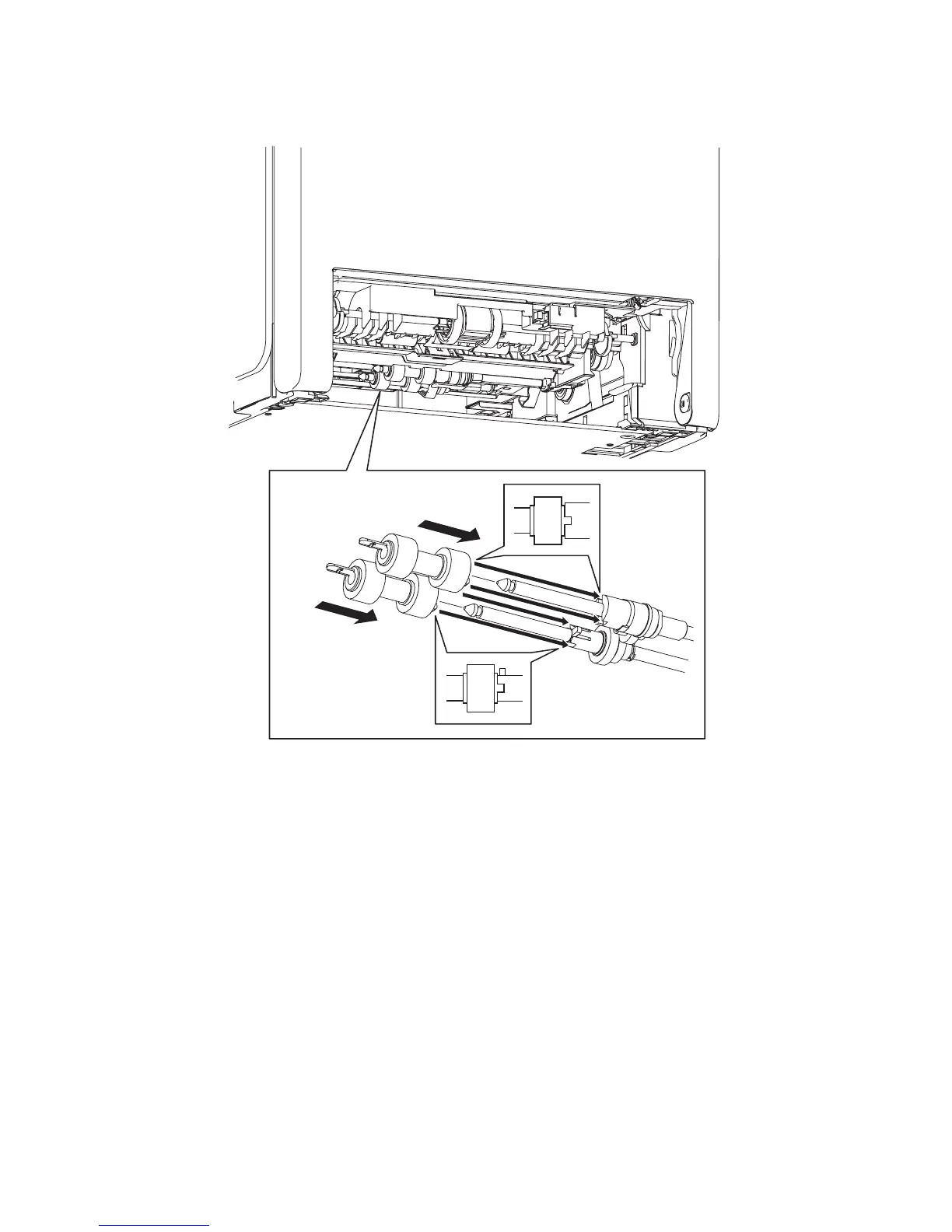

1) Slide the FEED ROLLERs onto the shafts so that the lugs on the FEED ROLLERs are mated
with the notches on the ROLL ASSY GEAR NUDGER (PL3.2.46) and CLUTCH ONEWAY
FEED (PL3.2.52). Lock the hooks on the other end of the FEED ROLLERs into the grooves on
the shafts.
2) Replace the 250 SHEET PAPER TRAY to the printer.
Kmy03117KA
1)
1)
