Dell 3115CN - Replacement 20 TONER DISPENSER MOTOR (PL5.1.12)

3 - 137
Chapter 3 Removal and Replacement Procedures (RRPs)
Version 1 2006.11.28
Replacement 20 TONER DISPENSER MOTOR (PL5.1.12)
Described below is the replacement procedure common among TONER DISPENSER
MOTORs (C), (M), (Y), and (K).

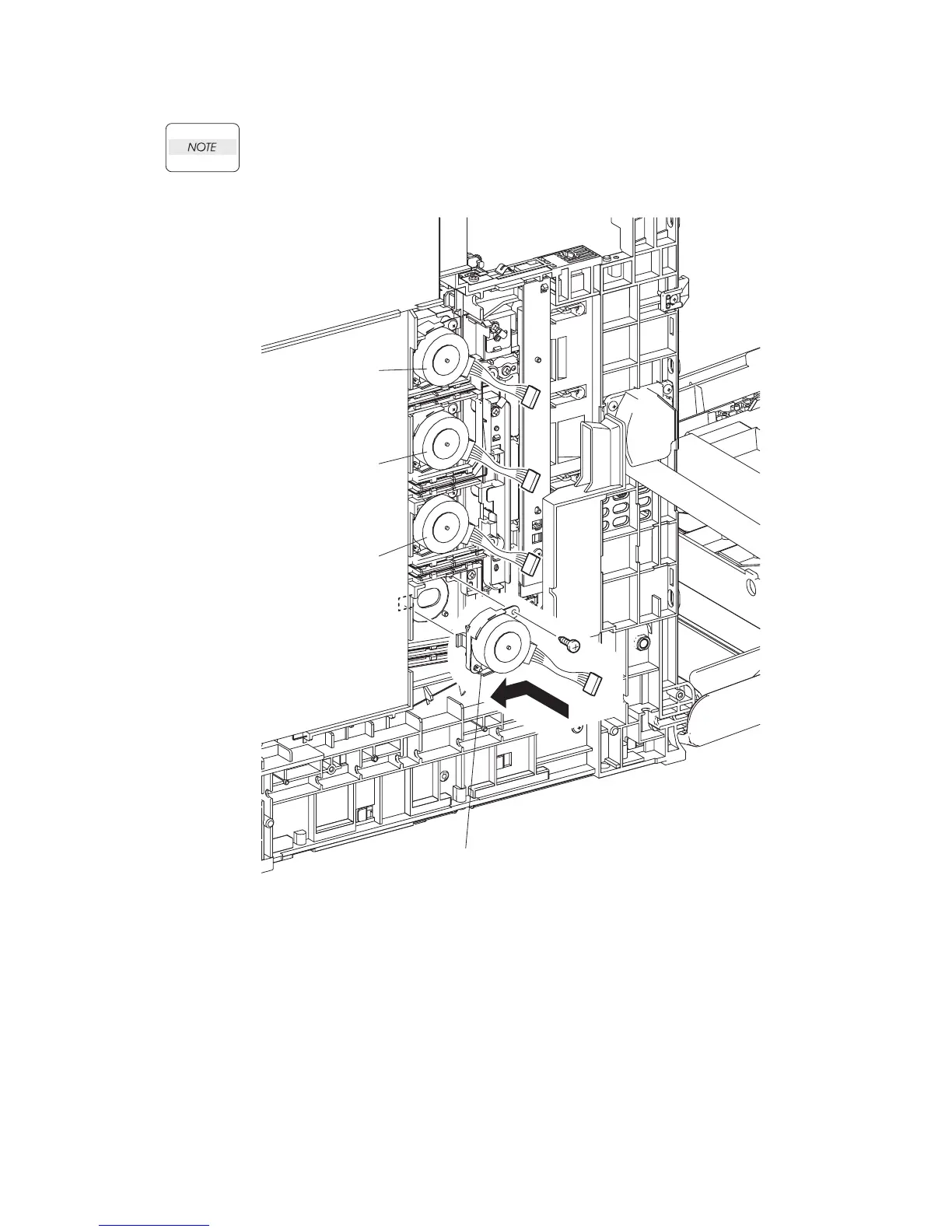

1) Replace the TONER DISPENSER MOTOR to the printer by mating the tab of the TONER
DISPENSER MOTOR with the hole on the printer and moving it slightly backward.
2) Secure the TONER DISPENSER MOTOR to the printer using the one screw (silver, tap,
10mm).
Continues to the next page.
Kmy03098KA
2)
1)
TONER DISPENSERMOTOR (K)
TONER DISPENSERMOTOR (C)
TONER DISPENSERMOTOR (M)
TONER DISPENSERMOTOR (Y)
