Chapter 1 Troubleshooting
Version 2 2007.05.22

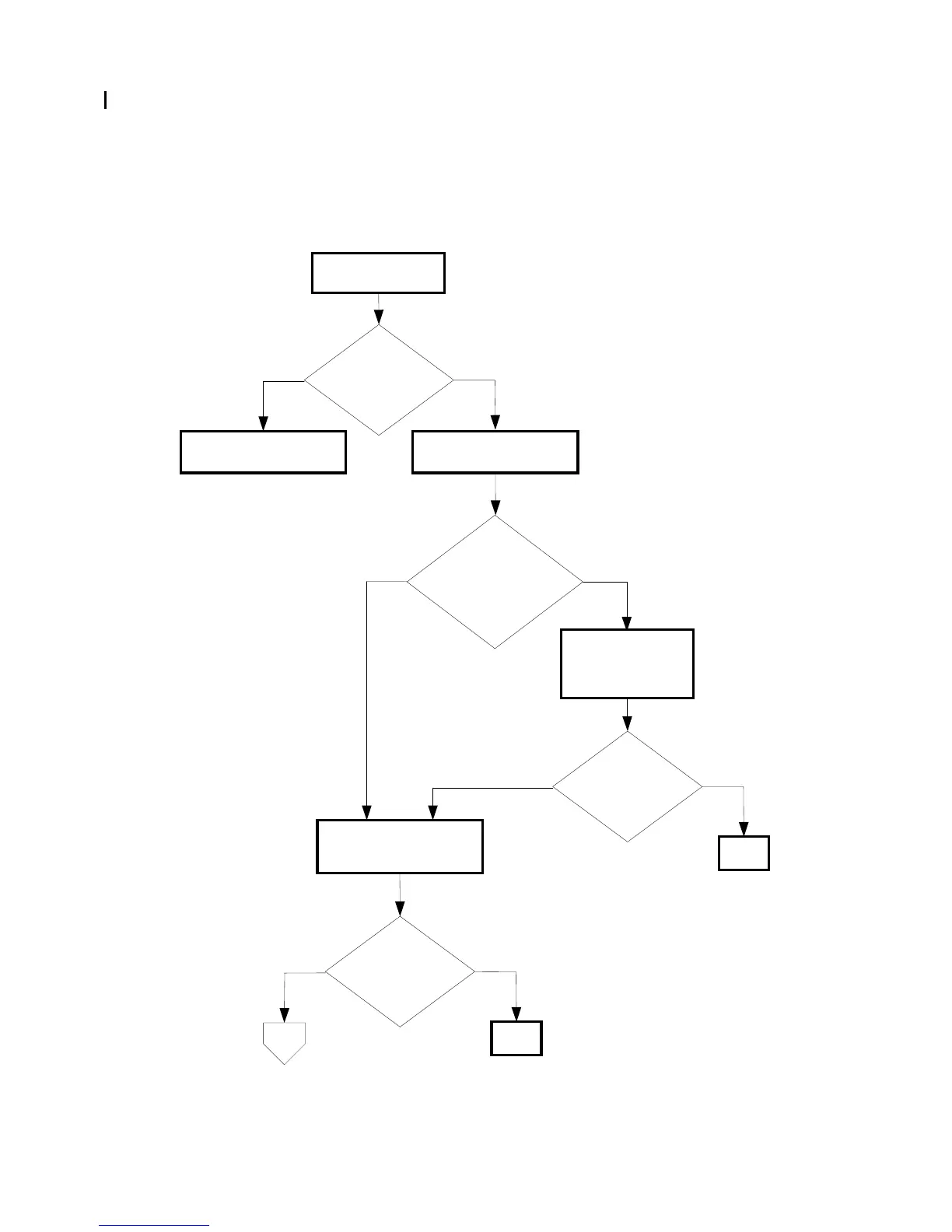

FIP-1. 39 Paper Jam 075-100/Illegal Settings (Copy Select Tray Boken)
No
Yes
Possible causative parts:250 PAPER CASSETTE ASSY (PL2.2.99)
KIT ROLLER (PL2.2.99)
KIT SOLENOID FEED MSI (PL3.1.98)
KIT FEED ROLL MSI (PL3.1.99)
DRIVE ASSY PH (PL8.1.7)
PWBA MCU (PL9.1.20)
Checking the paper
condition
Checking the paper size
setup
No
Yes
Checking the Paper
Cassette installation
Reseat the paper cassette.
Does the paper size in
use match the size set
through the control panel?
A
Replace the paper with a
new and dry one.
Is the paper in the
Tray wrinkled or
damaged?
No
Yes
Checking the paper
size setting
Correct the paper
size setting.
Does the error still
occur when printing?
END
No
Yes
Does the error still
occur when printing?
END
