Chapter 6 Principle of Operation (Scanner)
Version 1 2006.11.21
9.1 Document Scanning at Platen (IIT)

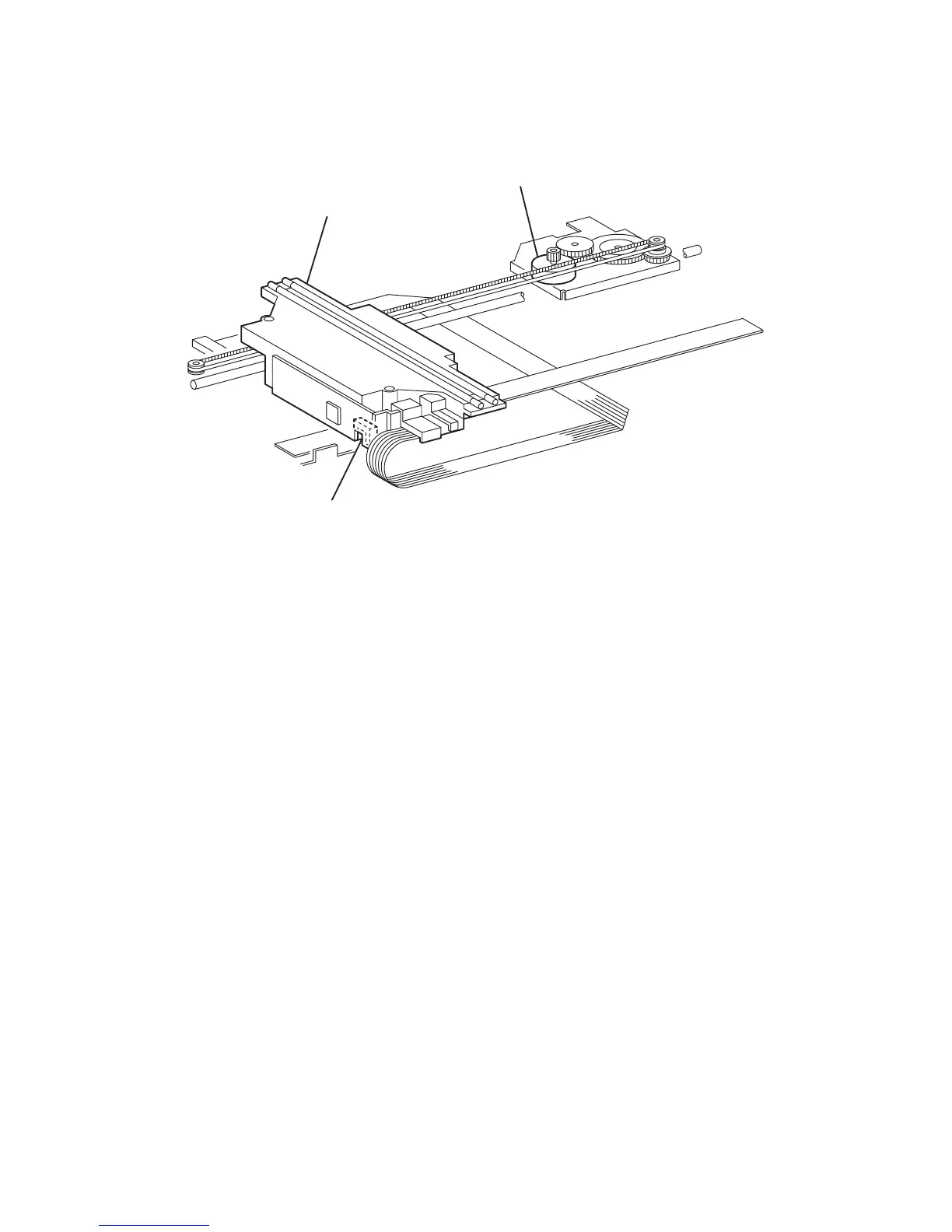

Shown below is an operational overview of document scanning at the platen.
The Scanner ASSY travels to read the document.
The following are installed on the Scanner ASSY: Exposure Lamp that illuminates light onto the
document, CCD image sensor that reads light reflected from the document, and the lenses and mirrors
comprising the light path for the optical image.
Gnb06002KA
Scanner Assy
Scanner Home Position Sensor
Carriage Motor
