Dell 3115CN - Customer Replaceable Parts Illustration

5 – 2
Chapter 5 Parts List
Version 2 2007.03.20

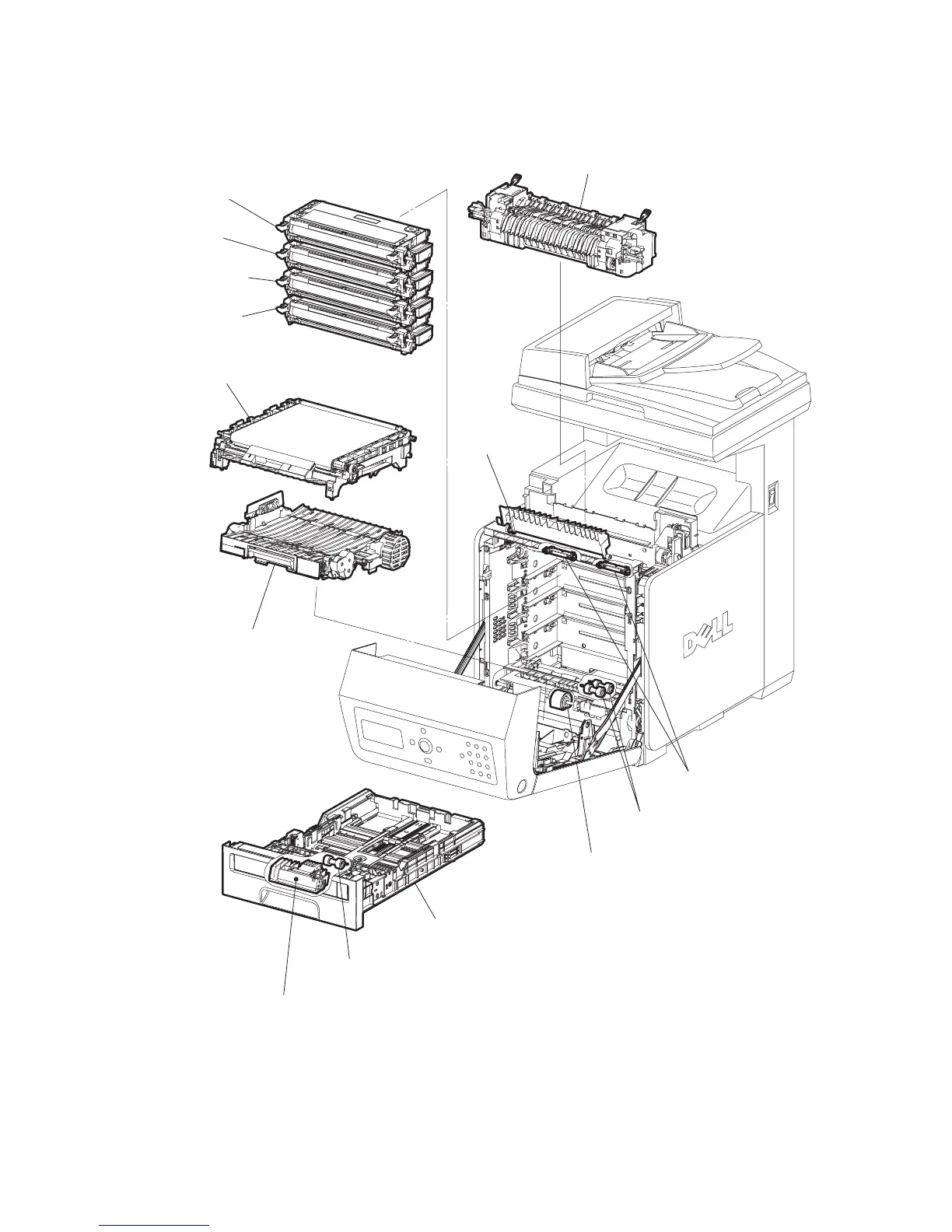

Customer Replaceable Parts Illustration
Gnb05101KA
FUSER
[RefPL6.1.10]
DUPLEXGATE
[RefPL6.1.13]
SPURASSEMBLY
[RefPL7.1.1]
BLACKTONER
[RefPL5.1.18]
CYANTONER
[RefPL5.1.19]
MAGENTATONER
[RefPL5.1.20]
YELLOWTONER
[RefPL5.1.21]
MPFSEPARATORROLLERASSEMBLY
[RefPL2.1.99]
SEPARATORROLLER(IdenticalFEEDROLLER)
[RefPL2.2.99]
250SHEETPAPERTRAY
[RefPL2.1.1]
MPFROLLER
[RefPL3.1.99]
FEEDROLLER
[RefPL2.2.99]
TRANSFERBELT
[RefPL4.1.1]
DUPLEXMODULE
[RefPL11.1.1]
