Dell 3115CN - Removal 38 MPF SEPARATOR ROLLER ASSEMBLY (PL2.1.3)

3 - 62
Chapter 3 Removal and Replacement Procedures (RRPs)
Version 1 2006.11.28
Removal 38 MPF SEPARATOR ROLLER ASSEMBLY (PL2.1.3)
1) Remove the 250 SHEET PAPER TRAY (PL2.1.1) from the printer.

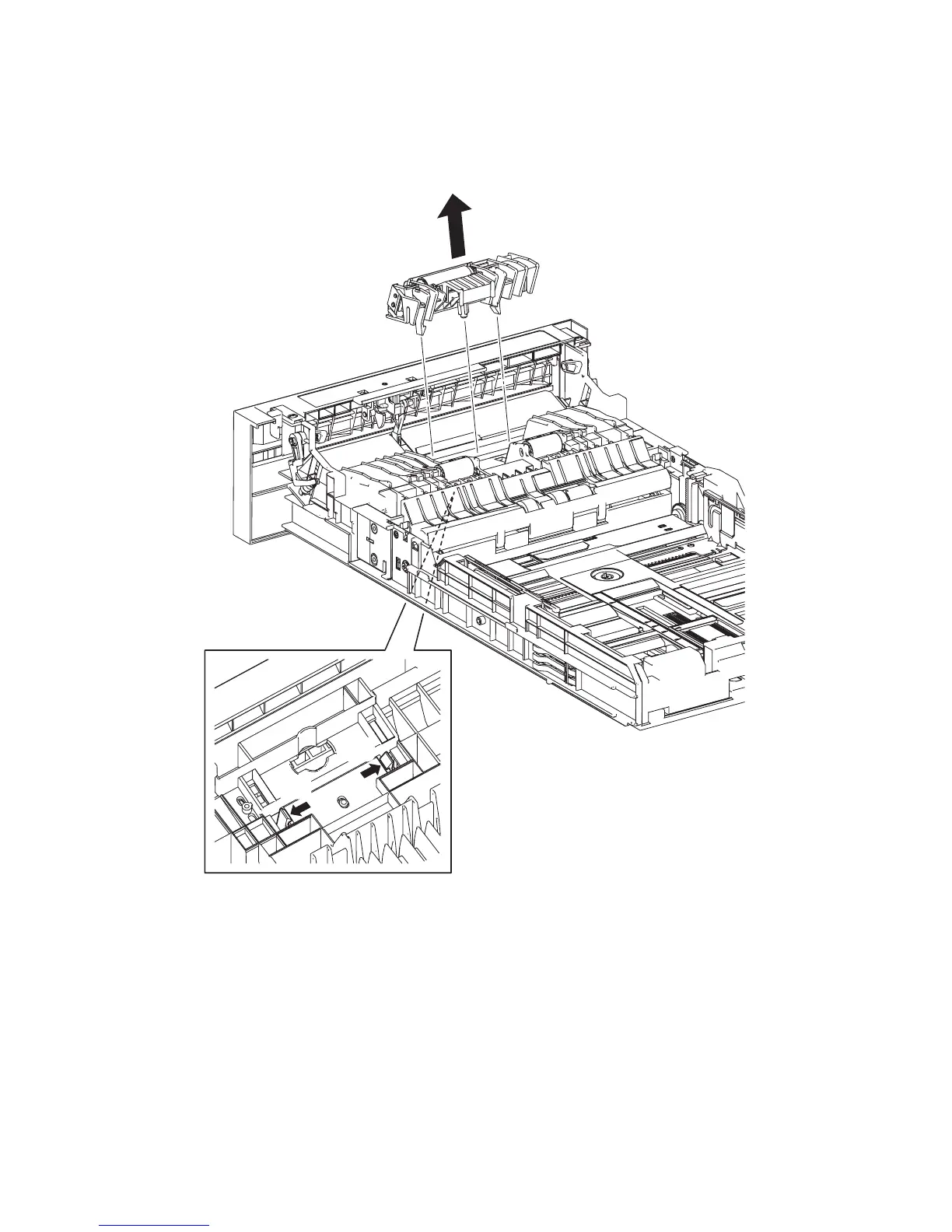

2) Release the two backside hooks of the MPF SEPARATOR ROLLER ASSEMBLY (PL2.1.3) and
then remove the MPF SEPARATOR ROLLER ASSEMBLY from the 250 SHEET PAPER
TRAY.
Kmy03054KA
2)-1
2)-1
2)-2
