3 - 61
Chapter 3 Removal and Replacement Procedures (RRPs)
Version 1 2006.11.28
Removal 37 TONER CARTRIDGE SENSOR ASSEMBLY (K) (PL5.1.4)
Steps 1 through 13 are for reference. Before removing this component, check that Steps 1 through 13
have been performed.
1) Open FRONT COVER (PL13.2.1).
2) Remove the FUSER.(Removal 8)
3) Remove the REAR COVER. (Removal 49)
4) Remove the COVER BOTTOM. (Removal 50)
5) Remove the COVER POLE IN R. (Removal 51)
6) Remove the COVER POLE R.(Removal 52)
7) Remove the RIGHT COVER. (Removal 54)
8) Remove the COVER POLE IN L. (Removal 57)
9) Remove the COVER POLE L. (Removal 58)
10) Remove the LEFT COVER. (Removal 59)
11) Remove the TOP COVER. (Removal 68)
12) Remove the INTERLOCK SWITCH. (Removal 70)
13) Remove the PHTOTCONDUCTOR (PC) / DEVELOPER (DEV) DRIVE. (Removal 36)

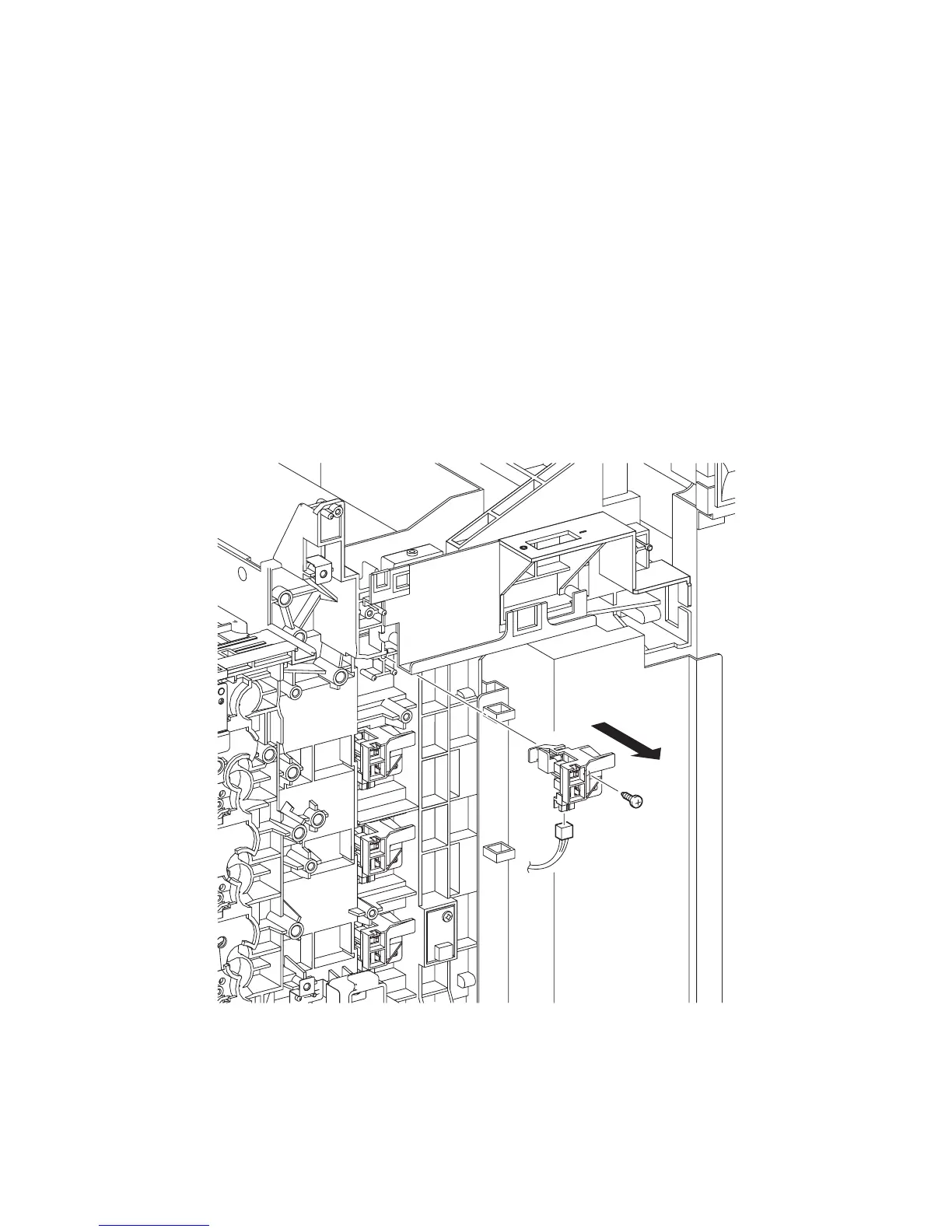

14) Remove the one screw (silver, tap, 10mm) that fixes the TONER CARTRIDGE SENSOR
ASSEMBLY (K) (PL5.1.4) to the printer.
15) Remove the TONER CARTRIDGE SENSOR ASSEMBLY (K) from the printer.
16) Disengage the connector (P/J193) of the TONER CARTRIDGE SENSOR ASSEMBLY (K).
Gnb03053KA
14)
15)
16)
