Dell 3115CN - Replacement Steps

3 - 113
Chapter 3 Removal and Replacement Procedures (RRPs)
Version 1 2006.11.28
3. Replacement Steps
Replacement 1 550 TRAY SEPARATOR ROLLER (PL12.5.17) (Same as the 550 TRAY
FEED ROLLER)

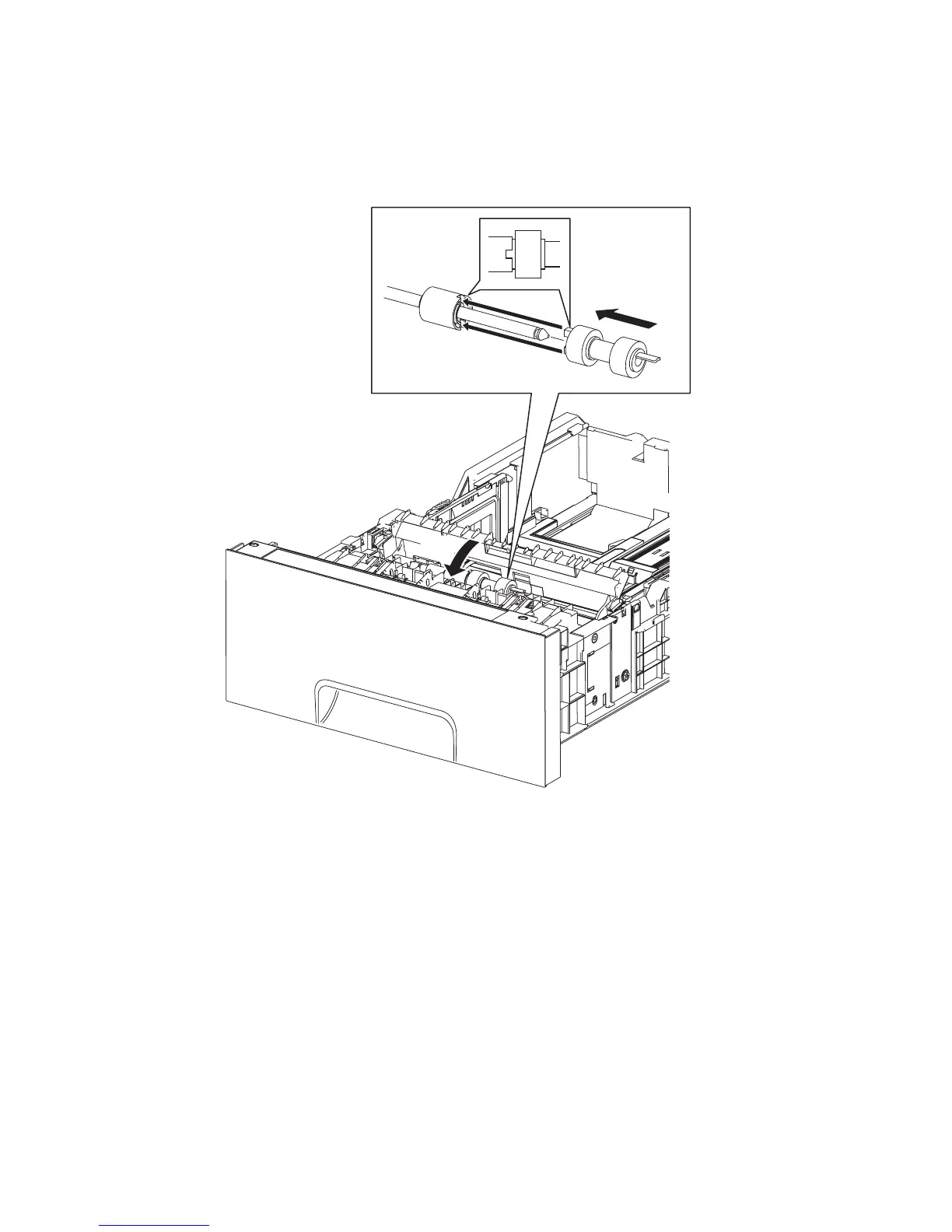

1) Slide the 550 TRAY SEPARATOR ROLLER onto the SHAFT RETARD so that the lug on the
550 TRAY SEPARATOR ROLLER is mated with the notch on the CLUTCH FRICTION RET
(PL12.5.16). Lock the hook on the other end of the 550 TRAY SEPARATOR ROLLER into the
groove on the SHAFT RETARD.
2) Close the CVR RTD CST.
3) Replace the 550 SHEET PAPER TRAY to the 550 SHEET FEEDER ASSEMBLY.
Kmy03121KA
1)
2)
