Chapter 3 Removal and Replacement Procedures (RRPs)
Version 1 2006.11.28
Removal 51 COVER POLE IN R (PL13.1.4)
Step 1 is for reference. Before removing this component, check that Step 1 has been performed.
1) Remove the COVER BOTTOM. (Removal 50)

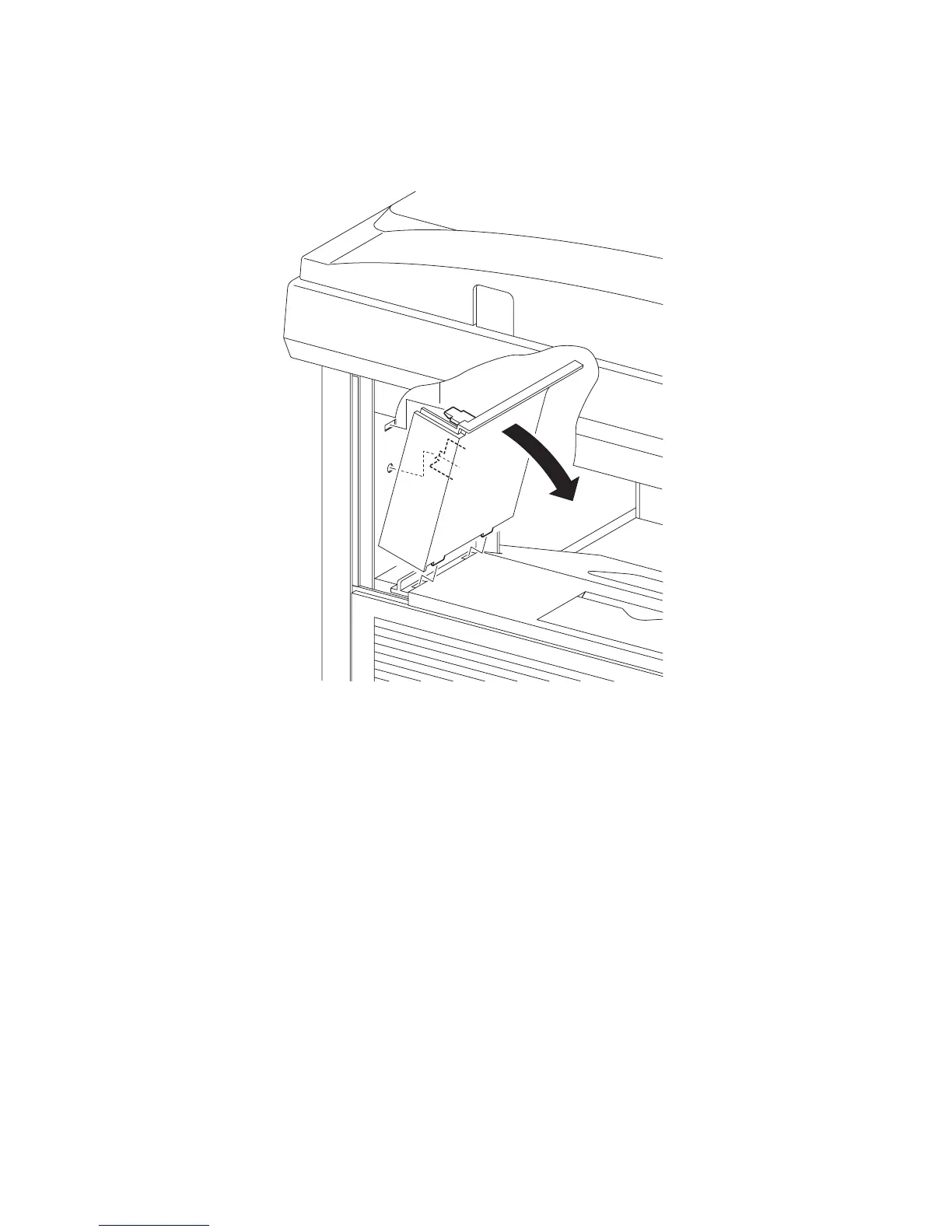

2) Release the one hook on the rear side of the COVER POLE IN R (PL13.1.4) from the printer by
tilting the COVER POLE IN R inward.
3) Remove the COVER POLE IN R from the printer by releasing the two hooks on the underside
of the COVER POLE IN R from the holes on the TOP COVER (PL13.1.1).
Go to the next removal step:
Removal 52 COVER POLE R (PL13.1.8)
Gnb03156KA
2)
3)
3)
