Dell 3115CN - Replacement 48 ADF FEED ROLLER (PL13.8.3), ADF SEPARATOR PAD (PL13.8.5)

3 - 176
Chapter 3 Removal and Replacement Procedures (RRPs)
Version 1 2006.11.28
Replacement 48 ADF FEED ROLLER (PL13.8.3), ADF SEPARATOR PAD (PL13.8.5),
ADF SEPARATOR SPRING (PL13.8.6)

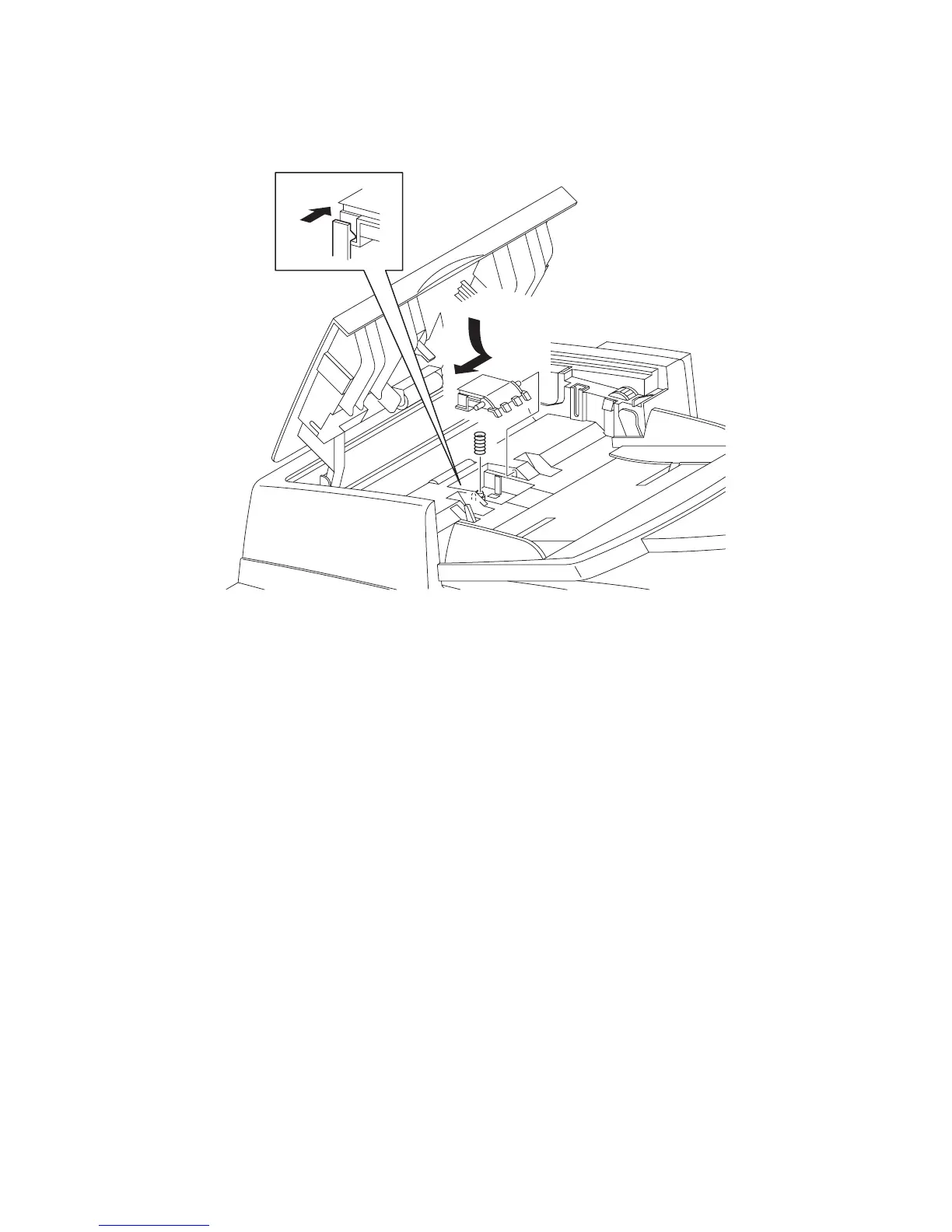

1) Mate the ADF SEPARATOR SPRING with the lug of the ADF ASSY.
2) Insert the rear side shaft of the ADF SEPARATOR PAD into the bearing of the ADF ASSY,
and then insert the front side shaft of the ADF SEPARATOR PAD into the bearing of the ADF
ASSY. Secure the ADF SEPARATOR PAD with the hook.
Continues to the next page.
Gnb03188KA
2)-2
2)-1
1)
