Dell 3115CN - Yellow 20; Black 20

2 - 57
Chapter 2 Operation of Diag.
Version 1 2006.11.21

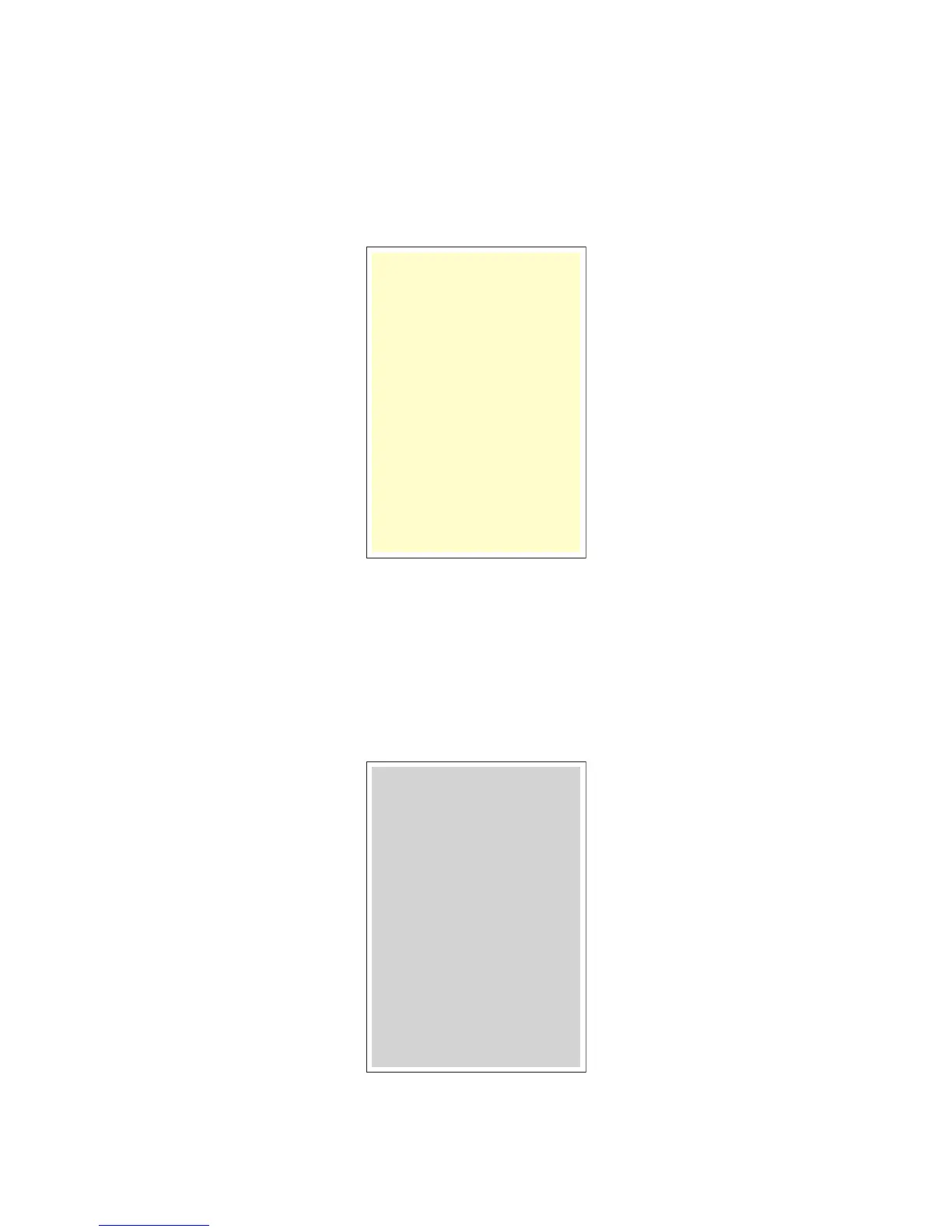

4.6.7 Yellow 20%
Outputs yellow 20% paint on the whole area of a A4 paper.
When the PQ problem occurred, this test enables to identify the problem as the yellow toner or
another color.
Compare the sample chart with the print.
Check result: NG (Check the yellow toner-related.) OK (Check another toner.)
4.6.8 Black 20%
Outputs black 20% paint on the whole area of a A4 paper.
When the PQ problem occurred, this test enables to identify the problem as the black toner or
another color.
Compare the sample chart with the print.
Check result: NG (Check the black toner-related.) OK (Check another toner.)
Leg_Sec02_007FA
Leg_Sec02_008FA
