Dell 3115CN - Removal 24 LEFT ARM ASSEMBLY (PL7.1.97)

3 - 39
Chapter 3 Removal and Replacement Procedures (RRPs)
Version 2 2007.03.20
Removal 24 LEFT ARM ASSEMBLY (PL7.1.97)
Steps 1 through 7 are for reference. Before removing this component, check that Steps 1 through 7
have been performed.
1) Open FRONT COVER (PL13.2.1).
2) Remove the FUSER. (Removal 8)
3) Remove the REAR COVER. (Removal 49)
4) Remove the COVER BOTTOM. (Removal 50)
5) Remove the COVER POLE IN L. (Removal 57)
6) Remove the COVER POLE L. (Removal 58)
7) Remove the LEFT COVER. (Removal 59)

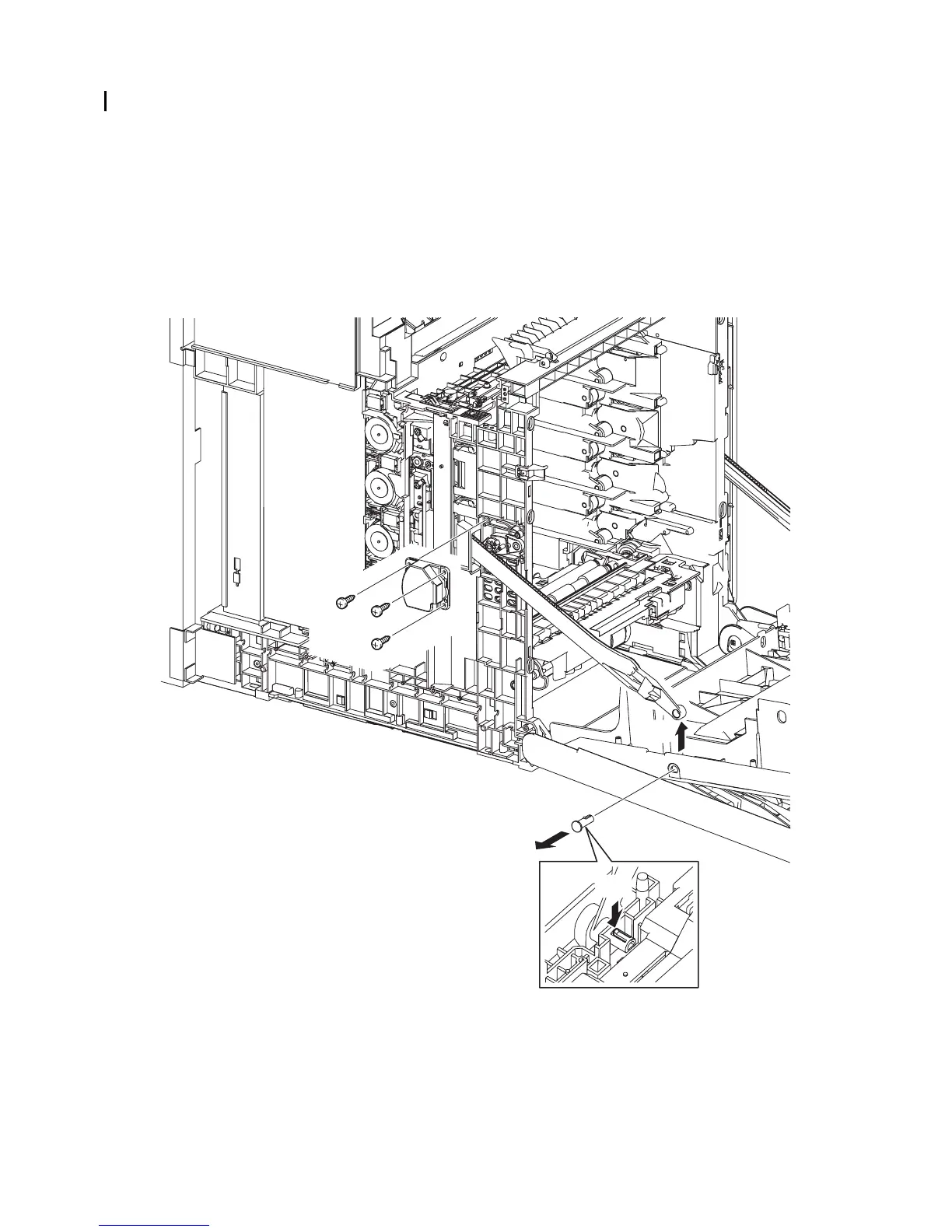

8) Release the hook of the SHAFT PIVOT (PL13.2.10) that fixes the LINK L to the FRONT
COVER (PL13.2.1), and then remove the LINK L from the FRONT COVER by pulling the
SHAFT PIVOT to the outside.
9) Remove the three screws (silver, tap, 8mm) that fix the SUPPORT LINK L (PL7.1.2) to the
printer.
10) Remove the SUPPORT LINK L from the printer.
Continues to the next page.
Gnb03035KA
8)-2
8)-1
8)-3
10)
9)
9)
9)
