Chapter 6 Principle of Operation (Scanner)
Version 1 2006.11.21
9.2 Document Scanning at ADF

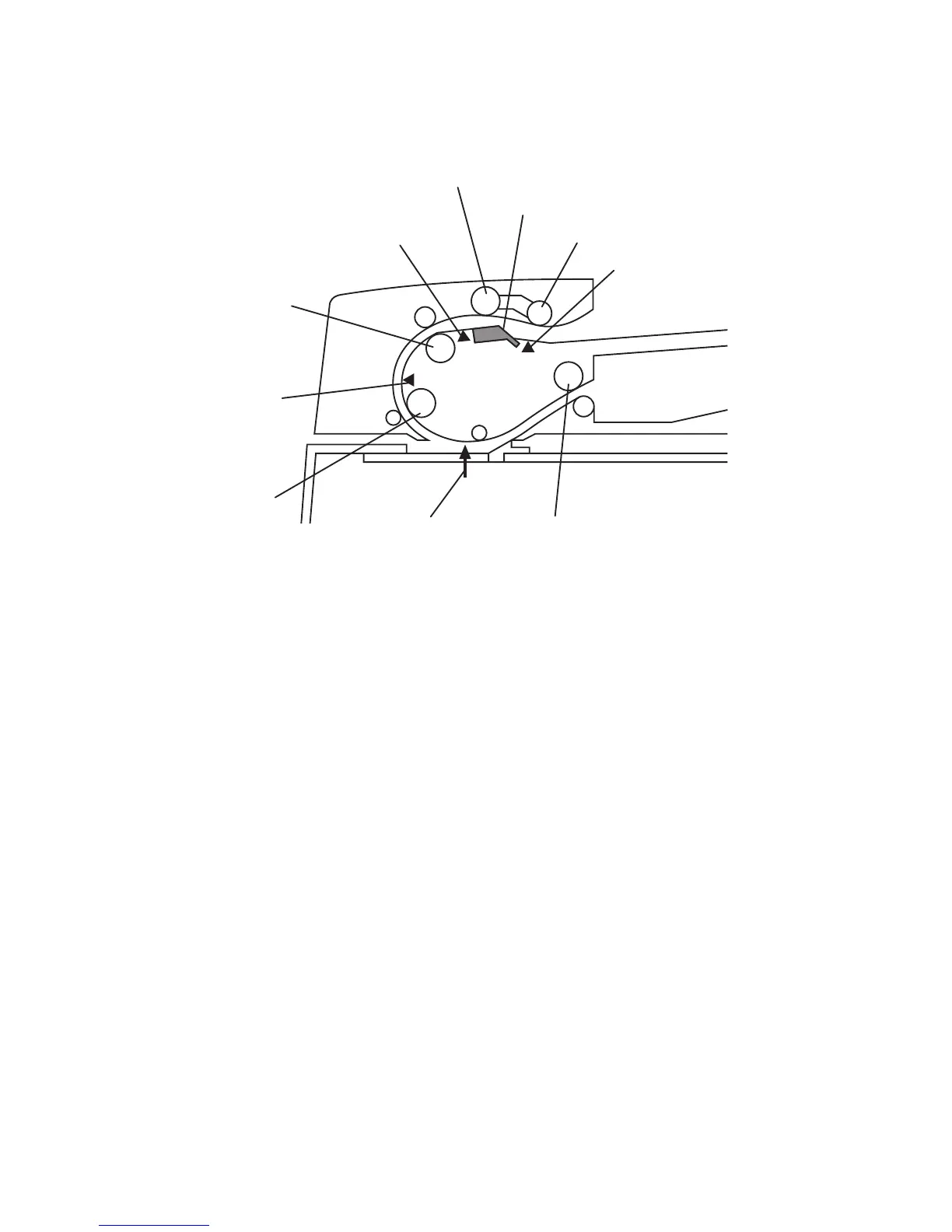

The following describes the document feed path from the ADF.
A document sheet set in the document tray is conveyed through the Feed Roll, Takeaway Roll, and
Regi Roll. The document image is scanned at the CVT position, and the document sheet is ejected via
the Exit Roll.
Gnb06003KA
Document Sensor
Regi Sensor
Regi Roll
Exit RollCVT Position
Nudger Roll (ADF Feed Roller)
ADF Separator Pad
Feed Roll (ADF Feed Roller)
Takeaway Roll
Feed Sensor
