Dell 3115CN - Replacement 65 COVER POLE in L (PL13.1.3)

3 - 209
Chapter 3 Removal and Replacement Procedures (RRPs)
Version 1 2006.11.28
Replacement 64 COVER POLE L (PL13.1.11)

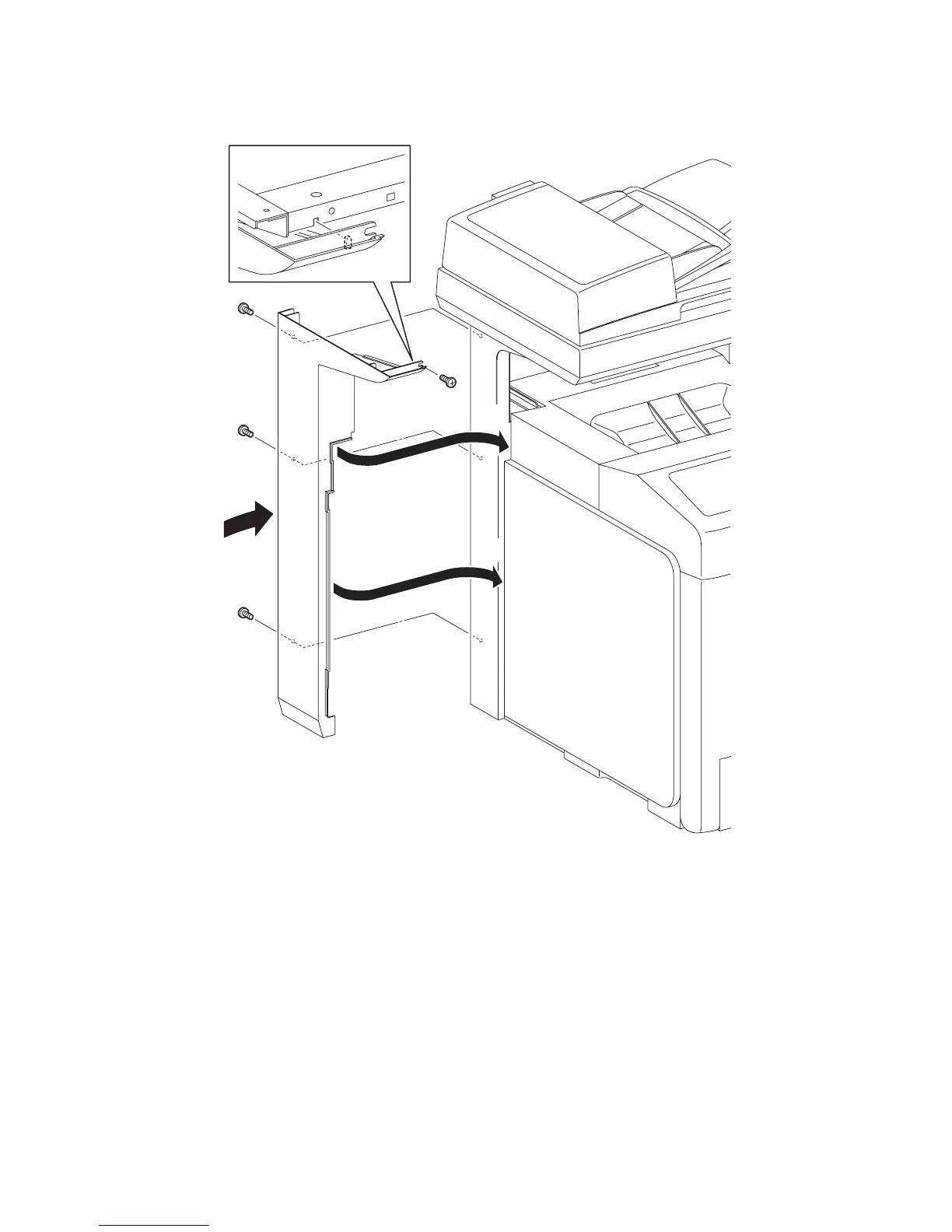

1) Replace the COVER POLE L to the printer by inserting the rim on the front section of the
COVER POLE L into the inside of the TOP COVER and the LEFT COVER.
2) Mate the lug of the front mounting section of the COVER POLE L with the notch of the
printer.
3) Secure the COVER POLE L to the printer using the four screws (silver, 6mm).
Go to the next replacement step:
Replacement 65 COVER POLE IN L (PL13.1.3)
Gnb03210KA
3)
3)
3)
1)-1
1)-1
1)-2
3)
2)
