Dell 3115CN - Replacement 7 SEPARATOR ROLLER (PL2.2.17) (same as the FEED ROLLER)

3 - 119
Chapter 3 Removal and Replacement Procedures (RRPs)
Version 1 2006.11.28
Replacement 7 SEPARATOR ROLLER (PL2.2.17) (Same as the FEED ROLLER)

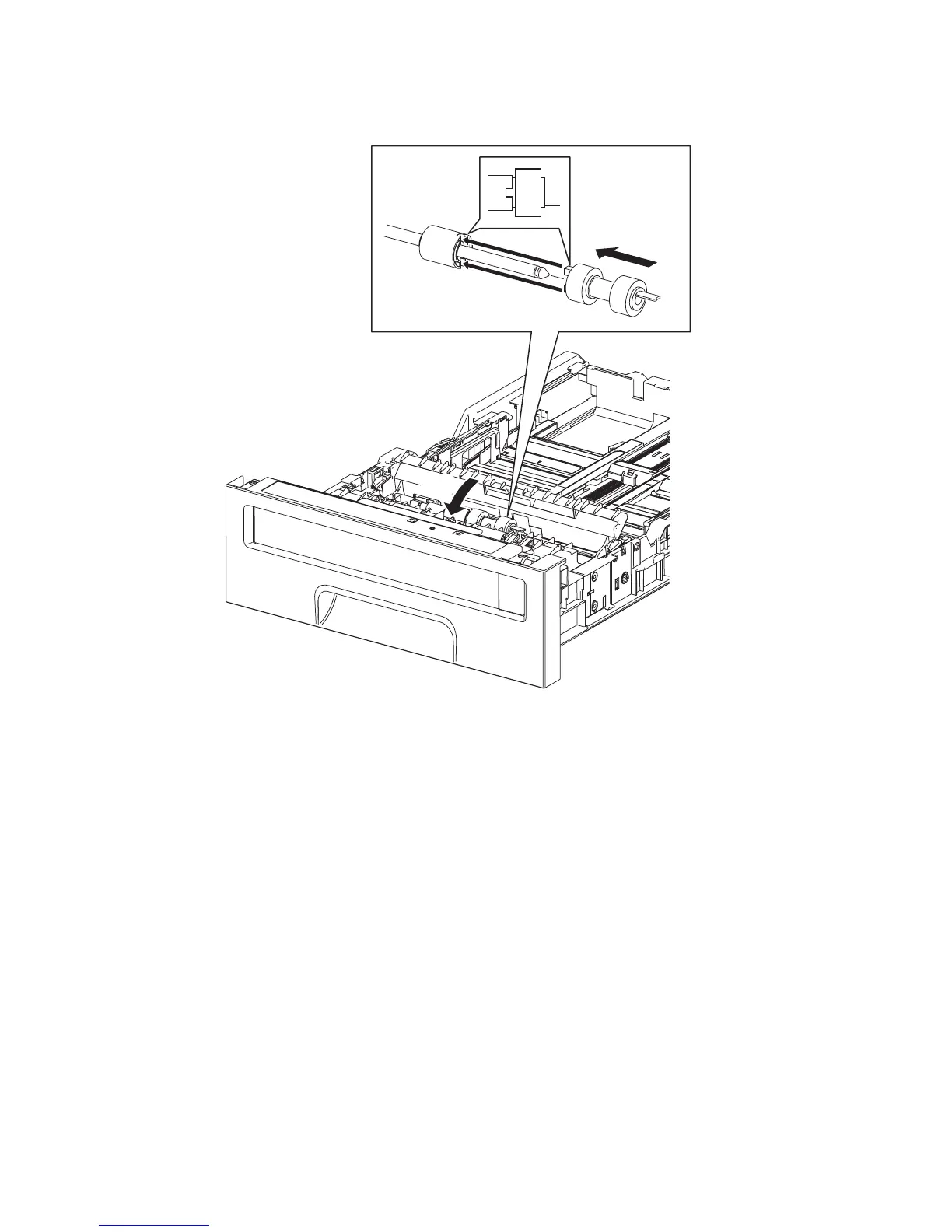

1) Slide the SEPARATOR ROLLER onto the SHAFT RETARD so that the lug on the SEPARA-
TOR ROLLER is mated with the notch on the CLUTCH FRICTION RET (PL2.2.16). Secure
the hook on the other end of the SEPARATOR ROLLER into the groove on the SHAFT
RETARD.
2) Close the CVR RTD CST.
3) Replace the 250 SHEET PAPER TRAY.
Kmy03115KA
2)
1)
