Dell 3115CN - Removal 61 ELECTRONIC SUB-SYSTEM CONTROL BOARD (PL13.4.20)

3 - 90
Chapter 3 Removal and Replacement Procedures (RRPs)
Version 2 2007.03.20
Removal 61 ELECTRONIC SUB-SYSTEM CONTROL BOARD (PL13.4.20)
Use a wristband to protect the PWB from electrostatic damage.
Steps 1 through 5 are for reference. Before removing this component, check that Steps 1 through 5
have been performed.
1) Remove the REAR COVER. (Removal 49)
2) Remove the COVER BOTTOM. (Removal 50)
3) Remove the COVER POLE IN L. (Removal 57)
4) Remove the COVER POLE L. (Removal 58)
5) Remove the BOX ASSY PRT AIO. (Removal 60)

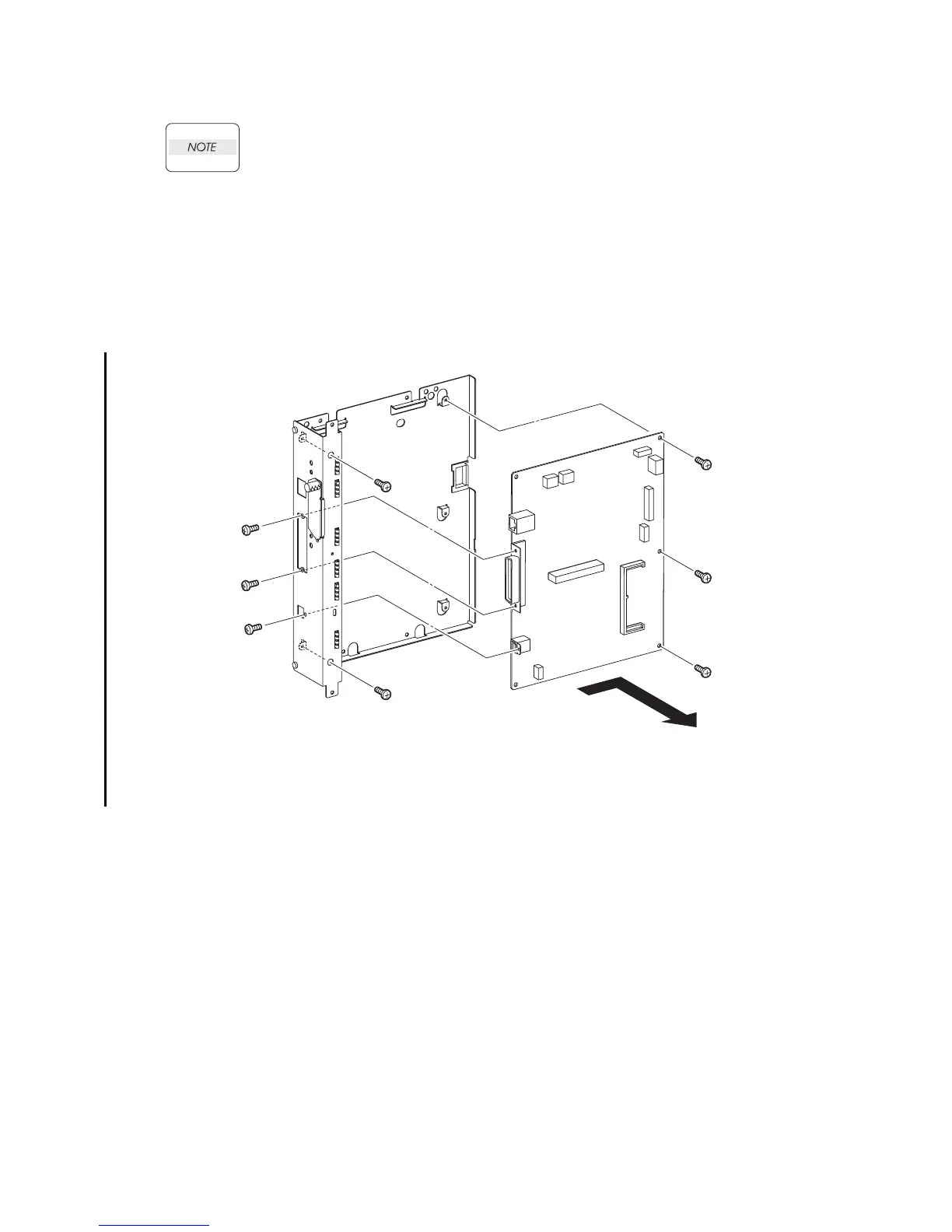

6) Remove the three screws (silver, 6mm) that fix the connector section of the ELECTRONIC
SUB-SYSTEM CONTROL BOARD (PL13.4.20) to the BOX ASSY PRT AIO (PL13.4.13).
7) Remove the five screws (silver, 6mm) that fix the ELECTRONIC SUB-SYSTEM CONTROL
BOARD to the BOX ASSY PRT AIO.
8) Remove the ELECTRONIC SUB-SYSTEM CONTROL BOARD from the BOX ASSY PRT AIO.
Gnb03169KB
6)
6)
6)
7)
7)
7)
7)
7)
8)
