3 - 34
Chapter 3 Removal and Replacement Procedures (RRPs)
Version 1 2006.11.28
Removal 19 SIZE SWITCH ASSEMBLY (PL7.1.18)
Steps 1 through 7 are for reference. Before removing this component, check that Steps 1 through 7
have been performed.
1) Open FRONT COVER (PL13.2.1).
2) Remove the FUSER.(Removal 8)
3) Remove the REAR COVER. (Removal 49)
4) Remove the COVER BOTTOM. (Removal 50)
5) Remove the COVER POLE IN R.(Removal 51)
6) Remove the COVER POLE R.(Removal 52)
7) Remove the RIGHT COVER. (Removal 54)

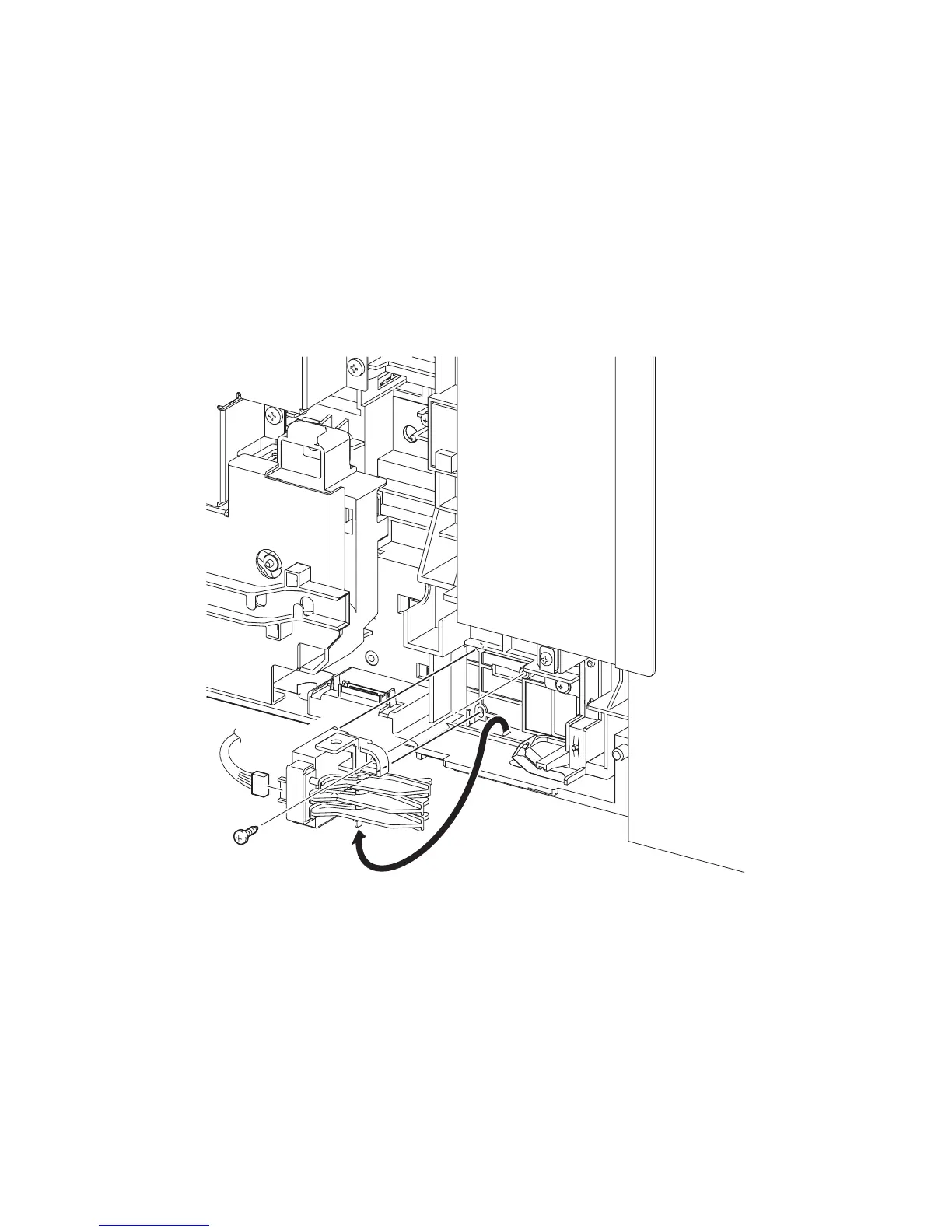

8) Disengage the connector (P/J231) of the SIZE SWITCH ASSEMBLY.
9) Remove the one screw (silver, tap, 10mm) that fixes the SIZE SWITCH ASSEMBLY to the
printer.
10) Remove the SIZE SWITCH ASSEMBLY by releasing the two bosses and the underside tab of
the SIZE SWITCH ASSEMBLY from the holes on the printer.
Gnb03029KA
8)
9)
10)
To Next Page
