Dell 3115CN - Removal 44 550 TRAY FEED ROLLER (PL12.3.29)

3 - 68
Chapter 3 Removal and Replacement Procedures (RRPs)
Version 1 2006.11.28
Removal 44 550 TRAY FEED ROLLER (PL12.3.29)
1) Remove the 550 SHEET PAPER TRAY (PL12.4.1) from the 550 SHEET FEEDER
ASSEMBLY (PL13.7.1).

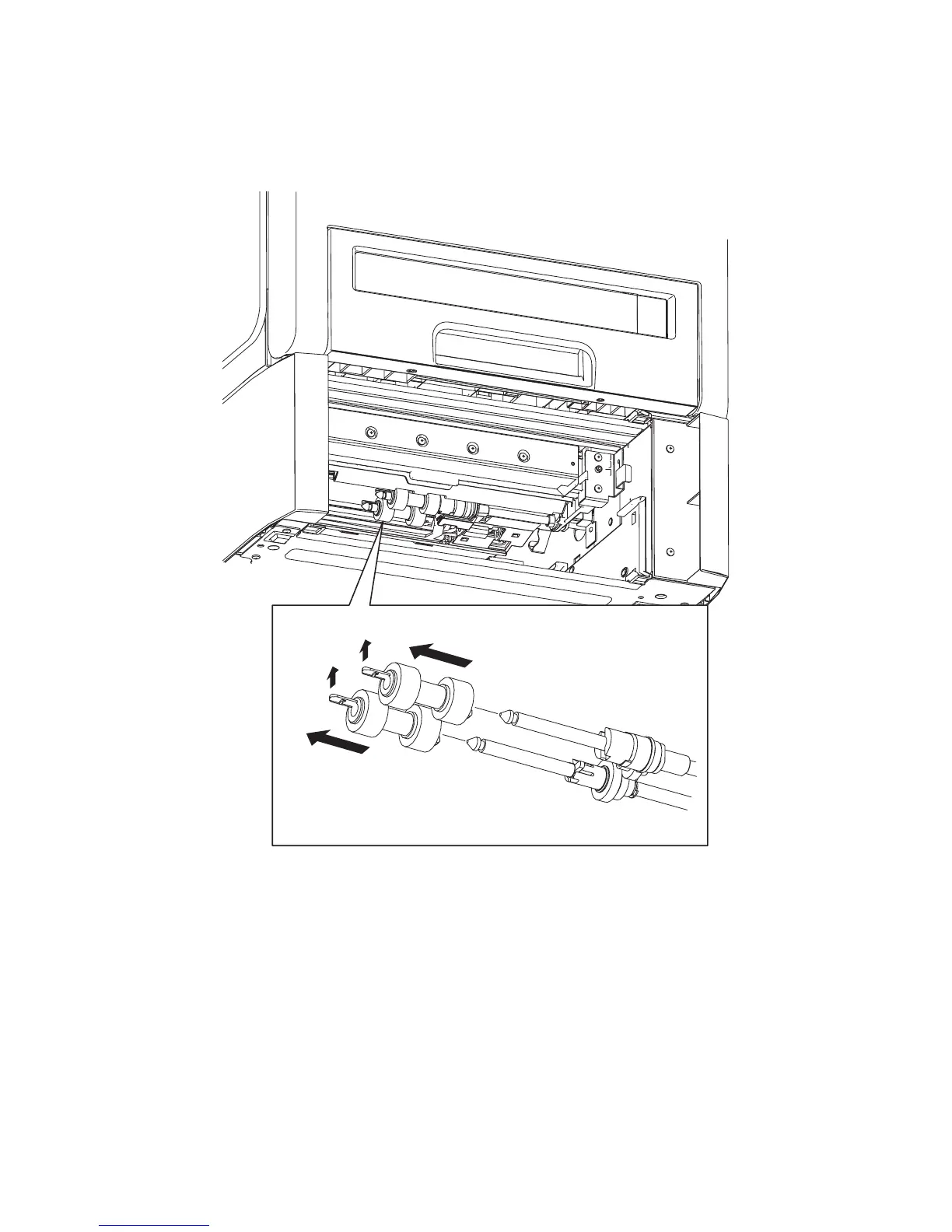

2) Release the hooks of the 550 TRAY FEED ROLLERs (PL12.3.29), and then remove the 550
TRAY FEED ROLLERs from the shafts.
Kmy03060KA
2)-1
2)-1
2)-2
2)-2
