Dell 3115CN - Fip-1. 38 Paper Jam 072-100;Illegal Settings (Copy Select Tray Boken)

1‑127
Chapter 1 Troubleshooting
Version 2 2007.05.22

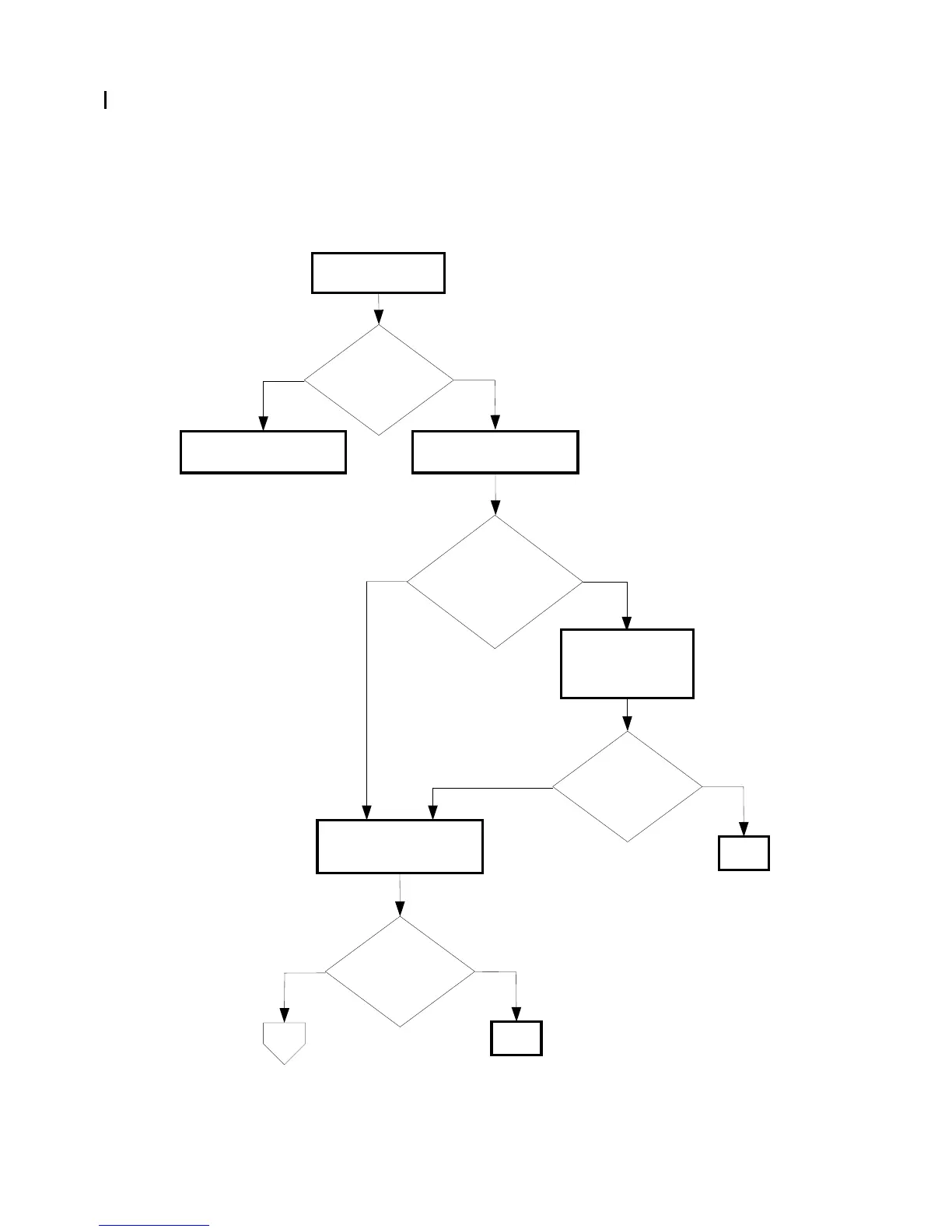

FIP-1. 38 Paper Jam 072-100/Illegal Settings (Copy Select Tray Boken)
No
Yes
Possible causative parts:KIT FEEDER (PL3.2.99)
550 PAPER CASSETTE ASSY (PL12.4.1)
KIT ROLLER (PL12.3.99)
550 OPTION FEEDER (PL13.7.1)
PWBA MCU (PL9.1.20)
Checking the paper
condition
Checking the paper size
setup
No
Yes
Checking the Paper
Cassette installation
Reseat the paper cassette.
Does the paper size in
use match the size set
through the control panel?
A
Replace the paper with a
new and dry one.
Is the paper in the
Tray wrinkled or
damaged?
No
Yes
Checking the paper
size setting
Correct the paper
size setting.
Does the error still
occur when printing?
END
No
Yes
Does the error still
occur when printing?
END
