Dell 3115CN - Page 154

1‑128
Chapter 1 Troubleshooting
Version 1 2006.11.21
B
A

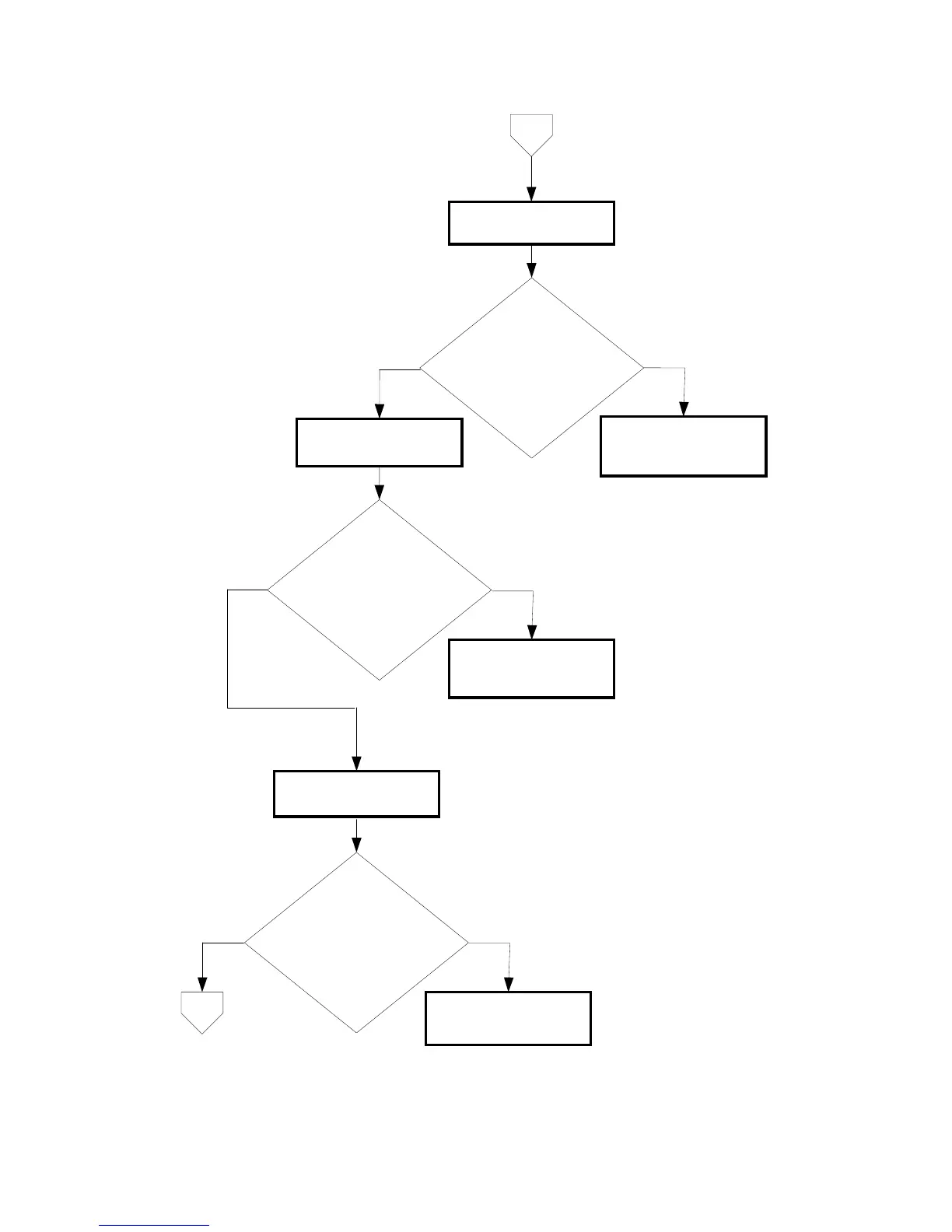

Checking the Regi Sensor
for operation
No
Yes
Checking the Feed Motor
for operation
Does the number
on the screen increase by one,
every time the actuator of the regi
sensor is operated?
Checked by [Digital Input]-[DI-3]
in [IOT Diagnosis].
No
Yes
Checking the Feed Clutch
for operation
No
Yes
Replace the KIT FEEDER.
(Removal 16/Replacement
30)
Replace the 550 OPTION
FEEDER. (Removal 42/
Replacement 4)
Replace the 550 OPTION
FEEDER. (Removal 42/
Replacement 4)
Does the feed motor operate
properly?
Checked by [Digital Output]-[DO-
19] in [IOT Diagnosis].
Does the feed clutch operate
properly?
Checked by [Digital Output]-[DO-
31] in [IOT Diagnosis].
