Chapter 3 Removal and Replacement Procedures (RRPs)
Version 2 2007.03.20
Removal 18 RIGHT ARM ASSEMBLY (PL13.3.98)

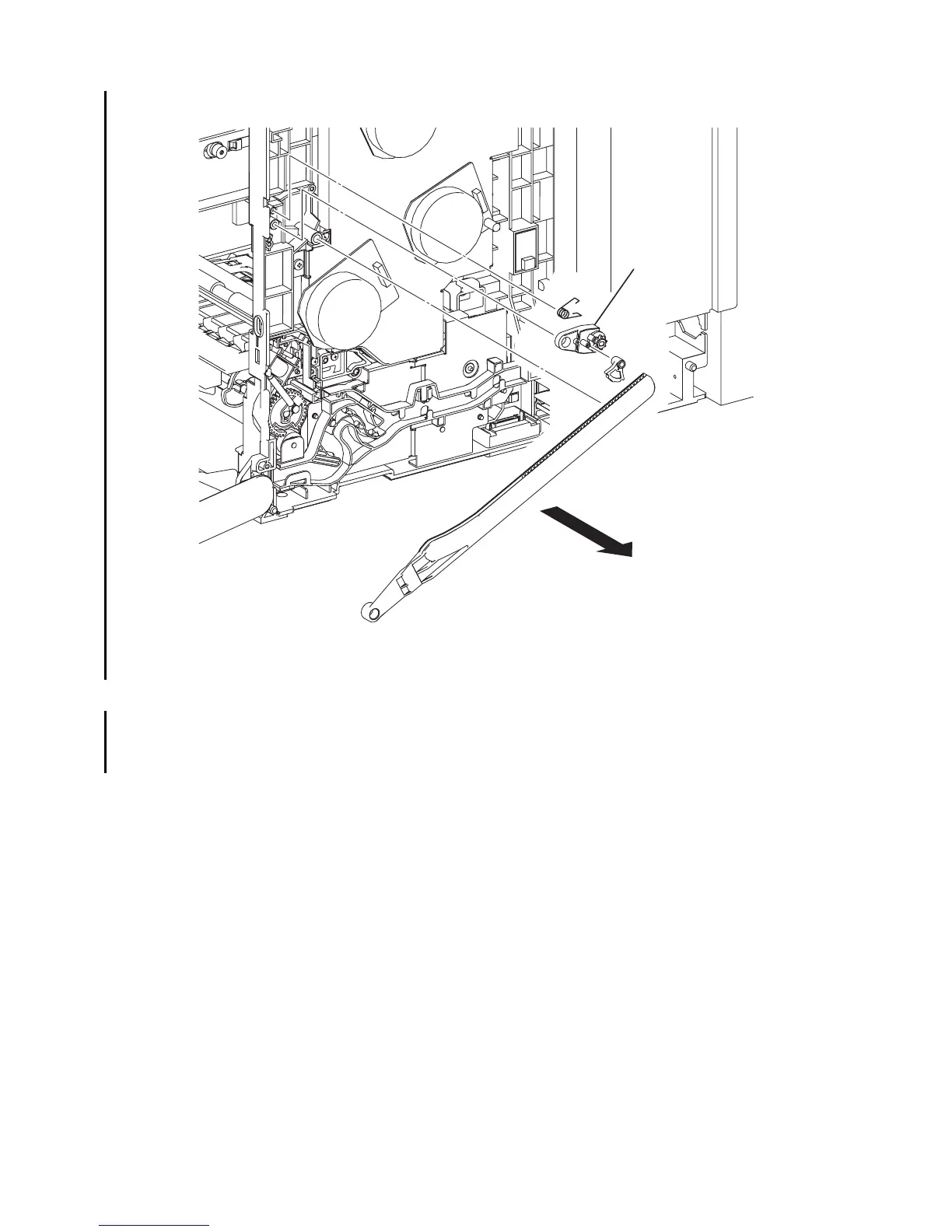

11) Remove the LEVER RELEASE (PL13.3.17) from the printer.
12) Remove the LINK R from the printer.
13) Remove the SPRING SUPPORT (PL13.3.16) from the printer.
14) Remove the HOLDER DAMPER H (PL13.3.18) from the printer together with the DAMPER
OIL H (PL13.3.19).
Gnb03028KB
12)
11)
13)
14)
(Yellow)
