Chapter 3 Removal and Replacement Procedures (RRPs)
Version 1 2006.11.28
Removal 71 FAN (PL13.5.10)

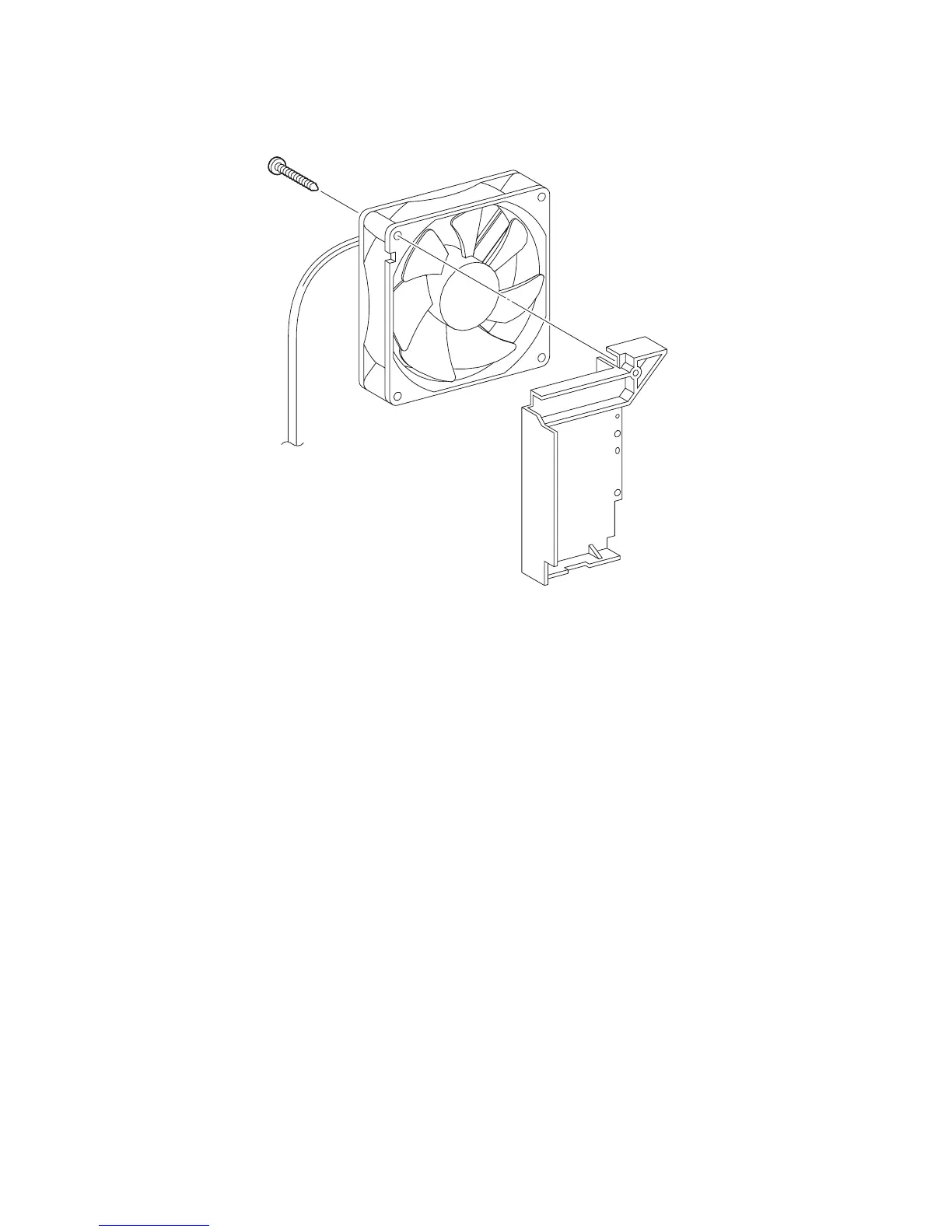

19) Remove the one screw (silver, tap, 32mm) that fix the PLATE DUCT to tha FAN.
20) Remove the PLATE DUCT from the FAN.
Gnb03226KA
19)
20)
