Chapter 1 Troubleshooting
Version 1 2006.11.21

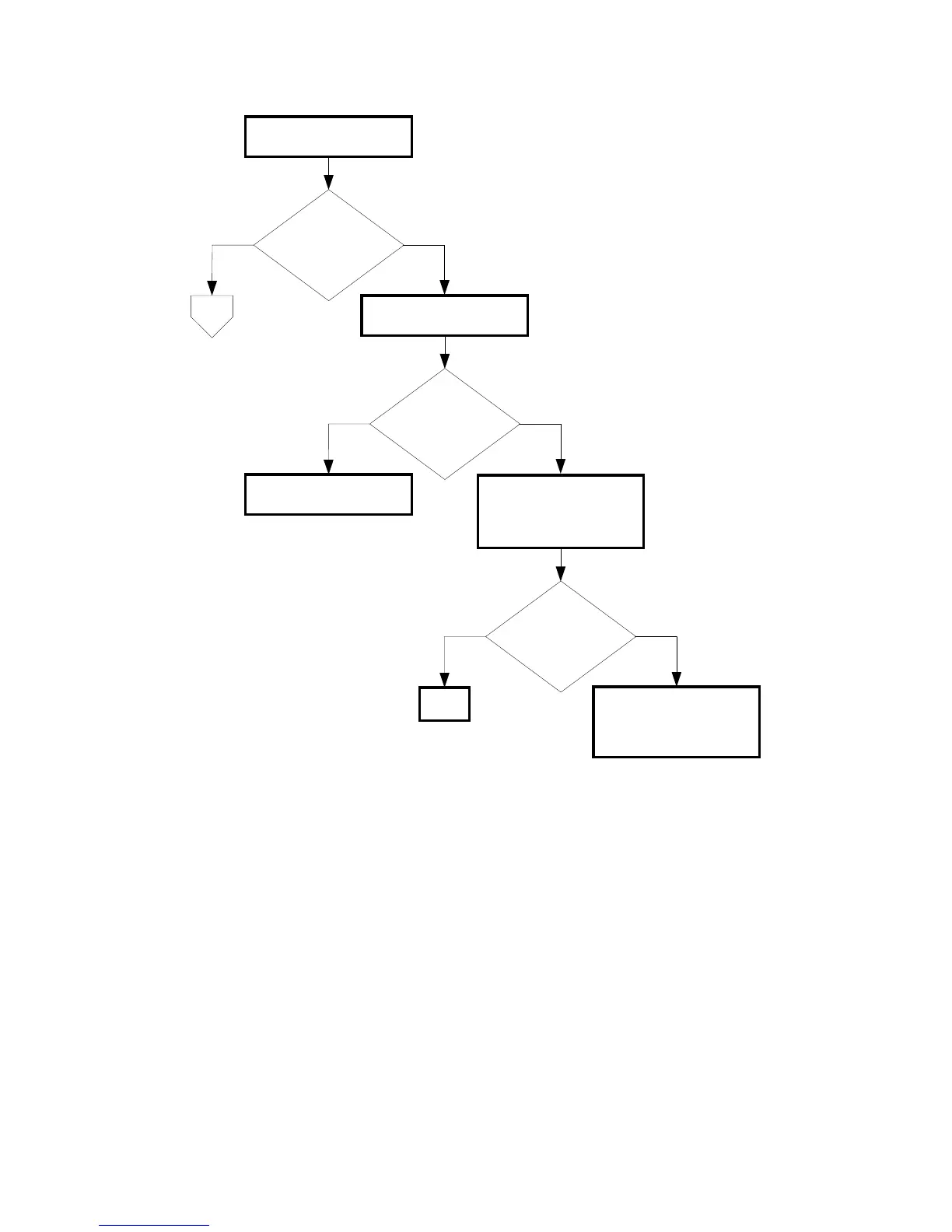

Does the error occur
when printing or
faxing?
NoYes
Checking the error mode
Is the
document on the
ADF or platen glass
with wrong face up?
NoYes
Checking the document
setting
Set the document.
Is the image printed
correctly?
NoYes
Cheking the connector
connection
Reseat the connectors (P/J
64, 65) on the PWBA HYUI
Replace the ADF
SCANNER ASSY
(Removal 72/Replacement
50)
END
