8.2 Operation Mode

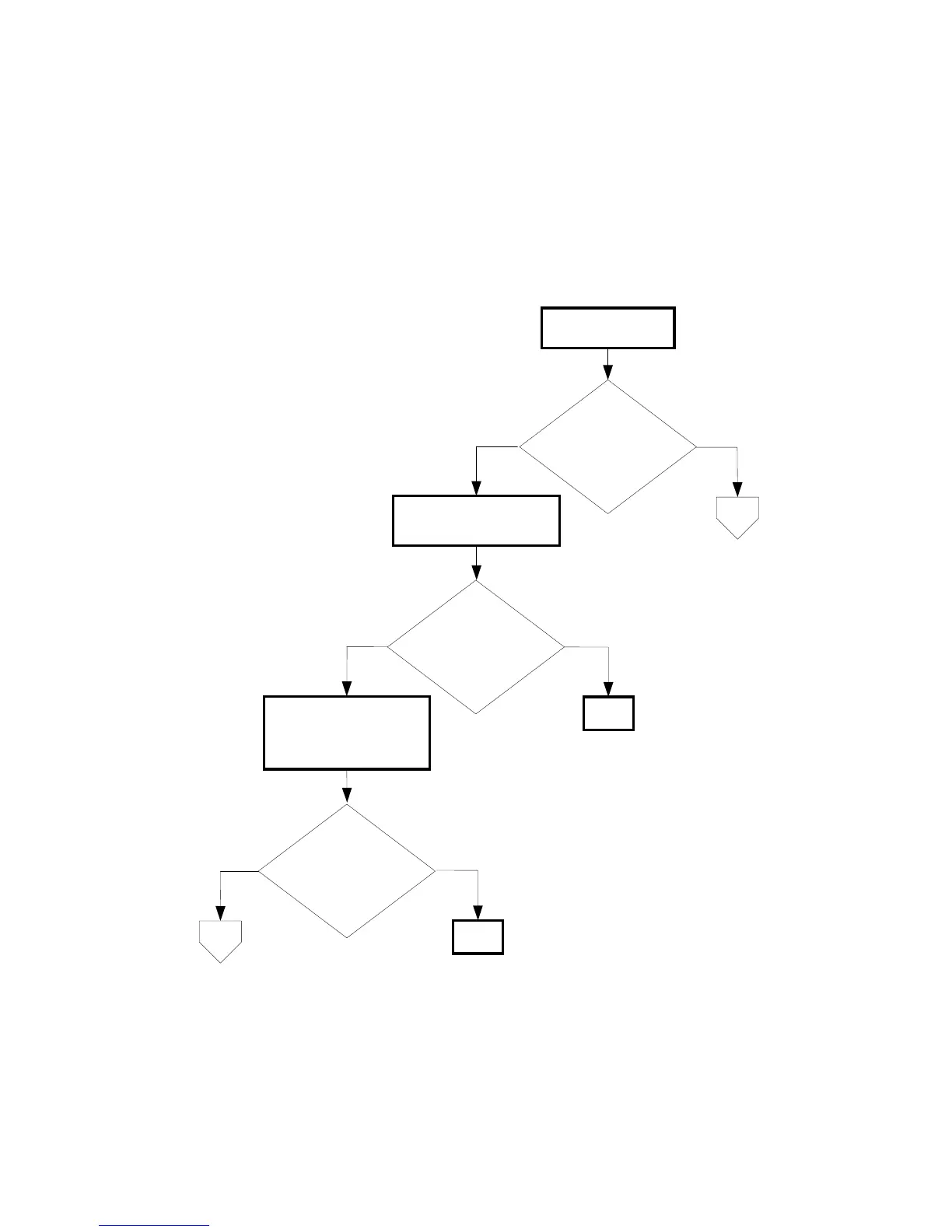

FIP-1.N1 When Power is Turned On
No
Yes
Possible causative parts:BELT CRU (PL4.1.1)
CARTRIDGE ASSY (PL5.1.18 (K)/PL5.1.19 (C)/PL5.1.20 (M)/PL5.1.21 (Y))
FUSER ASSY (PL6.1.10)
DRIVE ASSY MAIN (PL8.1.2)
DRIVE ASSY PH (PL8.1.7)
550 OPTION FEEDER (PL13.7.1)
Checking the Main
Motor.
Checking the FUSER
ASSY installation
Reseat the FUSER ASSY.
Does the noise
arise from the printer?
Checked by [Digital
Output]-[DO-0] in [IOT
Diagnosis].
No
Yes
Checking the Black Toner
Cartridge installation
Reseat the Black Toner
Cartridge.
END
No
Yes
END
Does the noise
arise from the printer?
Checked by [Digital
Output]-[DO-0] in [IOT
Diagnosis].
Does the noise
arise from the printer?
Checked by [Digital
Output]-[DO-0] in [IOT
Diagnosis].
A
B
