2 - 19
Chapter 2 Operation of Diag.
Version 1 2006.11.21
DI-10 MPF No Paper Sensor
DI-11 Tray 1 No Paper Sensor
DI-12 Main Motor Alarm (Not Used)
DI-13 Sub Motor Alarm (Not Used)
DI-14 OHP Sensor (Not Used)
DI-15 Fan Alarm (Not Used)
DI-16 Feed Drive Alarm (Not Used)
DI-17 Deve Motor Alarm (Not Used)
DI-18 Tray 1 Paper Size Switch
DI-20 Tray 2 Paper Size Switch

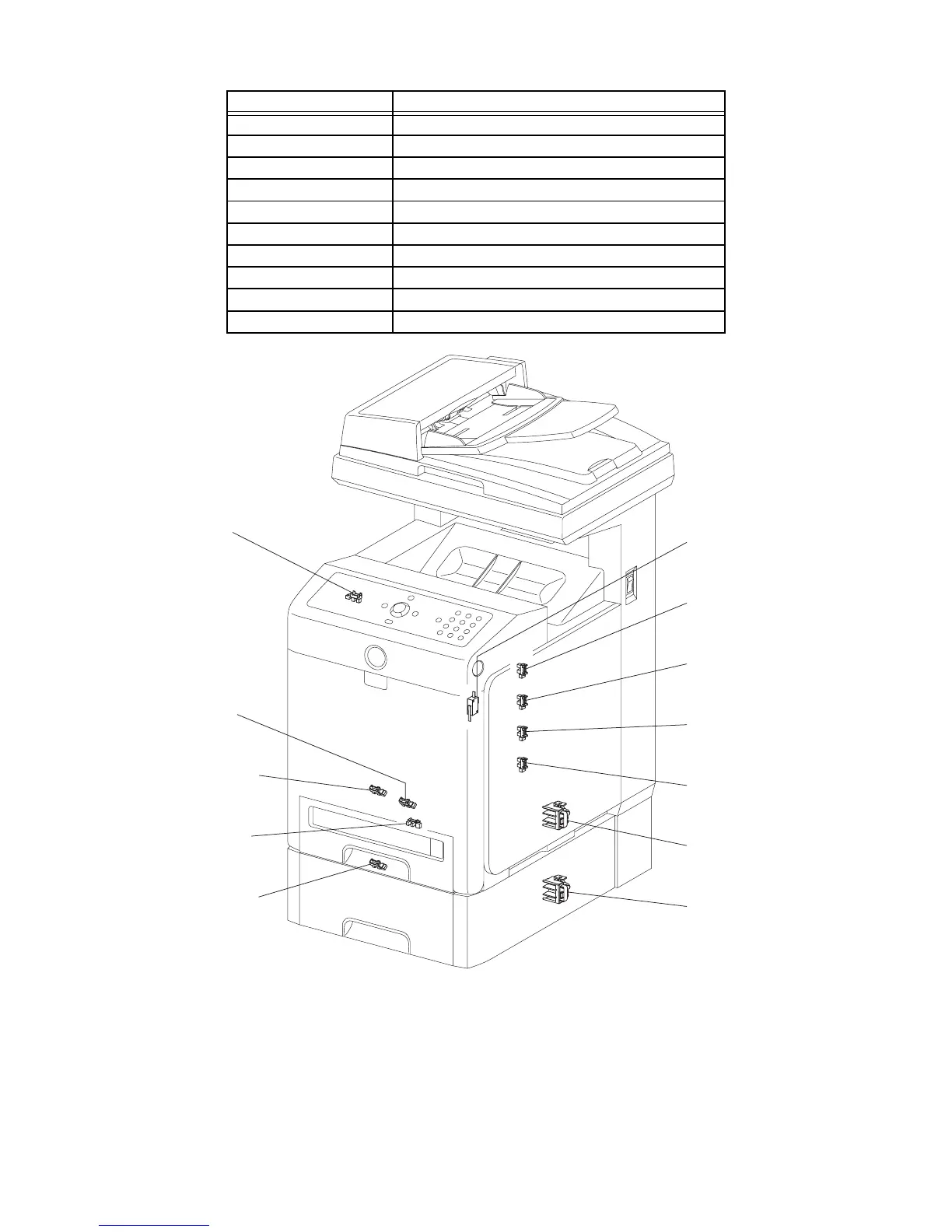

Code Components
Gnb02002KA
Black Toner
Cartridge Sensor
[DI-a]
Cyan Toner
Cartridge Sensor
[DI-b]
Magenta Toner
Cartridge Sensor
[DI-9]
Yellow Toner
Cartridge Sensor
[DI-8]
Tray 1 Paper
Size Switch
[DI-18]
Tray 1 No Paper
Sensor
[DI-11]
MPF No Paper
Sensor
[DI-10]
Tray 2 No Paper
Sensor
[DI-d]
Tray 2 Paper
Size Switch
[DI-20]
Exit Sensor
[DI-2]
Regi Sensor
[DI-3]
Front Cover
Interlock Switch
[DI-7]
