2 - 45
Chapter 2 Operation of Diag.
Version 1 2006.11.21
Tray 1 Feed Clutch (DO-2f)
1) Turn on the power and enter the Printer Diag.
2) Execute the DO-2f. Upon hitting the "return" key, the operat-
ing noise of the clutch will be heard.
3) Press the "Cancel" key to stop the clutch.
Combination test is as follows.
NOTE: The Tray 1 feed roll rotates when the DO-a and the DO-2f are
executed. This procedure is for the technical staff.
1) Turn on the power and enter the Printer Diag.
2) Remove the Tray 1 paper cassette.
3) Execute the DO-a and the DO-2f.
4) Confirm the feed Roll rotation.
5) Press the "Cancel" key to stop the clutch.
6) Press the "" key to display the DO-a.
7) Press the "Cancel" key to stop the motor.
8) Replace the Tray 1 paper cassette.
Clutch and Solenoid name
(Diag. Code)
Confirmation procedure

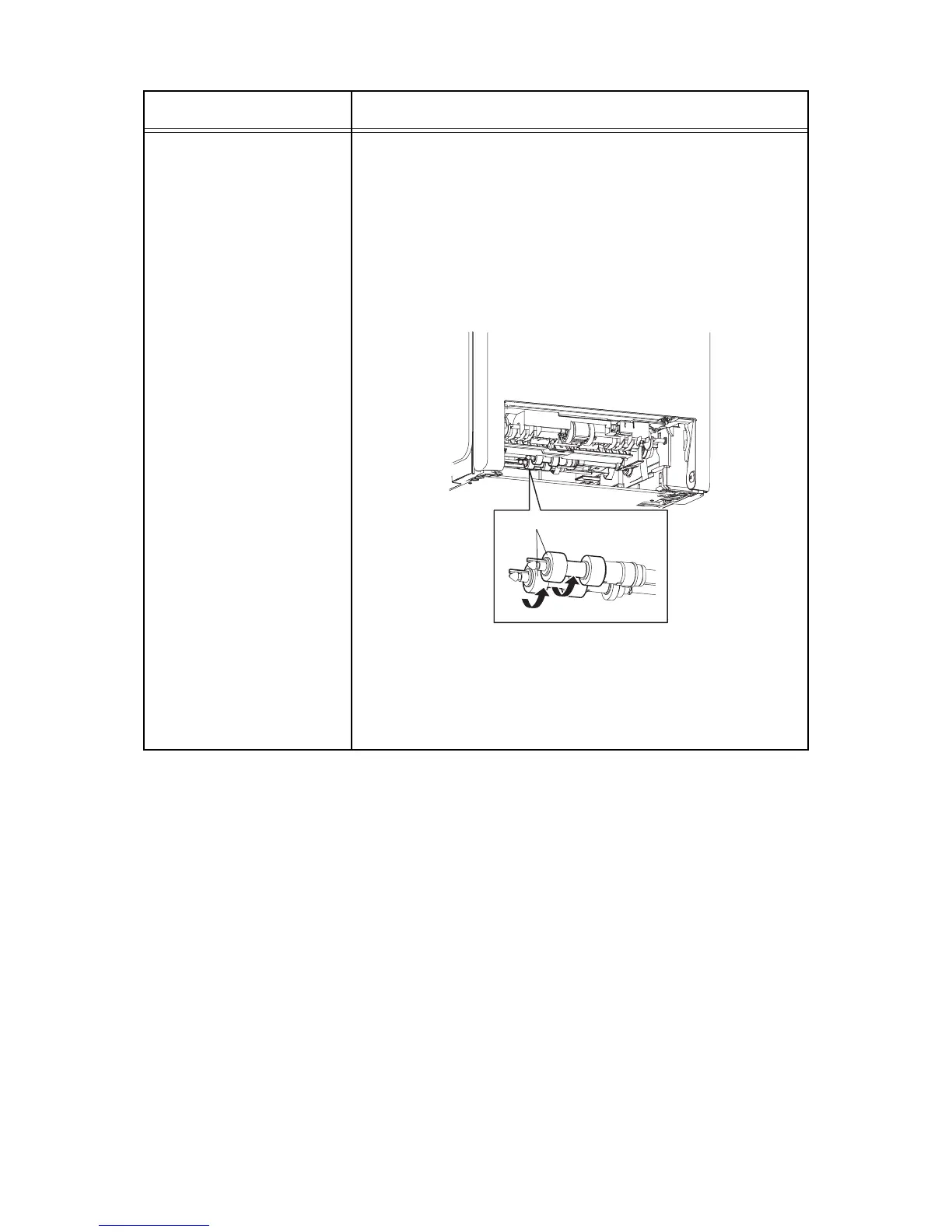

Kmy02031KA
Tray 1 Feed Roll
