2 - 51
Chapter 2 Operation of Diag.
Version 2 2007.03.14

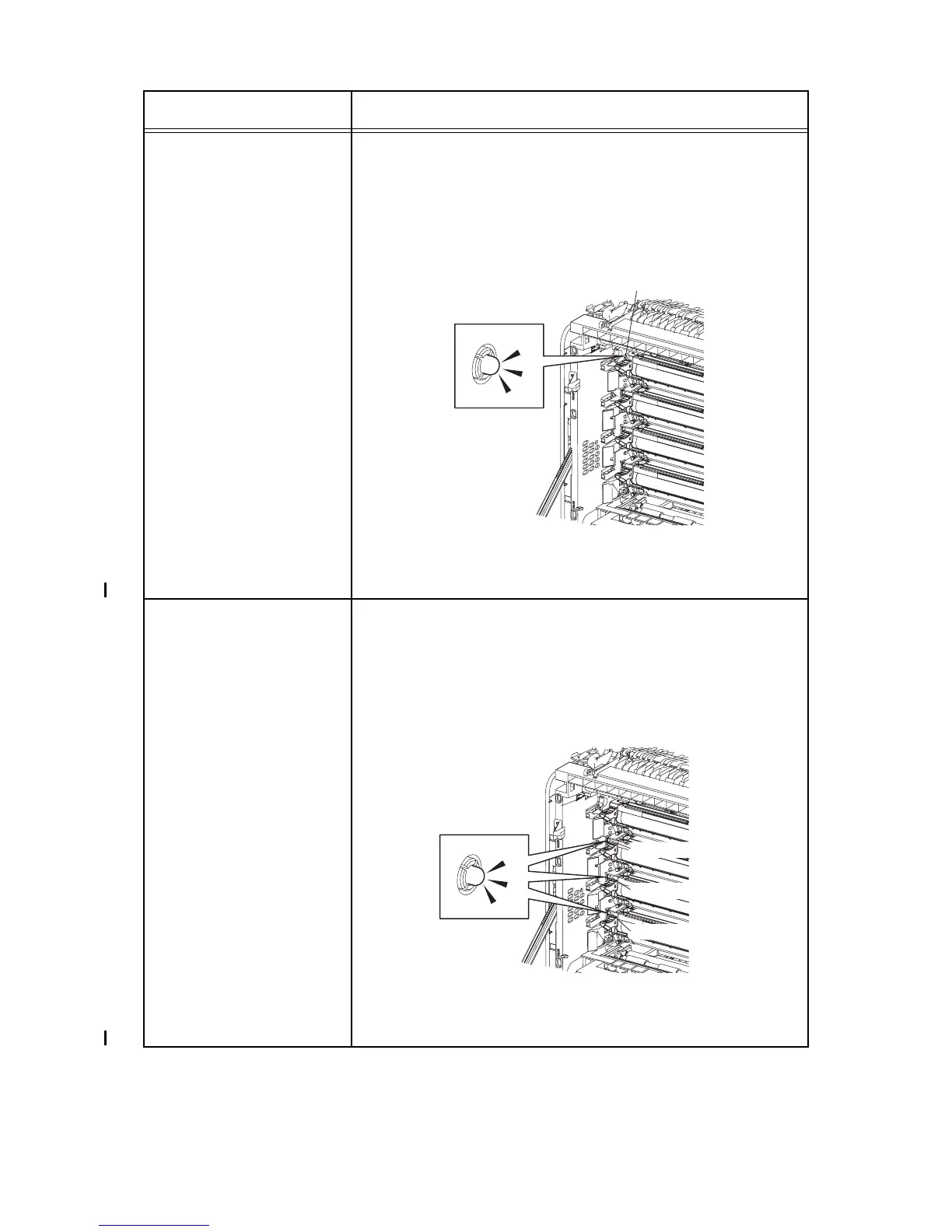

Black Drum Erase Lamp
(DO-3d)
NOTE: This procedure is for the technical staff.
When performing operation for five minutes or longer with the front
cover open, remove all toner cartridges, and cover the drum to avoid
exposure to light.
1) Turn on the power and enter the Printer Diag.
2) Open the Front Cover.
3) Cheat the safety Interlock System.
4) Execute the DO-3d.
5) Press the "Cancel" key to stop the LED lighting.
6) Remove the cheater and close the Front Cover.
Yellow, Magenta and Cyan
Drum Erase Lamp (DO-3f)
NOTE: This procedure is for the technical staff.
When performing operation for five minutes or longer with the front
cover open, remove all toner cartridges, and cover the drum to avoid
exposure to light.
1) Turn on the power and enter the Printer Diag.
2) Open the Front Cover.
3) Cheat the safety Interlock System.
4) Execute the DO-3f.
5) Press the "Cancel" key to stop the LED lighting.
6) Remove the cheater and close the Front Cover.
Clutch and Solenoid name
(Diag. Code)
Confirmation procedure
Kmy02037K
A
Black Erase Lamp
Kmy02038K
A
Cyan Erase Lamp
Magenta Erase Lamp
Yellow Erase Lamp
