3 - 17
Chapter 3 Removal and Replacement Procedures (RRPs)
Version 1 2006.11.28
Removal 9 SPUR ASSEMBLY (PL7.1.1)
Described below is the removal procedure common between the left and right sides of the
SPUR ASSEMBLY.
Steps 1 and 2 are for reference. Before removing this component, check that Steps 1 and 2 have been
performed.
1) Open the FRONT COVER (PL13.2.1).
2) Remove the FUSER. (Removal 8)

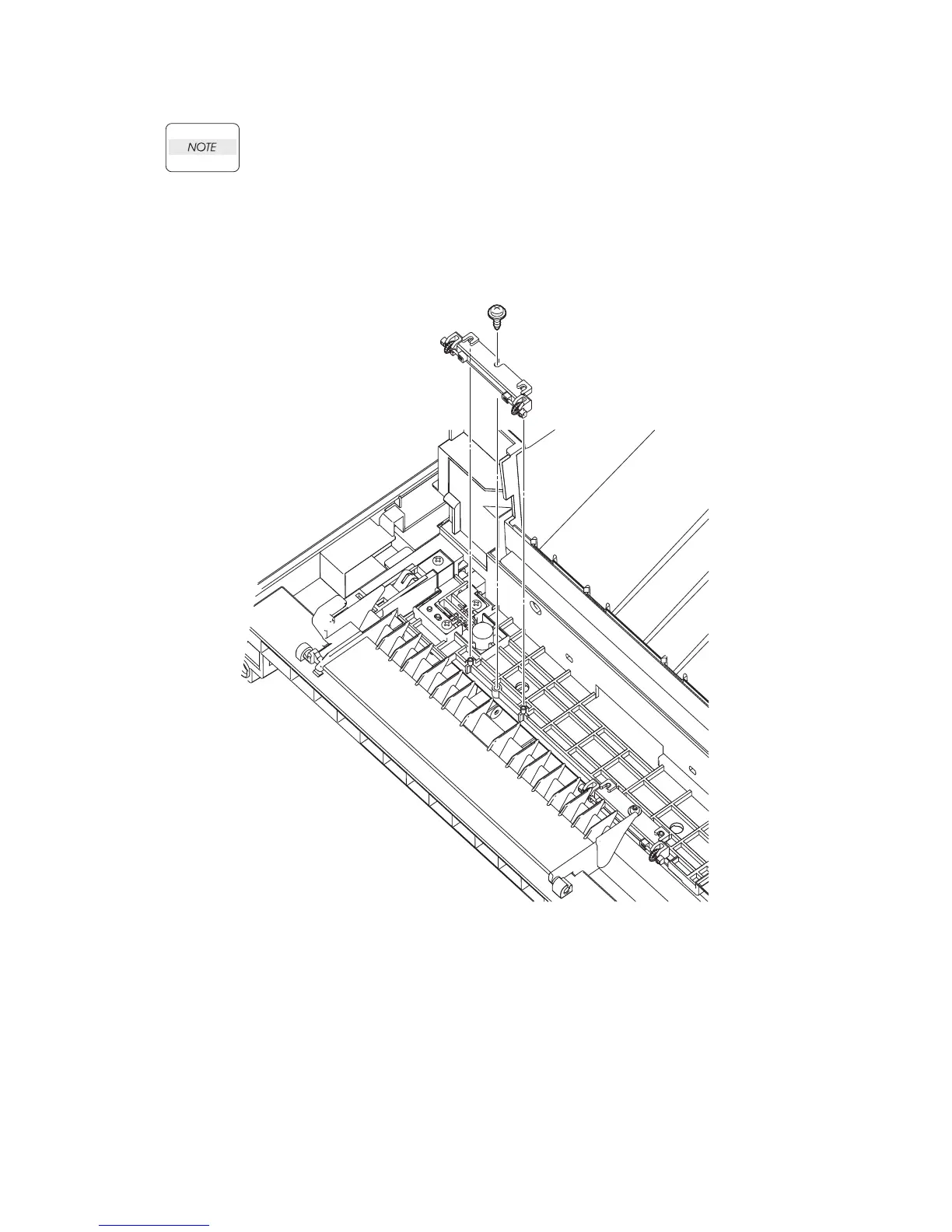

3) Remove the one screw (silver, with flange, tap, 8mm) that fixes the SPUR ASSEMBLY to the
printer.
4) Remove the SPUR ASSEMBLY from the printer.
Kmy03012KA
3)
4)
To Next Page
