Chapter 3 Removal and Replacement Procedures (RRPs)
Version 1 2006.11.28

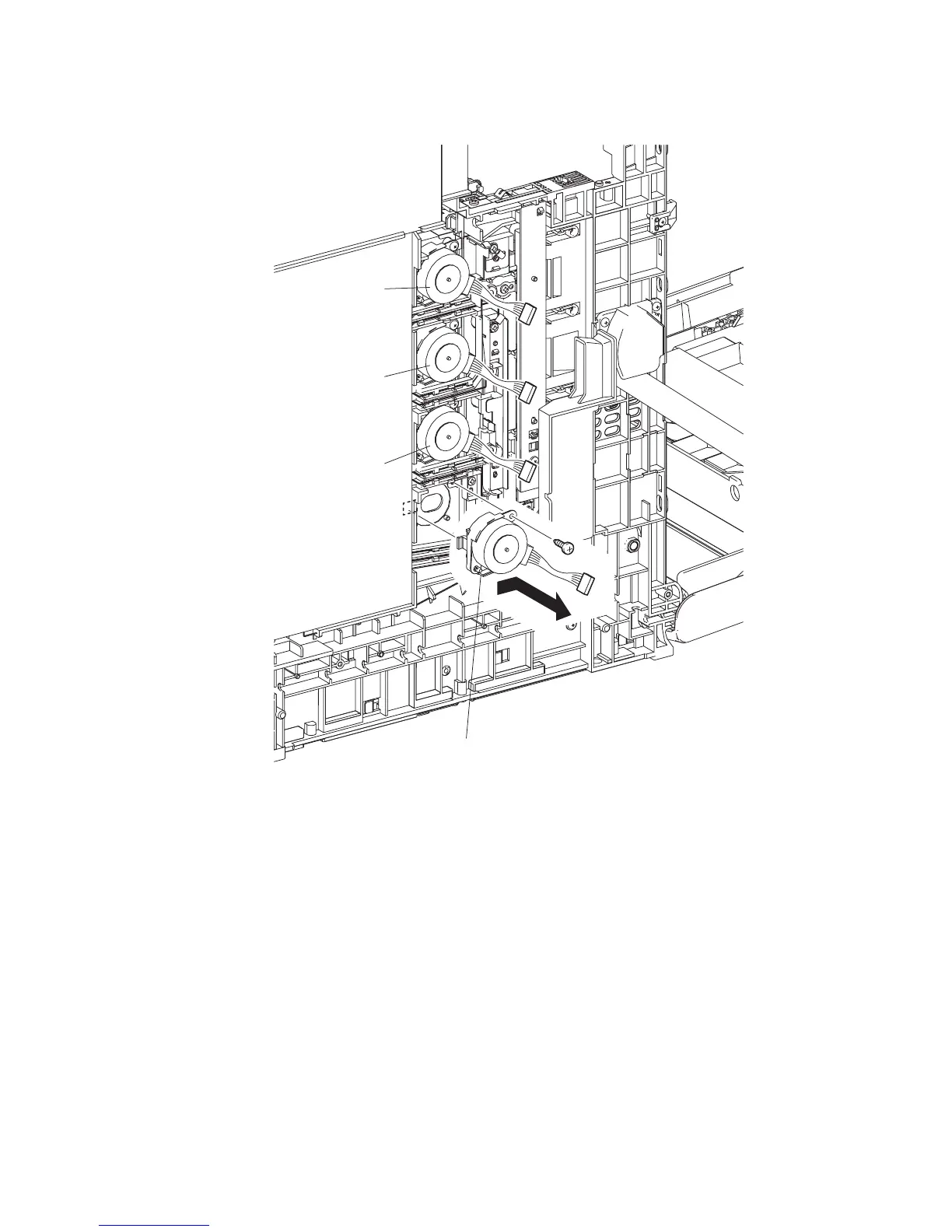

Removal 26 TONER DISPENSER MOTOR (PL5.1.12)
11) Remove the one screw (silver, tap, 10mm) that fixes the TONER DISPENSER MOTOR to the
printer.
12) Release the lug on the TONER DISPENSER MOTOR by moving the TONER DISPENSER
MOTOR slightly toward you. Remove the TONER DISPENSER MOTOR from the printer.
Gnb03039KA
11)
12)
TONER DISPENSERMOTOR (K)
TONER DISPENSERMOTOR (C)
TONER DISPENSERMOTOR (M)
TONER DISPENSERMOTOR (Y)
To Next Page
