Chapter 3 Removal and Replacement Procedures (RRPs)
Version 1 2006.11.28
Removal 74 ADF FEED ROLLER (PL13.8.3), ADF SEPARATOR PAD (PL13.8.5), ADF
SEPARATOR SPRING (PL13.8.6)

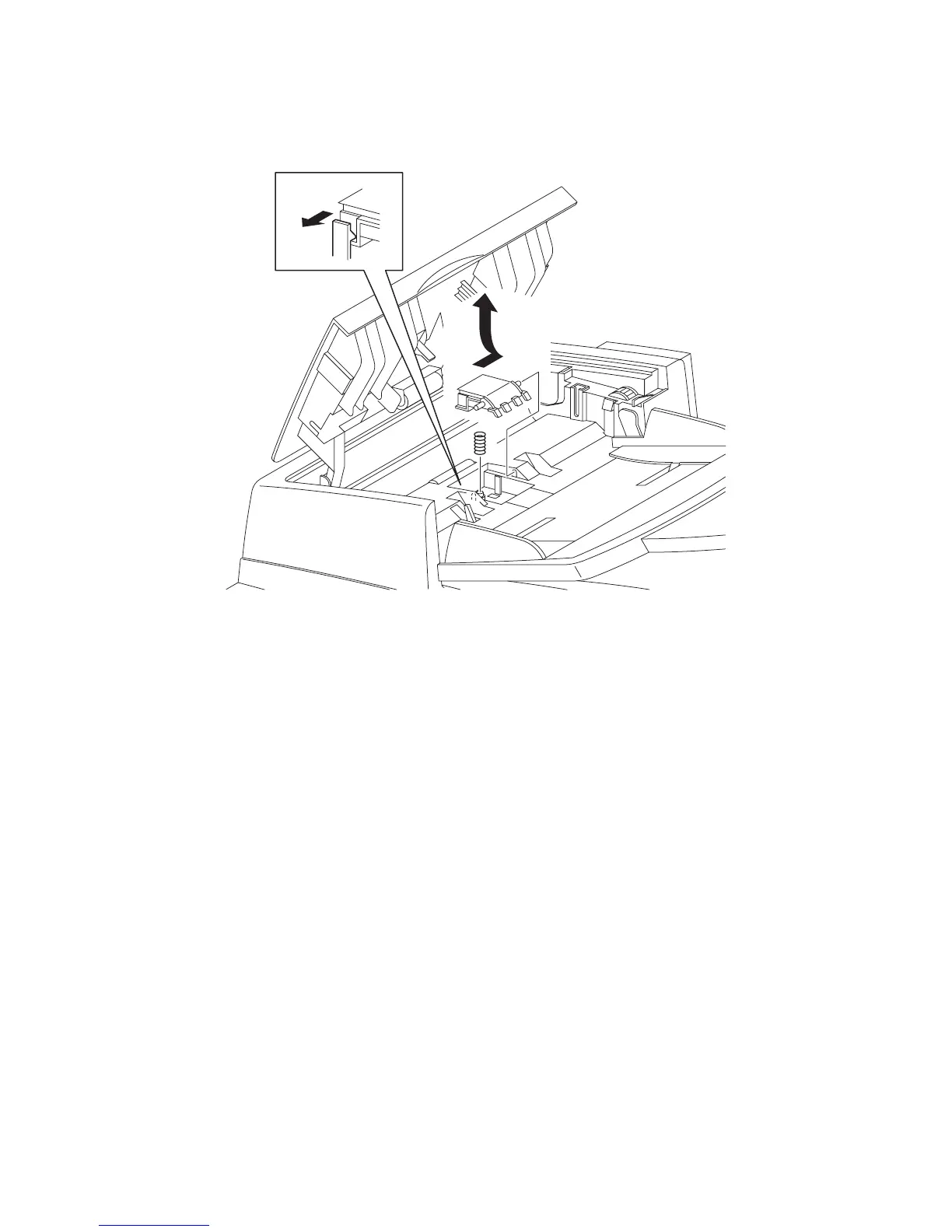

4) Release the hook that fixes the AFD SEPARATOR PAD (PL13.8.5) to the AFD ASSY.
5) Slide the ADF SEPARATOR PAD backward until the front shaft of the ADF SEPARATOR
PAD is released from the hole on the ADF ASSY, and then remove the ADF SEPARATOR
PAD by releasing the rear shaft.
6) Remove the ADF SEPARATOR SPRING (PL13.8.6) from the boss on the ADF ASSY.
Gnb03187KA
4)
5)
6)
