3 - 141
Chapter 3 Removal and Replacement Procedures (RRPs)
Version 2 2007.03.20

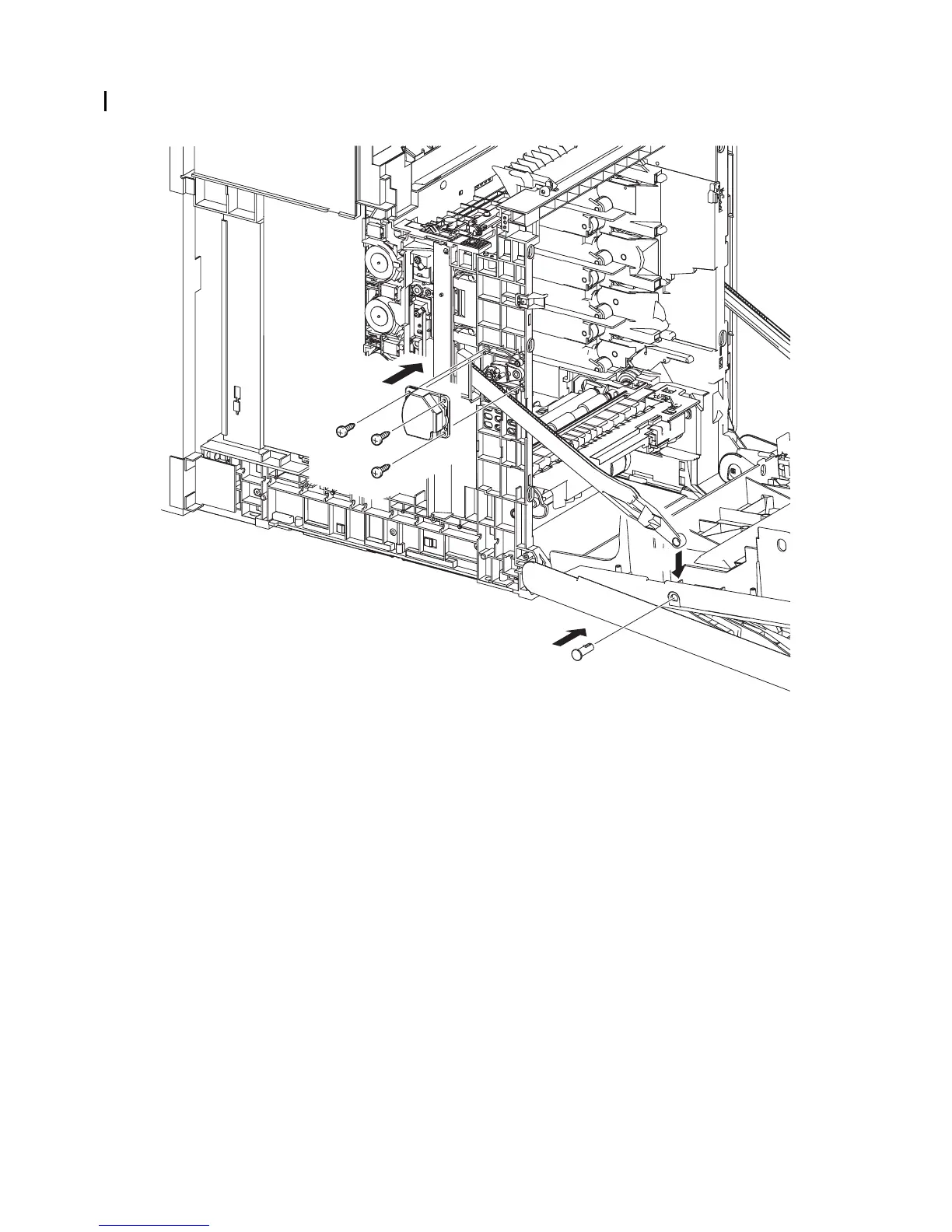

Replacement 22 LEFT ARM ASSEMBLY (PL7.1.97)
5) Replace the SUPPORT LINK L by mating the two holes of the SUPPORT LINK L with the
bosses on the printer.
6) Secure the SUPPORT LINK L using the three screws (silver, tap, 8mm).
7) Mate the fitting hole on the LINK L with the left side fitting hole on the FRONT COVER.
Insert the SHAFT PIVOT and secure with the hook.
Go to the next replacement step:
Replacement 63 LEFT COVER (PL13.1.10)
Gnb03096KA
7)-2
7)-1
5)
6)
6)
6)
