3 - 158
Chapter 3 Removal and Replacement Procedures (RRPs)
Version 2 2007.03.20
Replacement 32 MPF FEED SOLENOID (PL3.1.98)

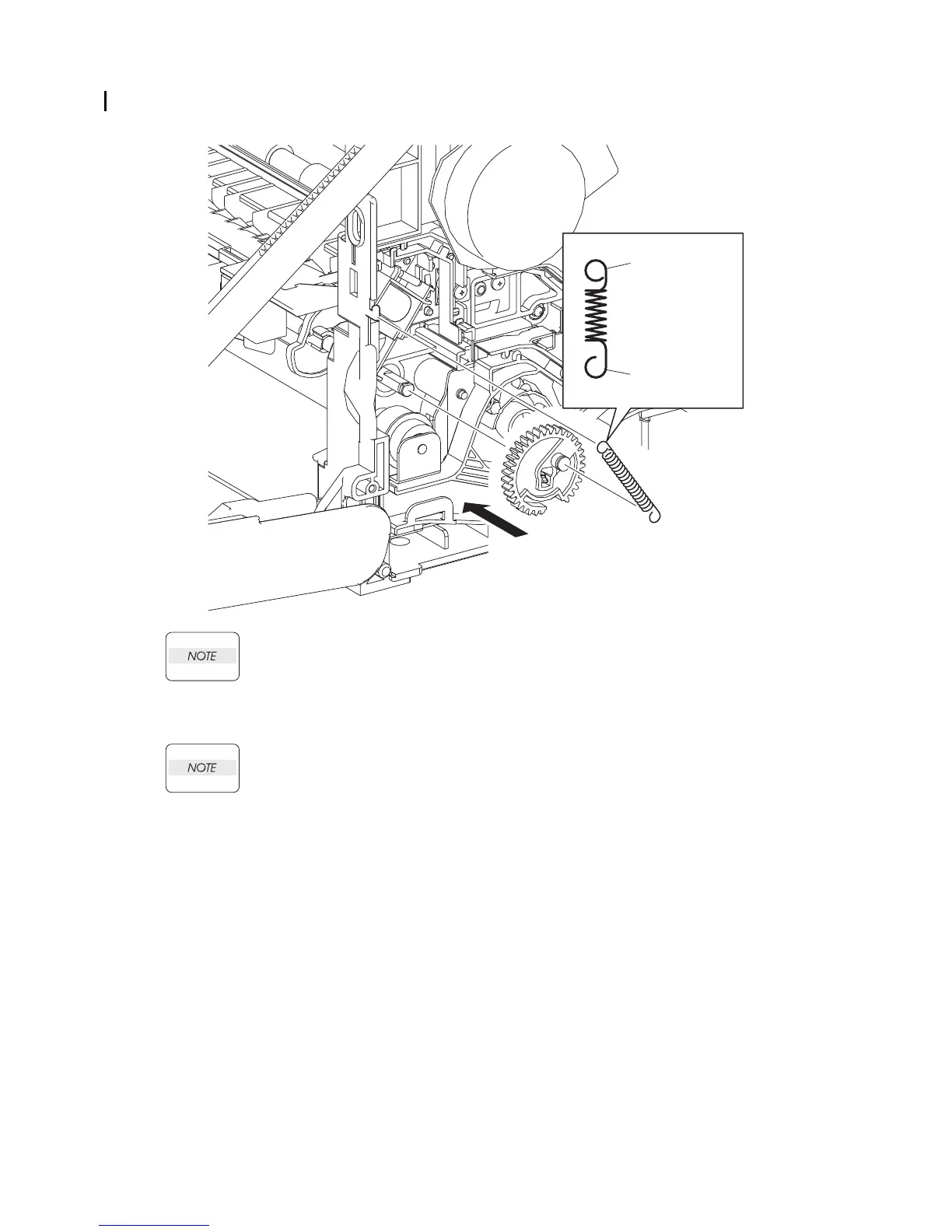

When carrying out the work shown below, it is easier to put the D-cut surface of the
SHAFT MSI on the top.
5) Replace the GEAR MSI to the SHAFT MSI and lock the hook on the GEAR MSI into the
groove on the SHAFT MSI.
When carrying out the work shown below, pay attention to attach the SPRING FEED MSI
in the right direction.
Attach the hyperelliptic side of the SPRING FEED MSI to the GEAR MSI.
6) Anchor the SPRING FEED MSI to the printer and GEAR MSI.
Go to the next replacement step:
Replacement 68 RIGHT COVER (PL13.1.9)
Printer Side
GEAR MSI Side
Kmy03077KB
5)
6)
To Next Page
