3 - 168
Chapter 3 Removal and Replacement Procedures (RRPs)
Version 1 2006.11.28

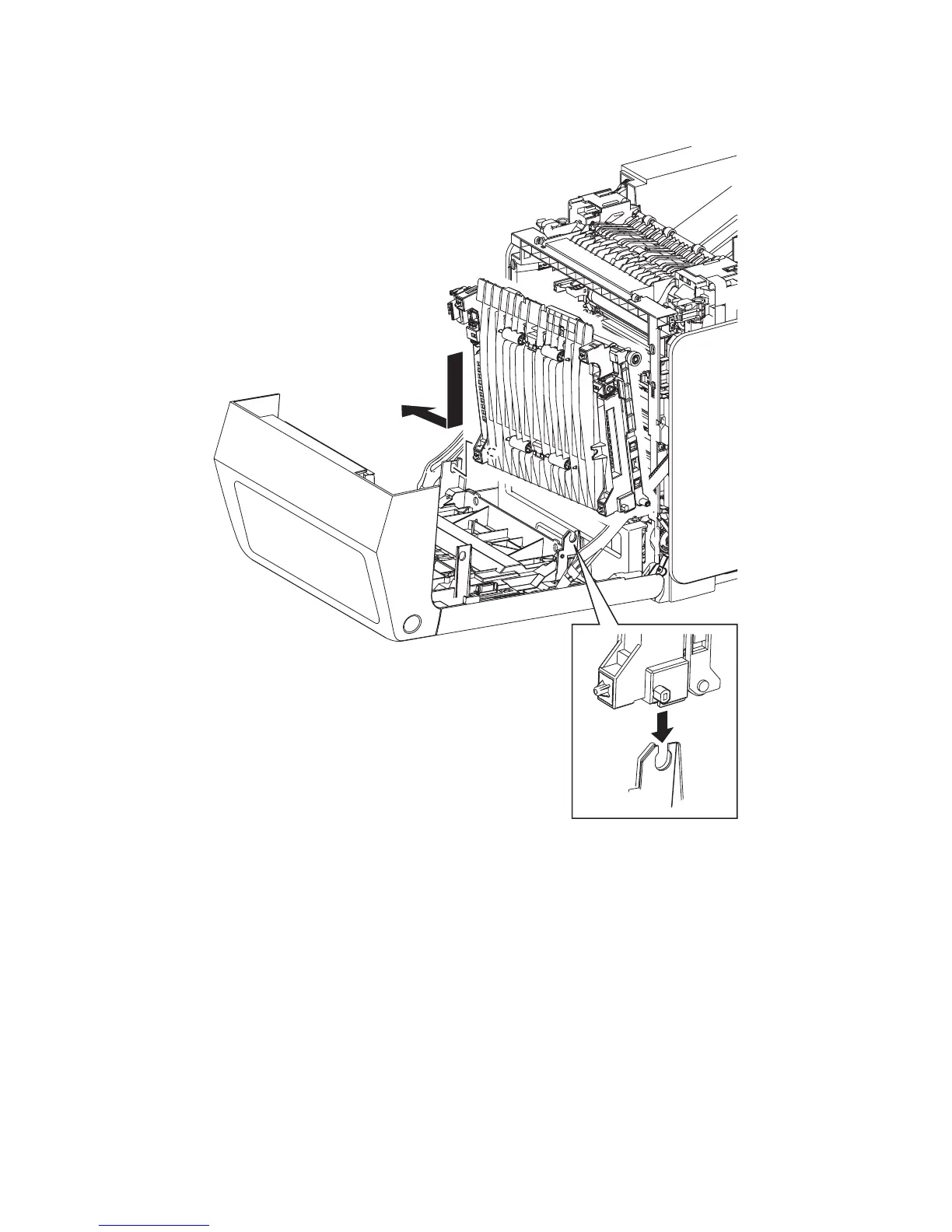

Replacement 42 TRANSFER BELT (PL4.1.1)
1) Replace the TRANSFER BELT by inserting the left side boss on the TRANSFER BELT into
the hole on the FRONT COVER and then inserting the right side boss on the TRANSFER
BELT into the U-shaped groove on the FRONT COVER.
Continues to the next page.
Gnb03065KA
1)-2
1)-1
To Next Page
