Dell 3115CN - Page 606

3 - 197
Chapter 3 Removal and Replacement Procedures (RRPs)
Version 1 2006.11.28

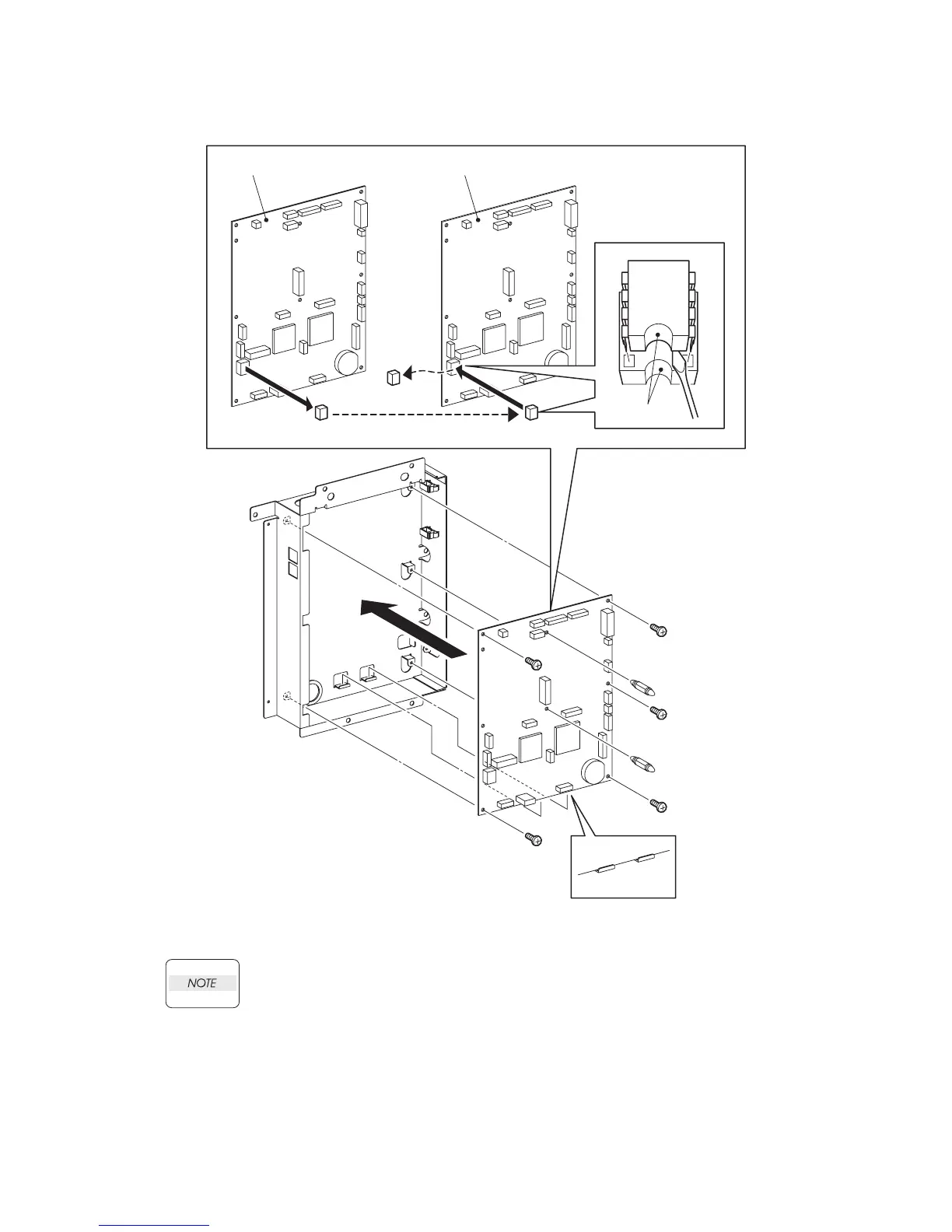

Replacement 58 PWBA HYUI (PL13.4.1)
4) Replace the two SUPPORT FAXs to the PWBA HYUI.
When performing the step described below, rest the under part of the PWBA HYUI upon
the two hooks of the BOX ASSY FAX AIO.
5) Replace the PWBA HYUI to the BOX ASSY FAX AIO
6) Secure the PWBA HYUI using the five screws (silver, 6mm).
NOTE
Gnb03202KA
OLD PWBA HYUI NEW PWBA HYUI
notch
5)
6)
6)
4)
4)
6)
6)
6)
1) 3)
2)
