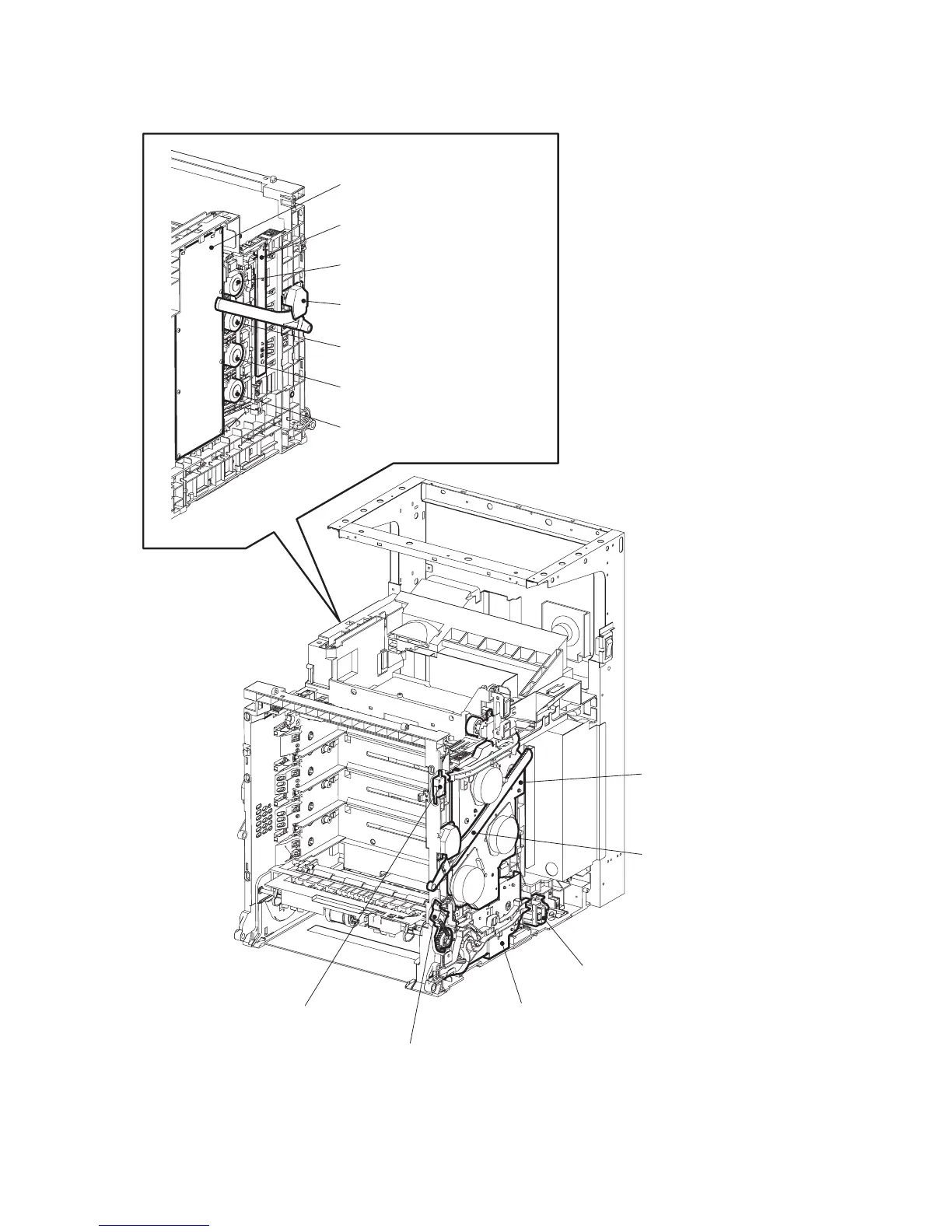

Chapter 5 Parts List
Version 2 2007.03.20
Gnb05104KC
FEED DRIVE ASSEMBLY
[Ref PL8.1.7]
MPF FEED SOLENOID
[Ref PL3.1.98]
PHOTOCONDUCTOR (PC) /
DEVELOPER (DEV) DRIVE
[Ref PL8.1.2]
RIGHT ARM ASSEMBLY
[Ref PL13.3.98]
SIZE SWITCH ASSEMBLY
[Ref PL7.1.18]
INTERLOCK SWITCH
[Ref PL13.5.3]
TONER DISPENSER (K)
[Ref PL5.1.12]
LEFT ARM ASSEMBLY
[Ref PL7.1.97]
TONER DISPENSER (C)
[Ref PL5.1.12]
TONER DISPENSER (M)
[Ref PL5.1.12]
TONER DISPENSER (Y)
[Ref PL5.1.12]
LED ASSEMBLY
[Ref PL5.1.15]
HIGH VOLTAGE POWER SUPPLY
[Ref PL5.1.17]
