Chapter 3
| Switch Chassis
How to Install the Switch on a Shelf or Desktop
– 28 –
How to Install the Switch on a Shelf or Desktop
The switch can be installed on any flat surface such as a desktop or shelf. To mount
the switch on a flat surface, follow these steps:
1. Attach the four adhesive feet to the bottom of the first switch.

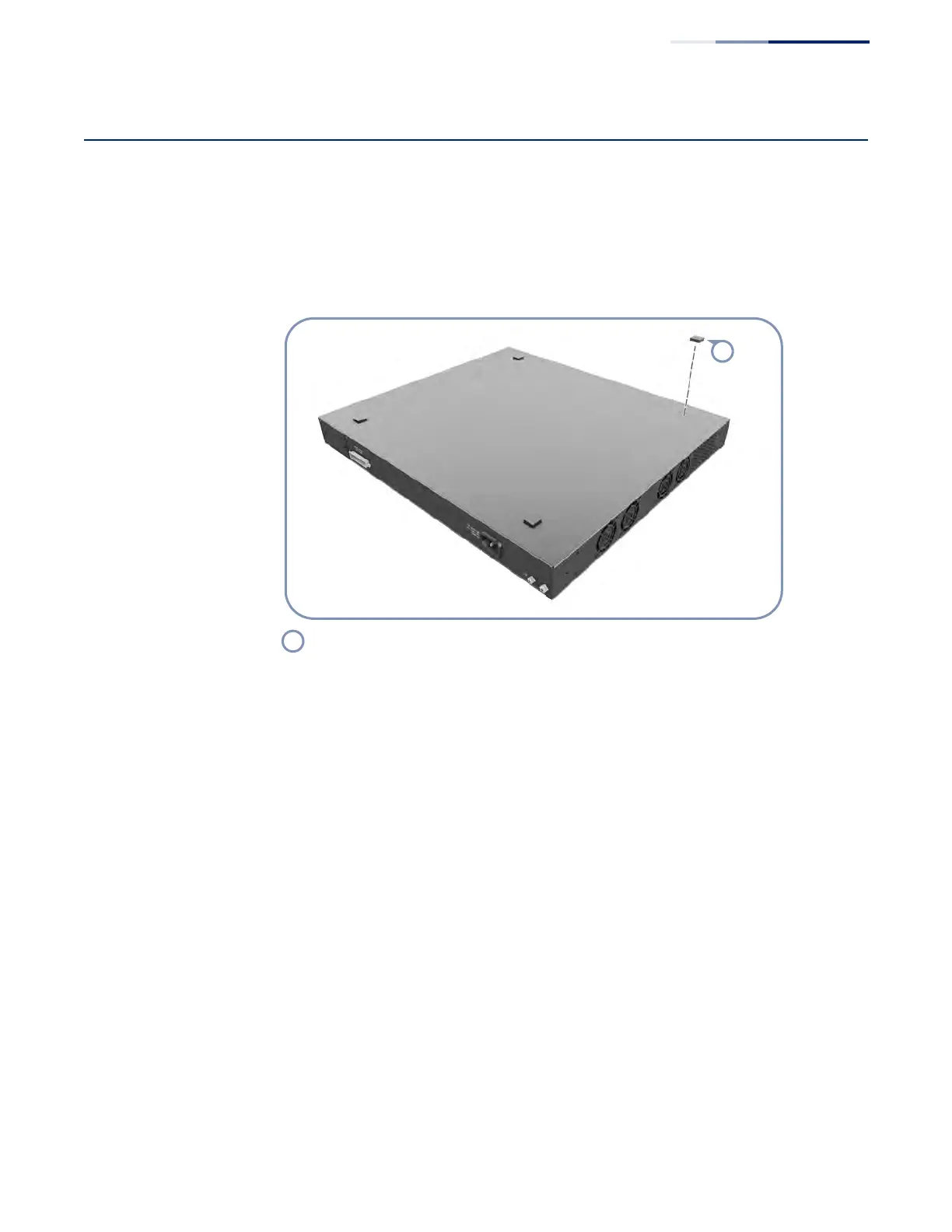

Figure 13: Attaching the Adhesive Feet
2. Set the device on a flat surface near an AC power source, making sure there are
at least two inches of space on all sides for proper airflow.
3. If installing a single switch only, go to “How to Connect to AC Power” on
page 34.
4. If installing multiple switches, attach four adhesive feet to each one. Place each
device squarely on top of the one below, in any order.
Adhesive Feet
To Next Page
