Chapter 3
| Switch Chassis
How to Install the Switch in a Rack
– 27 –

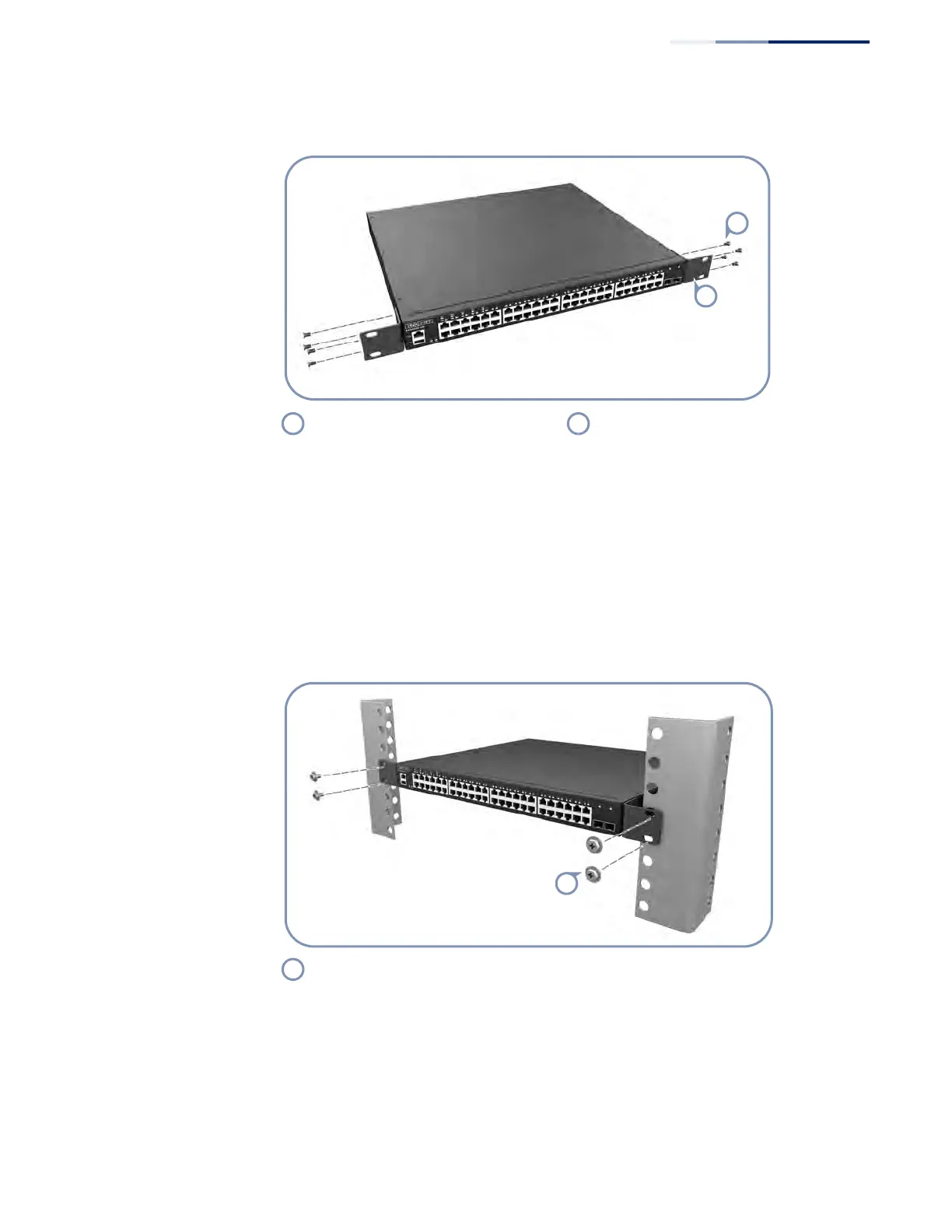

Figure 11: Attaching the Brackets
2. Following your rack plan, mark the holes in the rack where the switch will be
installed.
3. One person should lift the switch into the rack so that it is aligned with the
marked holes.
4. The second person should secure the switch in the rack, using four rack-
mounting screws (not provided).
Figure 12: Installing the Switch in a Rack
5. If installing a single switch only, go to “Power and Grounding” on page 31.
6. If installing multiple switches, repeat steps 1 to 4 to mount the switches
following your rack plan.
Bracket Screws Rack Mounting Bracket
Rack Mount Screws
To Next Page
