GigaDevice Semiconductor GD32VF103 - Figure 15-16. Timing Chart of EAPWM

GD32VF103 User Manual
237

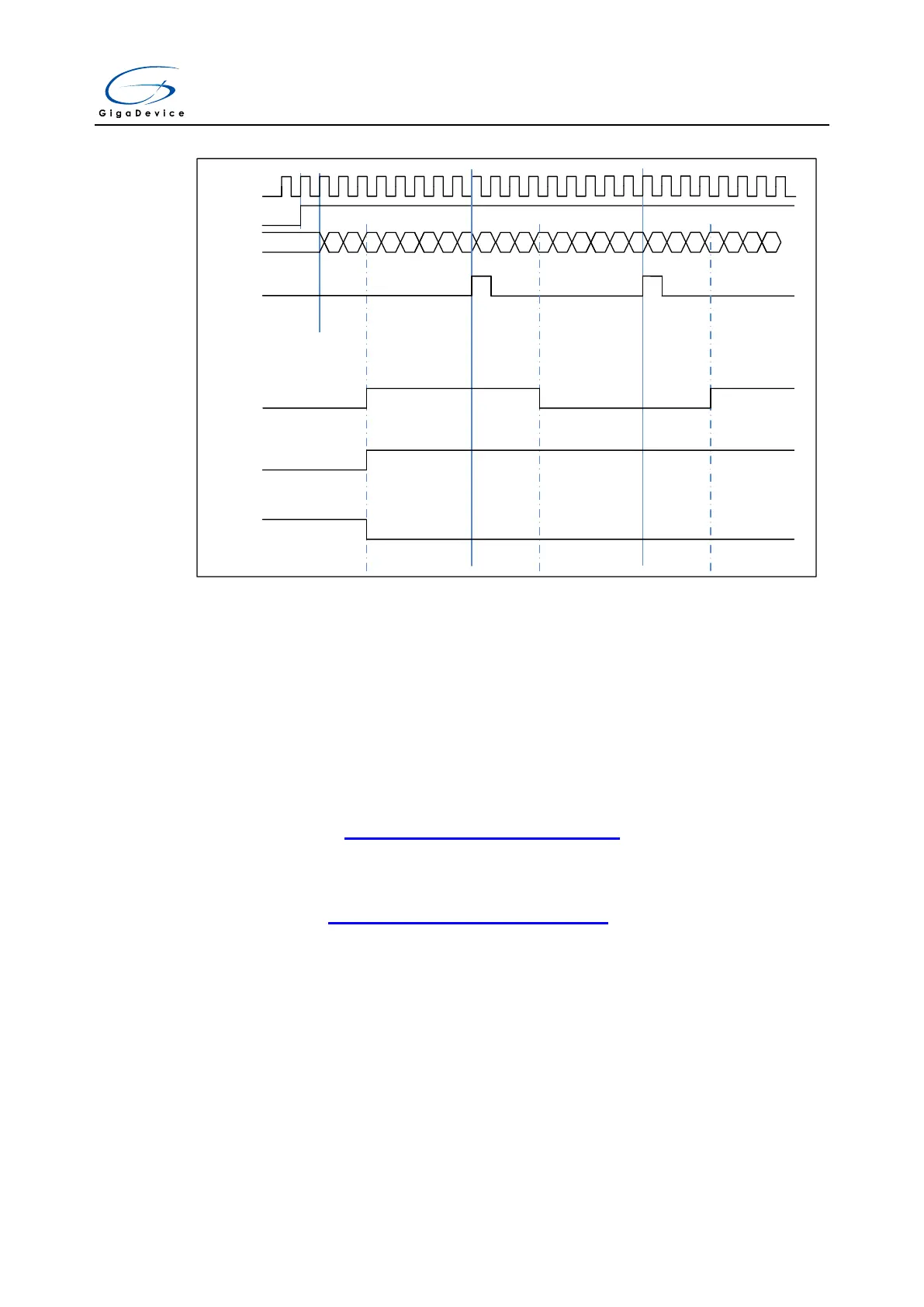

Figure 15-15. Output-compare in three modes
CEN
CNT_REG
00 01 02 03 04 05
….
62 63
Overflow
match toggle
CNT_CLK
OxCPRE
00 01 02 03 04 05
….
62 63
01 02 03 04 05
….
00
match set
match clear
OxCPRE
OxCPRE
PWM mode
In the PWM output mode (by setting the CHxCOMCTL bit to 3’b110 (PWM mode 0) or to 3’b
111(PWM mode 1)), the channel can generate PWM waveform according to the
TIMERx_CAR registers and TIMERx_CHxCV registers.
Based on the counter mode, PWM can also be divided into EAPWM (Edge-aligned PWM)
and CAPWM (Center-aligned PWM).
The EAPWM’s period is determined by TIMERx_CAR and the duty cycle is determined
by TIMERx_CHxCV. Figure 15-16. Timing chart of EAPWM shows the EAPWM output and
interrupts waveform.
The CAPWM’s period is determined by 2*TIMERx_CAR, the duty cycle is determined by
2*TIMERx_CHxCV.Figure 15-17. Timing chart of CAPWM shows the CAPWM output and
interrupts waveform.
In up counting mode, if the value of TIMERx_CHxCV is greater than the value of
TIMERx_CAR, the output will be always inactive in PWM mode 0 (CHxCOMCTL=3’b110).
And if the value of TIMERx_CHxCV is greater than the value of TIMERx_CAR, the output will
be always active in PWM mode 1 (CHxCOMCTL=3’b111).
